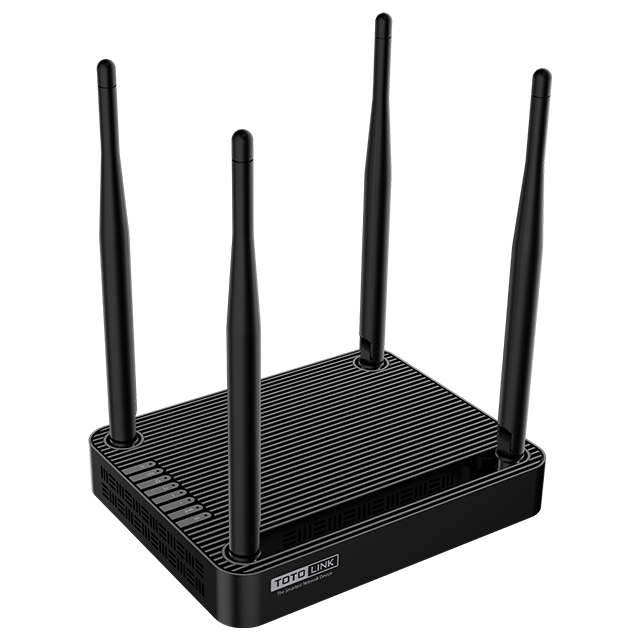

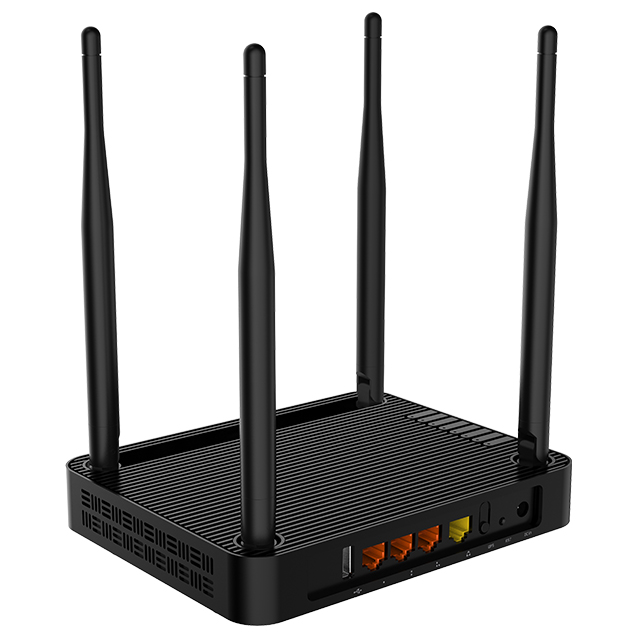

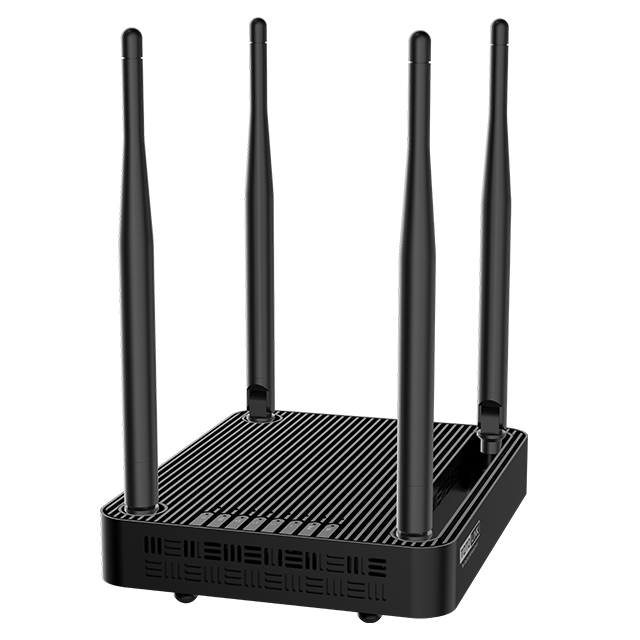

Q3


- Complies with the IEEE 802.11ac Wave2 Wi-Fi standard.

- Simultaneous 867Mbps on 5GHz and 300Mbps on 2.4GHz for a total of 1167Mbps.

- Middle power design on both bands is perfect for long-distance wireless transmission.

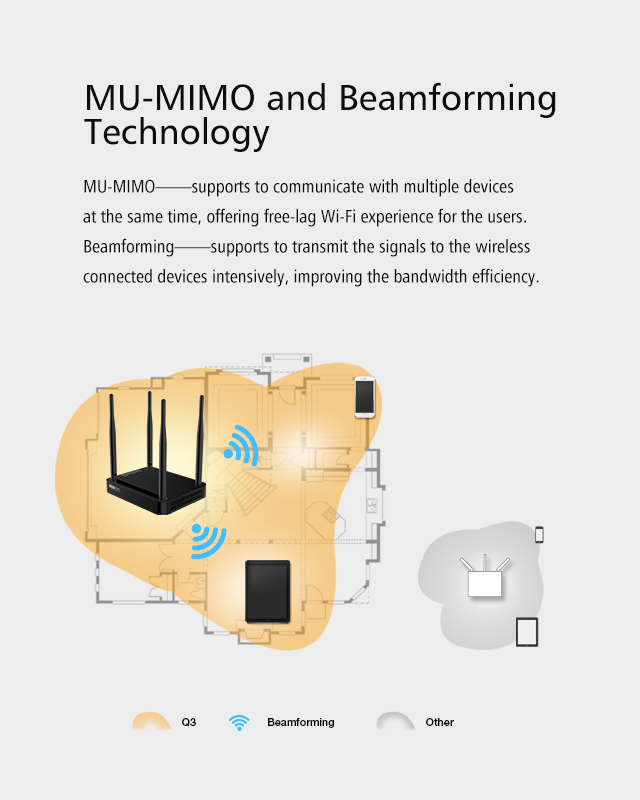

- MU-MIMO technology allows to transfer data to multiple devices at the same time.

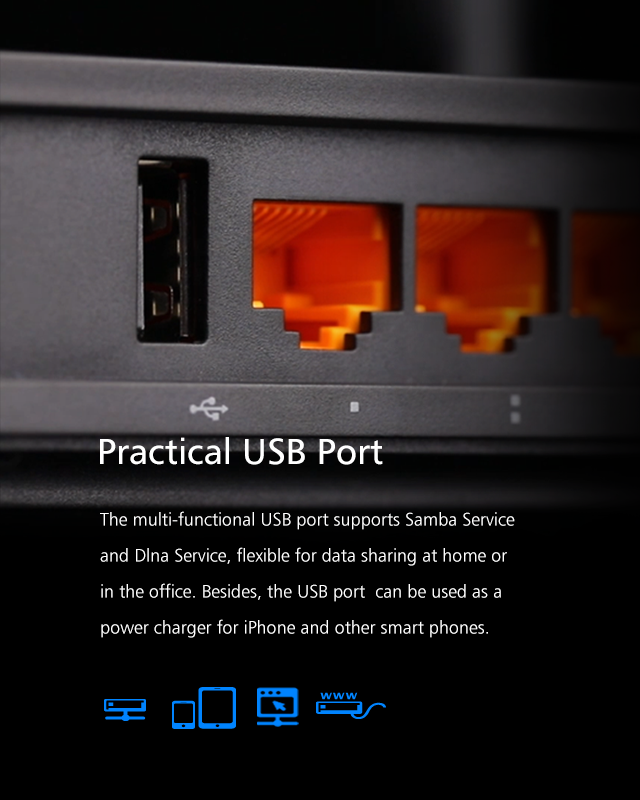

- USB port supports to share your files easily and charge your other devices.

- Four external 5dBi fixed antennas is perfect for long-distance wireless transmission.

- Beamforming technology improves directional signal transmission, improving the bandwidth efficiency.

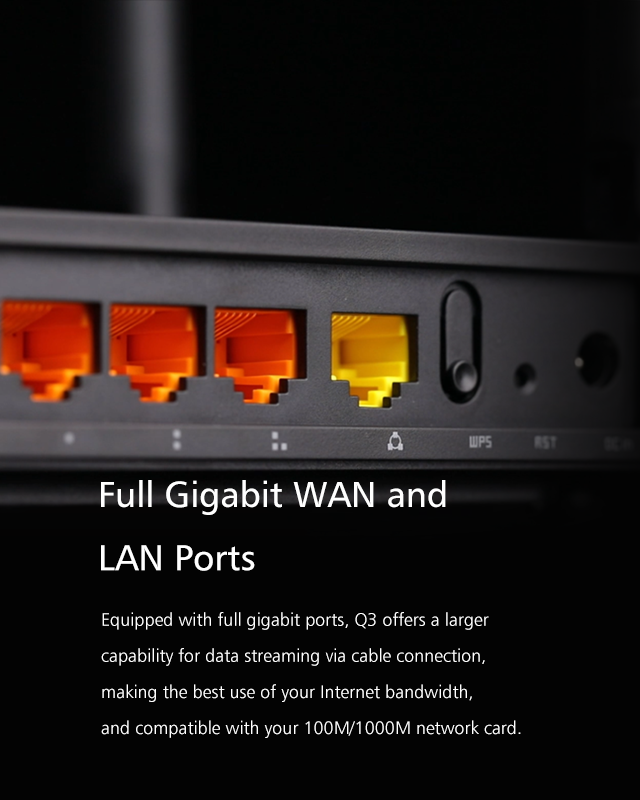

- Full gigabit ports offer larger capability for data forwarding via cable connection

- Supports DHCP, Static IP, PPPoE, PPTP and L2TP broadband functions.

- Provides 64/128-bit WEP, WPA, WPA2 and WPA-PSK/WPA2-PSK security.

- Connects to a secure network easily by using WPS.

- QoS: Bandwidth Control based on IP address.

- Supports IP/Port filtering, MAC filtering, URL filtering and Port Forwarding.

- Universal Repeater and WDS function for easy Wi-Fi extension.

- Multi-SSID function enables users to create multiple wireless networks for different groups.

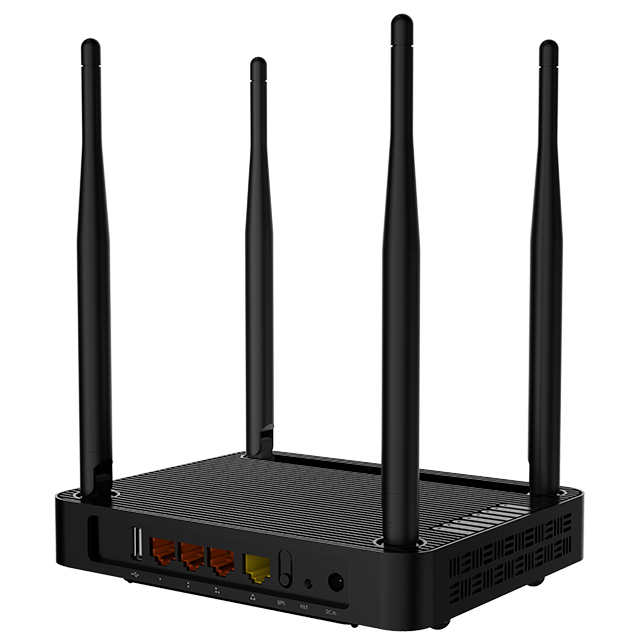

Hardware

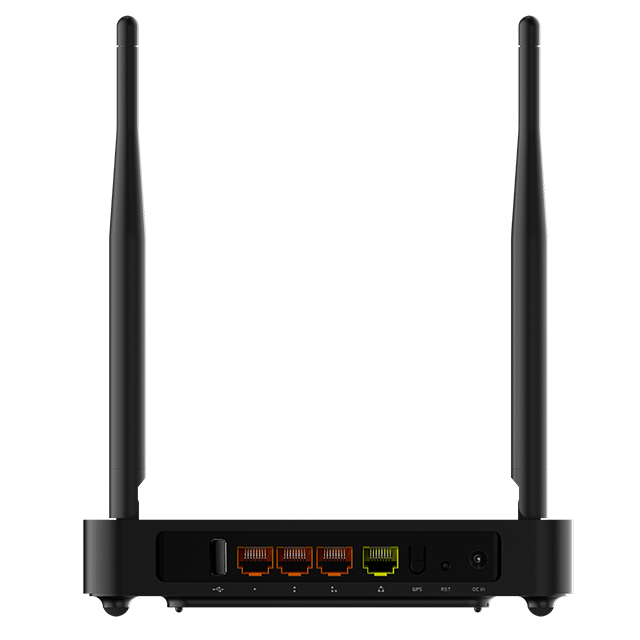

Interface

- 3 * 1000Mbps LAN Ports

- 1 * 1000Mbps WAN Port

- USB 2.0

- DC Power Port

Power Supply -12 VDC / 1.5A
Button - 1 * RST, 1* WPS
LED Indicator

1 * CPU

- 1 * Power

- 1 * 2.4GWireless

- 1 * 5GWireless

- 3 * LAN

- 1 * WAN

- 1 * USB2.0

Antenna - 4* 5dBi fixed antennas

Dimensions (L x W x H)

- 174 X 137.5 X 33mm (not including antennas)


Wireless

Standards

- IEEE 802.11ac,

- IEEE 802.11n,

- IEEE 802.11g,

- IEEE 802.11b,

- IEEE 802.11a

RF Frequency

- 2.4~2.4835GHz

- 5.18~5.825GHz

Data Rate

- 2.4GHz: Up to 300Mbps

- 5GHz: Up to 867Mbps

EIRP

- 2.4GHz < 20dBm

- 5GHz < 20dBm

Wireless Security

- 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Reception Sensitivity - 2.4G:11b 11M:-81dBm@8% PER

           11g 54M:-68dBm@10% PER

           11n HT20 MCS7:-65dBm@10% PER

                  HT40 MCS7:-62dBm@10% PER


- 5G: 11a 54M:-68dBm@10% PER

         11n HT20 MCS7:-65dBm@10% PER

                HT40 MCS7:-62dBm@10% PER

         11ac VHT80 MCS9:-51dBm@10% PER


Software

Basic Setting

- Status Summary

- Internet Setup

- Wireless Setup

- Firmware Upgrade

Network

- Internet Setup

- LAN Setup

- DHCP Server Setup

Wireless

- Wireless Setup

- Wireless Multi-bridge

- MAC Authentication

NAT/Routing

- Port Forwarding

- Advanced NAT Setup

- Routing Table

Firewall

- Firewall

- Manage Access List

Utility

- VPN Setup

- DDNS

- WOL

- Host Scan

- Notice

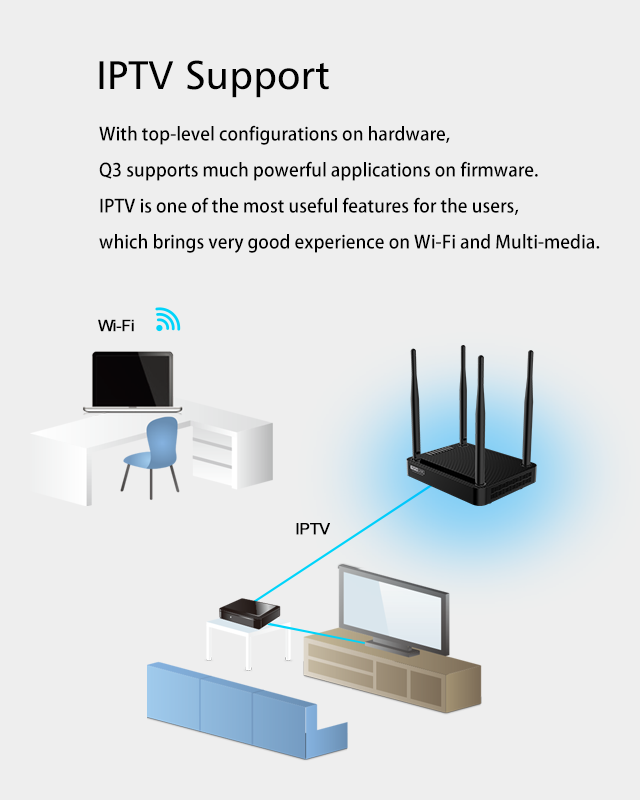

- IPTV

Traffic

- QoS Setup

- Connection Info

- Connection Control

- Wired Port Setup

- Switch Setup

System - System Log

- Admin Setup

- Firmware Upgrade

- Misc Setup

USB/Service - Device Management

- Service Setup

Others

Package Contents

- Q3 Router *1

- Power Adapter *1

- Ethernet Cable *1

- Quick Installation Guide *1

Environment

- Operating Temperature: 0℃~20 ℃ (32 ℉~122℉)

- Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)

- Operating Humidity: 10%~90% non-condensing

- Storage Humidity: 5%~90% non-condensing
