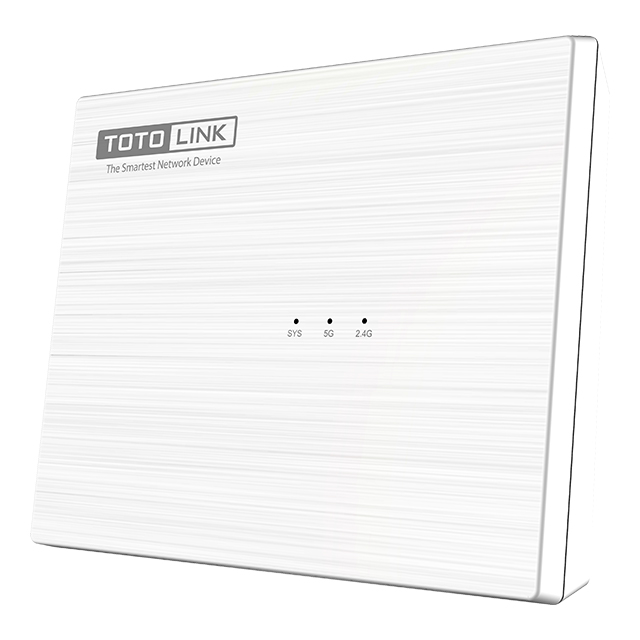

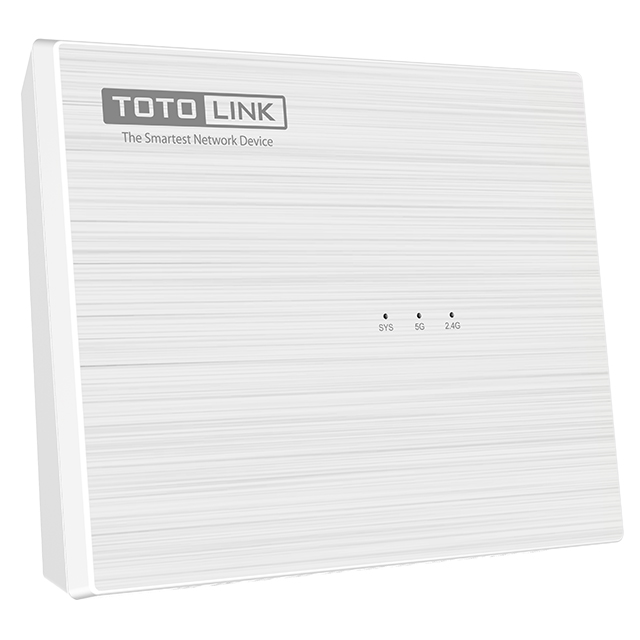

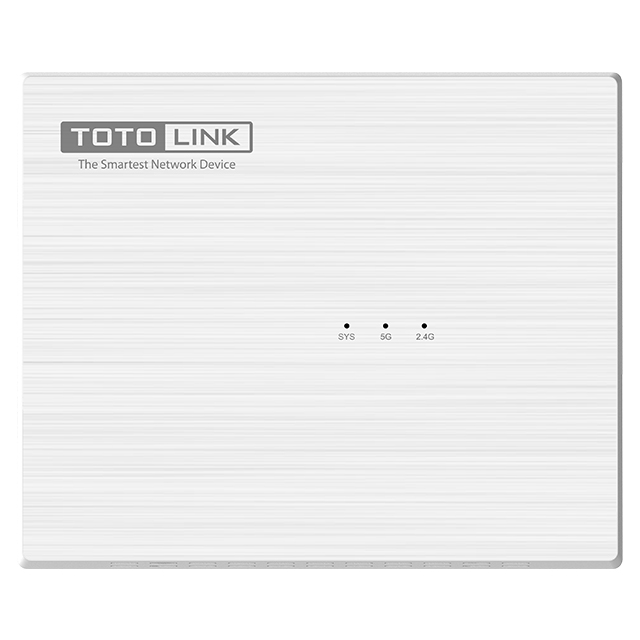

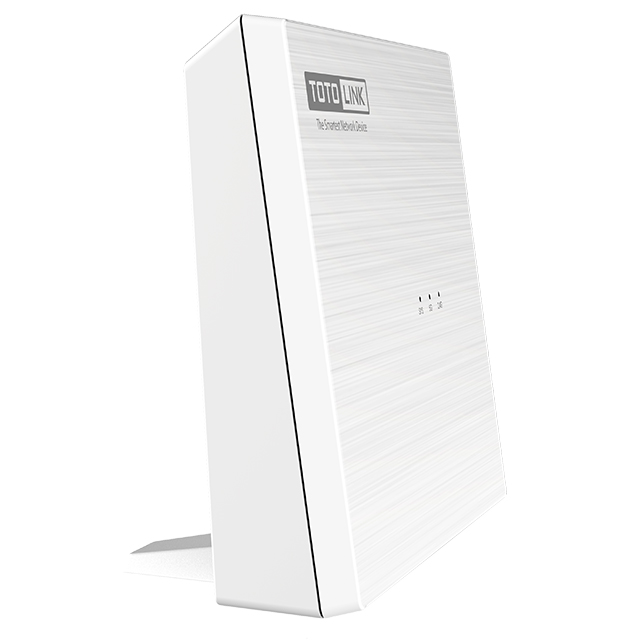

A830R


- Complies with the IEEE 802.11ac standards.

- 1167Mbps in total on dual band, 867Mbps on 5GHz and 300Mbps on 2.4GHz.

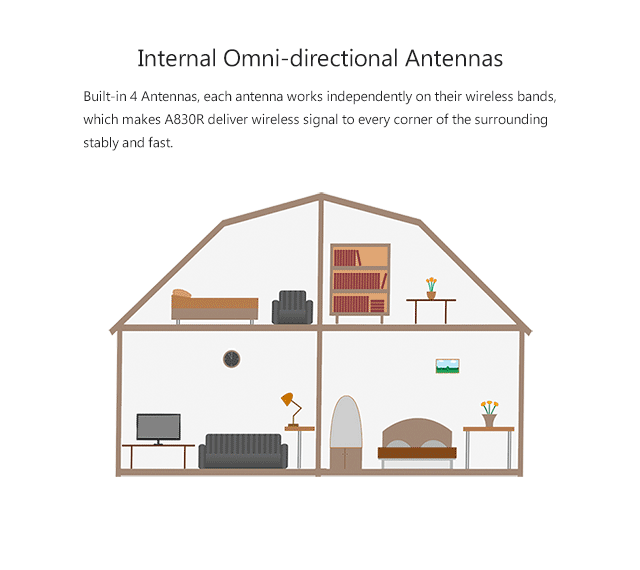

- Four internal Wi-Fi antennas.

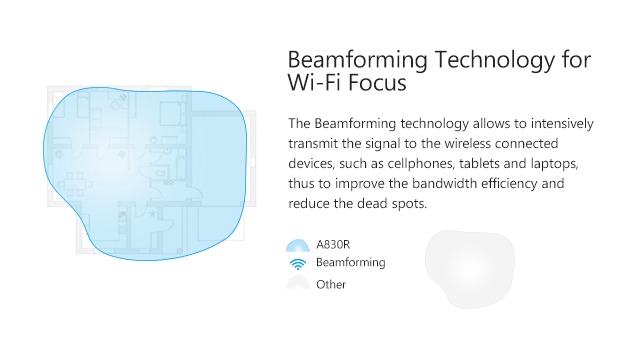

- Beamforming technology allows to intensively transmit the signal to the other wireless connected terminals.

- Supports DHCP, Static IP, PPPoE connection mode.

- Provides 64/128-bit WEP, WPA, and WPA2 encryption.

- QoS function allows to change the bandwidth for different terminals via IP address.

- Supports IP address filtering, port filtering, MAC filtering, URL filtering and port forwarding.

- Universal Repeater function for easy Wi-Fi extension.

- Multiple SSIDs allows to create different SSIDs for different groups, better for Internet access management.

- Supports IPTV and other internet services.

- Easy setup with smartphone UI simplifies the basic settings.

Hardware

Interface

- 4 *100Mbps LAN Ports

- 1 *100Mbps WAN Port

Power Supply

- 9VDC/0.8A

Button

- 1 *RST/WPS Button

LED Indicator

- 1 *SYS

- 1*2.4G

- 1*5G

- 1 *WAN

- 4 *LAN

Antenna

- 2 * Internal antennas (2.4GHz)

- 2 * Internal antennas (5GHz)

Dimensions (L x W x H)

- 155 x 68 x 125mm



Wireless

Standards

- IEEE 802.11ac,

- IEEE 802.11a,

- IEEE 802.11b,

- IEEE 802.11g ,

- IEEE 802.11n

RF Frequency

- 2.4GHz/5GH

Data Rate

- 2.4GHz: Up to 300Mbps

- 5GHz: Up to 867Mbps

EIRP

- 2.4GHz < 20dBm

- 5GHz < 20dBm

Wireless Security - 64/128-bit WEP, WPA and WPA2
Reception Sensiticity

- 2.4G:11b 11M:-81dBm@8% PER

           11g 54M:-68dBm@10% PER

           11n HT20 MCS7:-65dBm@10% PER

                  HT40 MCS7:-62dBm@10% PER


- 5G: 11a 54M:-68dBm@10% PER

         11n HT20 MCS7:-65dBm@10% PER

                HT40 MCS7:-62dBm@10% PER

         11ac VHT80 MCS9:-51dBm@10% PER





Software

Operation Mode

- Gateway Mode

- Bridge Mode

- Repeater Mode

- WISP Mode

Network

- Static DHCP Setting,

- IPTV

WAN Type - DHCP/Static IP/PPPoE/PPTP/L2TP
Wireless Functions

- Multiple SSIDs,

- MAC Authentication,

- WDS,

- WPS

Schedule

- Reboot Schedule

- Wireless Schedule

QoS

- QoS Setup,

- Connect Limit Control

Firewall

- IP/Port Filtering,

- MAC Filtering,

- URL Filtering,

-  Port Forwarding,

- VPN Passthrough,

- DMZ

Management

- Administrator Setting,

- Time Setting,

- DDNS,

- Remote Management,

- UPnP,

- Upgrade Firmware,

- System Configuration,

- System Log, and more



Others

Package Contents

- A830R Wireless Router *1

- Power Adapter *1

- Ethernet Cable *1

- Quick Installation Guide *1

Environment

- Operating Temperature: 0℃~50 ℃ (32 ℉~122℉)

- Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)

- Operating Humidity: 10%~90% non-condensing

- Storage Humidity: 5%~90% non-condensing







No

Title

Views
1

A950RG A3000RU Repeater Settings

85

    Application introduction

    Repeater Mode, you can extend the superior Wi-Fi signal by Repeater setting function under the Wireless column to increase the coverage of the wireless signal.

   This document applies to: A800R, A810R, A830R, A3100R, T10, A950RG, A3000RU


    Diagram


    Preparation

   ● Before configuration, make sure that both A Router and B Router are powered on.

   ● make sure you know the SSID and password for A router

   ● 2.4G and 5G, you can only choose one for Repeater

   ● move the B router closer to the A router to find the B routing signals better for fast repeater.


    Set up steps

STEP-1 B-Router Wireless Setup

You need to enter the settings page of the router B, then follow the steps illustrated.

   Set 2.4G network ->Set 5G network ->Click the Apply button



STEP-2 B-Router Repeater Setup

Enter the Advanced Setup page of the router B, then follow the steps illustrated.

Click Operation Mode>Select Repeater Mode->Click Next button

In next page, you should click Scan 2.4G or Scan 5G

Choose the A-Router SSID you need to make the Repeater

Note: This article set to A router as an example

Enter the password for the Repeater router





STEP-3 B Router Position Display

Move the Router B to a different location for a best Wi-Fi access.


    FAQ Common problem

Q1: How to log in to the management page in Repeater mode?

1. Assigned manually IP address 192.168.0.x (“x” range from 2 to 253), the Subnet Mask is 255.255.255.0 and Gateway is 192.168.0.1.

Note: Default gateway is 192.168.0.1.


1. Enter 192.168.0.1 into the address bar of your browser. Log in the settings interface.
