- Complies with IEEE 802.11n/g/b standards for 2.4GHz Wireless LAN.
- Supports 802.3af/at PoE power supply to simplify the deployment.
- Qualcomm Atheros chipsets ensure high performance and stable Wi-Fi.
- Up to 300Mbps data rate for Wi-Fi network.
- High power output for long WiFi range.
- Supports a maximum of 64 clients simultaneously.
- WLAN Controller for centralized management of AP.
- Three Wi-Fi networks(SSIDs) available for access management.
- Provides 64/128-bit WEP, WPA, WPA2 and WPA/WPA2 (TKIP+AES) security.
- Reboot Schedule provides better stability.

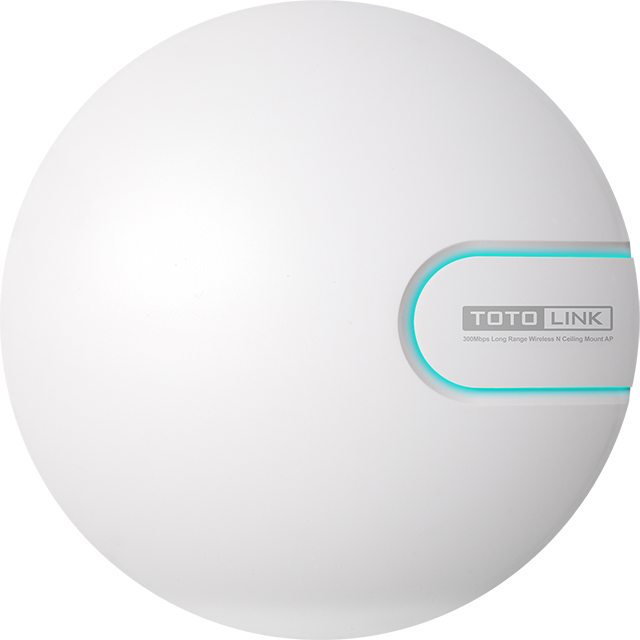

- More clear working status with three colors of LED.
Hardware | |
|---|---|
| Interface | - 1 *100BaseTX (Auto MDI/MDIX) LAN Port |
Button |
- 1 *Reset button |
Power Supply |
- IEEE 802.3af/at PoE Power Supply |
Antenna |
- 2 * Internal antennas |
LED |
- 1 *System (Three Colors) |
Dimensions (D x H) |
- 200 x 35 mm |
Wireless | |
|---|---|
| Standards |
- IEEE 802.11n, - IEEE 802.11g, - IEEE 802.11b |
| RF Frequency | - 2.4~2.4835GHz |
| Data Rate |
- 802. 11n: up to 300Mbps - 802.11g: up to 54Mbps (dynamic) - 802.11b: up to11Mbps (dynamic) |
| EIRP | - < 27dBm |
Wireless Security |
- 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES) |
|
Reception Sensitivity
|
- 11b 11M: -85dBm@10% PER - 11g 54M: -72dB@10% PER - 11n HT20 MCS7: -67dB@10% PER - 11n HT40 MCS7: -64dB@10% PER |
Software | |
|---|---|
Operation Mode |
- Bridge Mode |
Network |
- LAN Status - LAN Settings |
| Cloud AC Bind | - Cloud AC Bind |
Wireless |
- Wireless Status - Basic Setting - Multiple APs - MAC Authentication - WDS Setting - Advanced Setting |
|
Management
|
- System Log - Administrator Setup - Firmware Upgrade - System Time - Configuration backup/restore - Misc Setup |
| Others | |
|---|---|
|
Package Contents
|
- CA300-POE Wireless Ceiling Mount AP*1 - Ethernet Cable *1 - Quick Installation Guide *1 |
Environment |
- Operating Temperature: 0℃~50℃ (32 ℉~122℉) - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) - Operating Humidity: 10%~90% non-condensing - Storage Humidity: 5%~90% non-condensing |
