F1

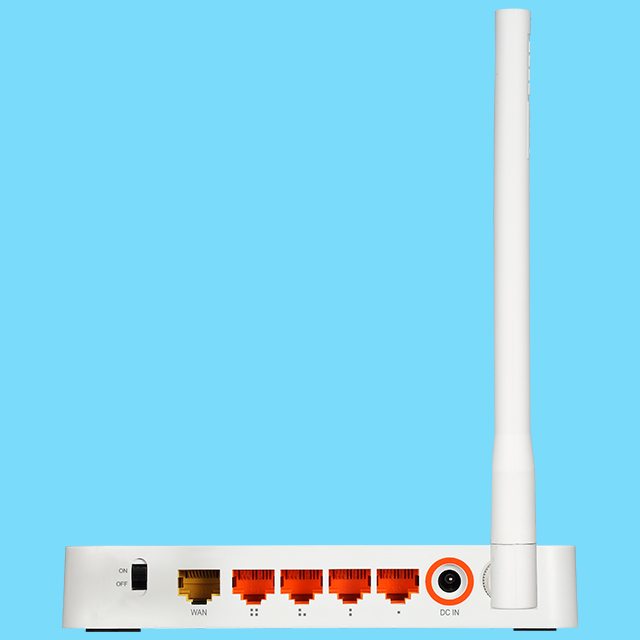

F1 is a wireless N Fiber Router with one high gain antenna. It allows users to access Internet by DHCP/PPPoE/Static IP/PPTP/L2TP and can deliver up to 150Mbps wireless data rate. With the fiber-optic WAN port, this device makes user access internet in an easy, enjoyable and secure way better than ever. Besides, it is good for simultaneously IPTV experience and Internet surfing via VLAN function. So it is a high performance and cost-effective solution for users connecting Internet by fiber-optic.



High-speed Fiber Optic Experience
The fiber-optic WAN port allows high speed Internet access, ideal for online surfing, video streaming and network gaming.



Outstanding Bandwidth Control with QoS
Intelligent QoS efficiently improves the bandwidth utilization and is better for network priority control.



VLAN for Amazing IPTV Experience
VLAN supported can effectively satisfy user’s individual requirement that if one of your family members want to watch IPTV but others want to surf Internet.



Multiple APs for Better Access Control
Multiple APs function is designed for users who want to set up extra wireless networks for guests or friends with better access control.


- Complies with IEEE 802.11n/g/b standards for 2.4GHz Wireless LAN.

- Up to 150Mbps data rate for Wi-Fi network.

- One fiber WAN port for fiber optical network connection.

- Supports PPPoE, DHCP, Static IP, PPTP and L2TP broadband functions.

- Provides 64/128-bit WEP, WPA, WPA2 and WPA/WPA2 (TKIP+AES) security.

- Multiple APs function allows users to add more SSIDs accordingly.

- The IP, MAC, Port and URL filtering makes access and time control more flexibly.

- Supports VPN Pass-Through based on IPSec/PPTP/L2TP/IPv6.

- Repeater function expands the wireless coverage and allows more terminals to access Internet.

- VLAN function makes the network management more secure and efficient.

- QoS function allocates network bandwidth reasonably.

Hardware
Interface

- 4 * 10/100Mbps LAN Ports

- 1 * 10/100Mbps Fiber WAN Port

Power Supply - 9 VDC / 0.8A
Button

- RST/WPS Button

- Power ON/OFF Button

LED Indicators

- 1 * Power,

- 1 * CPU

- 1 * Wireless

- 1 * WAN

- 4 * LAN

Antenna

- 1 * 5dBi fixed antenna

Dimensions (L x W x H)

- 6.0 x 3.7 x 0.9 In (152 x 94 x 24mm)

Wireless

Standards

- IEEE 802.11b

- IEEE 802.11g

- IEEE 802.11n

RF Frequency

- 2.4~2.4835GHz
Data Rate

- 802. 11n: Up to 150Mbps

- 802.11g: Up to 54Mbps (dynamic)

- 802.11b: Up to 11Mbps (dynamic)

EIRP

- < 20dBm

Wireless Security - 64/128-bit WEP, WPA/WPA2 (AES/TKIP)
Reception Sensitivity

- 135M: -65 dBm@10% PER

- 54M: -68 dBm@10% PER

- 11M: -85 dBm@8% PER

- 6M: -88 dBm@10% PER

- 1M: -90 dBm@8% PER

Software

Operation Mode


- Router Mode

- Repeater Mode

- AP Mode

- WISP Mode

WAN Type - DHCP/Static IP/PPPoE(Dual access)/PPTP(Dual access) /L2TP(Dual access)
IPv6 Network

- WAN Setting,

- LAN Setting,

- RADVD for IPv6,

- IPv6 Tunnel to IPv4

Wireless Functions

- Multiple SSIDs

- MAC Authentication,

- Universal Repeater,

- WDS,

- WPS,

- IPTV

Schedule

- Reboot Schedule

- Wireless Schedule

Firewall

- SPI Firewall,

- MAC Filtering,

- IP Filtering,

- Port Filtering,

- URL Filtering

- Port Forwarding,

- DMZ

- NAT Mapping

Management

- QoS,

- TR-069 config,

- DDNS,

- SNMP,

- DoS,

- Notice Setting,

- Access Control,

- Refresh Buffer Memory etc.

Others
Package Contents

- F1 Wireless Router *1

- Power Adapter *1

- Ethernet Cable *1

- Quick Installation Guide *1

Environment

- Operating Temperature: 0℃~40℃ (32 ℉~104℉)

- Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)

- Operating Humidity: 10%~90% non-condensing

- Storage Humidity: 5%~90% non-condensing

No

Title

Views
1

How to setup TOTOLINK Router on App

468


     It is suitable for: TOTOLINK router

Application introduction:

This articles Applies to wireless router that’s compatible with TOTOLINK App. This article will take A720R as an example.



 Set up steps

STEP-1: Follow the steps below to connect your router.


STEP-2: Connect your smart phone to TOTOLINK Wi-Fi. The default wireless network name of TOTOLINK wireless router are printed on the bottom label.


STEP-3: Launch the Tether App on your phone.


STEP-4: Select your TOTOLINK wireless router from device list.Then Enter admin for the password and then click LOGIN.


STEP-5: Log in to Quick Setup.(Auto jump Quick Setup is only Applicable for the first connection setup)


STEP-6: Quick Setup.



STEP-7: More features: Click Application or Tools.

 图片68.pngSTEP-8: Binding router, remote management.


2

How to use the router's WPS button?

188

     It is suitable for: All TOTOLINK routers

Application introduction

This article describes how to quickly make a wireless connection through the router's WPS button.

Diagram


Set up steps

STEP-1:

Please make sure your router has WPS button before setting.

Please make sure your wireless client supports WPS functionality before setting.



STEP-2:

Press WPS button on the router for 1s, WPS enabled. There are two types of wireless router WPS buttons: RST/WPS button and WPS button. As shown below.

2-1. RST/WPS button


2-2. WPS button:


Note: If router is a RST/WPS button, no more than 5s, router will be reset to factory defaults if you press it for more than 5s.



STEP-3:

After pressing the WPS button, use wireless client to connect to the router WIFI signal. Using Computer and Mobile phone wireless connection as an example. As shown below.

3-1. Computer wireless connection:


3-2. Mobile phone  wireless connection:


3

How to login to router by manually configuring IP?

343

     It is suitable for: All TOTOLINK routers

Set up steps

STEP-1: Connect your computer

Connect to the router's LAN port with a network cable from a computer network port (or to search for and connect the  router's wireless signal).



STEP-2: Assigned manually IP Address

2-1. If the router’s LAN IP address is 192.168.1.1, please type in IP address 192.168.1.x (“x” range from 2 to 254, the Subnet Mask is 255.255.255.0 and Gateway is 192.168.1.1.




2-2. If the router’s LAN IP address is 192.168.0.1, please type in IP address 192.168.0.x (“x” range from 2 to 254), the Subnet Mask is 255.255.255.0 and Gateway is 192.168.0.1.


STEP-3: Login to the TOTOLINK router in your browser. Take 192.168.0.1 as an example.


STEP-4: After setting up the router successfully, please select Obtain an IP address automatically and Obtain DNS Server address automatically.


Note: Your terminal device must choose to obtain an IP address automatically to access the network.

4

Introduction to the four Operation Mode of the router

262

     It is suitable for: All TOTOLINK routers

Application introduction

This article will introduce the difference between Router Mode, Repeater mode, AP mode, and WISP Mode.



 Set up steps

STEP-1: Router Mode(Gateway mode)

Router Mode, the device is supposed to connect to the internet via ADSL/Cable modem. The WAN type can be setup on WAN page, including PPPOE, DHCP client, Static IP.


STEP-2: Repeater mode

Repeater Mode, you can extend the superior Wi-Fi signal by Repeater setting function under the Wireless column to increase the coverage of the wireless signal.


STEP-3: AP mode(Bridge mode)

AP mode, the router acts as a wireless switch, you can transfer the superior's AP/Router wired signal into wireless signal.


STEP-4: WISP Mode

WISP Mode, all ethernet ports are bridged together and the wireless client will connect to ISP access point. The NAT is enabled and PCs in ethernet ports share the same IP to ISP through wireless LAN.




 FAQ Common problem

Q1: Can I log in to the TOTOLINK ID after setting the AP mode/Repeater mode?

A: TOTOLINK ID cannot be logged in after setting AP mode/Repeater mode.



Q2: How to enter the router management interface in AP mode/Repeater mode?

A: Refer to FAQ#How to login to router by manually configuring IP

5

What if the Router can't log in to the new Chrome?

167

     It is suitable for: All TOTOLINK Router

Application introduction

After entering the management address of the router in the address bar of Chrome browser, the page cannot be displayed after entering the management password, as shown below.

Note: Ensure that the login IP address you typed in the address bar is correct, as well as the login username and password.



Method One: login via PC

STEP-1: Change browser and clear browser cache

Try changing old version (before 72.0.3626.96) of Chrome browser or try other browser, such as Firefox, Internet Explorer, etc., and clear your browser cache. 2.png

Delete cookies on the web browser. Here we take Firefox for example.

Note: In general, the browser enters the management address of the router and error pops up. Please use this method first.


STEP-2: Enter 192.168.0.1 into the address bar of your browser. Log in the settings interface.

Note:The default access address varies depending on the actual situation. Please find it on the bottom label of the product.




 Method Two: login via tablet/Cellphone

STEP-1: Change browser and clear browser cache

Try other browser, such as Firefox, Opera, etc., and clear your browser cache.


STEP-2: Enter 192.168.0.1 into the address bar of your browser. Log in the settings interface.

Note:The default access address varies depending on the actual situation. Please find it on the bottom label of the product.


6

How to properly download upgrade firmware of router?

175

     It is suitable for: All TOTOLINK routers

 Preparation

Before downloading files. please confirm the hardware version ofyour device and choose the corresponiding firmware version to uparade.

Wrong firrmware version may damage your device and no warrante.


 Set up steps

STEP-1: Guide for Hardware Version

For most TOTOLINK routers, you can see two bar coded stickers at the front of the device, the character string started with Model No.(for example N300RT) and ended with Hardware Version (for example V2.0) is the serial number of your device. See below:


STEP-2:

Open browser, enter www.totolink.net. Download the required files.

For example, if your hardware version is V2.0 , please download V2 version.

Note: If the hardware version is V1, V1 will be hidden.




STEP-3:

Unzip the file, correct upgrade file name is suffixed with ”web” or “bin” (except for some special models)


7

How do I get the login address of my router

452

    It is suitable for:  All TOTOLINK Router


    Method One:

Check the label on the bottom of the router to get the login address of the router, as shown below.



   Method Two:

Obtain the login address of the router through the computer (take win10 system as an example).

STEP-1:

The computer connects to the wireless signal of the router. (The back sticker has the factory default wireless signal name)

STEP-2:

2-1. Click on wireless icon at the bottom right corner on the screen, Select Network & Internet settings.


2-2. Select the connected wireless network.


2-3. Select Details to check whether an IP address is obtained.



If the IPV4 address is 192.168.0.*, the default gateway of IPV4 is 192.168.0.1, indicating that the login address of the router is 192.168.0.1.

If the IPV4 address is 192.168.1.*, the default gateway of IPV4 is 192.168.1.1, indicating that the login address of the router is 192.168.1.1.

If the IP is not available, you can disconnect the signal and reconnect it. If it is still invalid, you can restore the router to the factory and check the IP address obtained after the connection signal.

Note: Before this, please confirm that your computer is selected to "acquire IP address automatically".



For the setting method of the computer automatically obtaining the IP address, refer to the following figure (take win10 system as an example).


Obtain the login address of the router through your mobile phone.

STEP-1: The wireless signal that the phone connects to the router. (The back sticker has the factory default wireless signal name)



STEP-2: Select your phone's wireless network settings to check if you have an IP address.


At this point, the IPV4 address is 192.168.0.*, and the IPV4 default gateway is 192.168.0.1, indicating that the router's login address is 192.168.0.1.



STEP-3: Enter 192.168.0.1 in the address bar of the mobile browser.


STEP-4: If you still can't enter, you can change the browser or a mobile phone or computer through the 192.168.0.1 login interface.



STEP-5: If the fourth step is invalid, the router can be reset.

Reset method:

1. Please make sure your router’s power is on regularly, then press the

RST button for about 10s.(The RESET pin should be held with a pointed object such as a paper clip or a pen tip)

2. Loosen the button until your router’s LED lights all flashing, then you

have reset your router to default settings.

8

What if I cannot log into the router's setup page

4057

 Application introduction

After entering the management address of the router in the address bar of the browser, the management page cannot be displayed, or the page cannot be displayed after entering the management password, as shown below.

Note: Ensure that the login IP address you typed in the address bar is correct, as well as the login username and password.


    It is suitable for:  All TOTOLINK Router

If you can’t login the web interface of TOTOLINK, it may be related to factors such as router, line, browser or computer. Please follow the steps below for detailed troubleshooting.


  Set up steps

STEP-1: Check line connection

The operating computer should be connected to the router and can be connected via a network cable or wirelessly.

Connect through the network cable: Operate the computer and connect to the LAN port of the router, and ensure that the indicator of the computer network cable interface and the corresponding interface of the router is on.

Wireless connection: The wireless terminal needs to connect to the router signal. When the factory setting is set, the router default Wi-Fi name and password are printed on the bottom label of the router.

Note: If the signal of the wireless router is not found, it is recommended to reset the router.

STEP-2: Check computer IP address

If the computer does not specify or obtain the correct IP address, it will be unable to log in to the management interface.

Be sure to set the IP address of the operating computer to be automatically obtained. Take the Windows 10 system wired network card as an example. For the setting method of the computer automatically obtaining the IP address, refer to the following figure.



STEP-3: Check login address

TOTOLINK router currently has three types of login addresses, and different router addresses may be different:

Management page address: itotolink.net or 192.168.0.1 or 192.168.1.1.

For the specific login address, please check the sticker at the bottom of the router, as shown below (take itotolink.net as an example).


After confirming the login address, open the browser, clear the address bar and enter the management address, press Enter, as shown below.


STEP-4: Check login password

If the password input box of the login management interface can be displayed, but the wrong password is entered, the management interface cannot be logged.

Our common default login password prompt box, as shown below.


Login prompt box

Default username

Default password


admin

(Lower case letters)

admin

(Lower case letters)

Note: If you forget the set or modified management password, you can only restore the factory settings.

STEP-5: Change your browser or computer

A. Change browser and clear browser cache

Try changing your browsers like Google Chrome, Firefox, Internet Explorer, etc., and clear your browser cache.

Delete cookies on the web browser. Here we take Google Chrome for example.

Note: In general, the browser enters the management address of the router and a 404 error pops up. Please use this method first.


B. Try to log in with your phone

If you are unable to log in using your computer, you can try to change another computer or use your mobile phone to log in to the management interface (using the mobile browser), as shown below, enter itotolink.net as an example.


STEP-6: Reset router

If you still cannot log into the router's setup page after troubleshooting according to the above methods, it is recommended to restore the factory settings. There are two types of wireless router reset buttons: RESET pin and RESET button. As shown below.


Reset method:

1. Please make sure your router’s power is on regularly, then press the

RST button for about 10s.(The RESET pin should be held with a pointed object such as a paper clip or a pen tip)

2. Loosen the button until your router’s LED lights all flashing, then you

have reset your router to default settings.

Note: Some wireless routers share a button with RESET.

9

How to manually set an IP address

941


     It is suitable for: All TOTOLINK routers


Application:This article will illustrate way to manually set an IP address on Windows 10/Mobile phone..


Manually set IP address on Windows 10

    Set up steps

1-1. Find the small computer icon in the lower right corner of your computer desktop1.png,click on “Network & Internet settings”.


1-2. Pop up the Network & Internet Center interface, click on “Change adapter options” under Related settings.


1-3. After open changing adapter options,find Ethernet,click and select Properties.(If you want to check the wireless IP address, find WLAN)


1-4. Select “Internet Protocol Version 4 (TCP/IPv4),click on “Properties”.


1-5. To manually set IP address, select “Use the following IP address”, set the IP address and subnet mask; Finally click on “ok”.Take the IP address 192.168.0.10 as an example.



1-6. When you don't need to set the IP address manually, Please select Obtain an IP address automatically and Obtain DNS Server address automatically.



Manually set IP address on Mobile phone











    Set up steps

1-1. Click Settings on the screen-> Wireless Network (or Wi-Fi), click on the exclamation mark behind the wireless signal.



Note: Before manually set IP address , make sure the wireless terminal is currently connected or is connecting to the wireless signal.

1-2. Click Static, enter the corresponding parameters in the IP address, gateway, and network mask positions, and click Save. Take the IP address 192.168.0.10 as an example.




1-3. When you don't need to set the IP address manually, Please turn off static IP.




10

How to Find the Hardware Version on a TOTOLINK device?

240


     It is suitable for: All TOTOLINK Model

Application: Some TOTOLINK products have more than one hardware version, using V1, V2, etc for separation, and generally, each hardware version corresponds to a specifically developed firmware.



If you want to upgrade your device to the latest firmware, you need to choose the correct firmware version for your device.

【 CAUTION 】

All content on this website is only applicable to models selling in overseas markets (outside China   mainland, Taiwan and South Korea ),  any model purchased from China mainland, Taiwan or South Korea caused damage by upgrading software on this website is excluded in after-sales service range



For most TOTOLINK products, you can see a bar coded sticker at the front of the device, there is a  character string “ Model No - V X.Y ” (for example, N100RE-V1.1), See below:




The number X is the Hardware Version of your device. If the string shows “V1.y”, it means the hardware version is V1.
