- Complies with the IEEE 802.11ac Wave 2 Wi-Fi standard.
- 1167Mbps in total on dual band, 867Mbps on 5GHz and 300Mbps on 2.4GHz
- MU-MIMO technology allows to transfer data to multiple devices at the same time, each device enjoys high Internet speed separately.

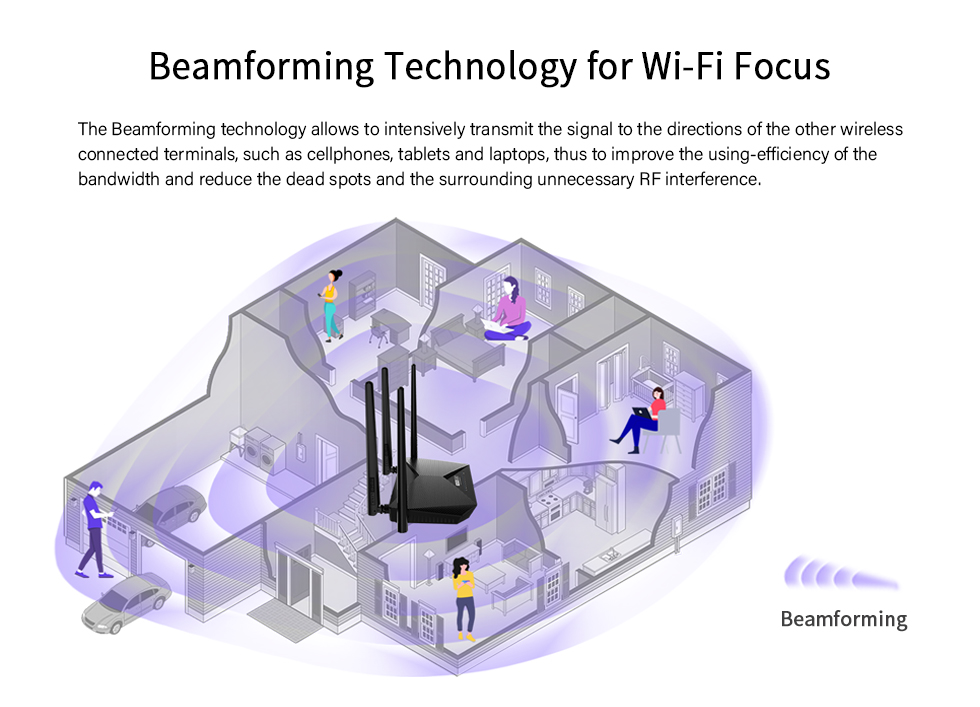

- Beamforming technology allows to intensively transmit the signal to the directions of the other wireless connected terminals, improving the using-efficiency of the bandwidth and reducing the dead spots and the surrounding unnecessary RF interference.
- USB port supports to share your files easily and charge your other devices.

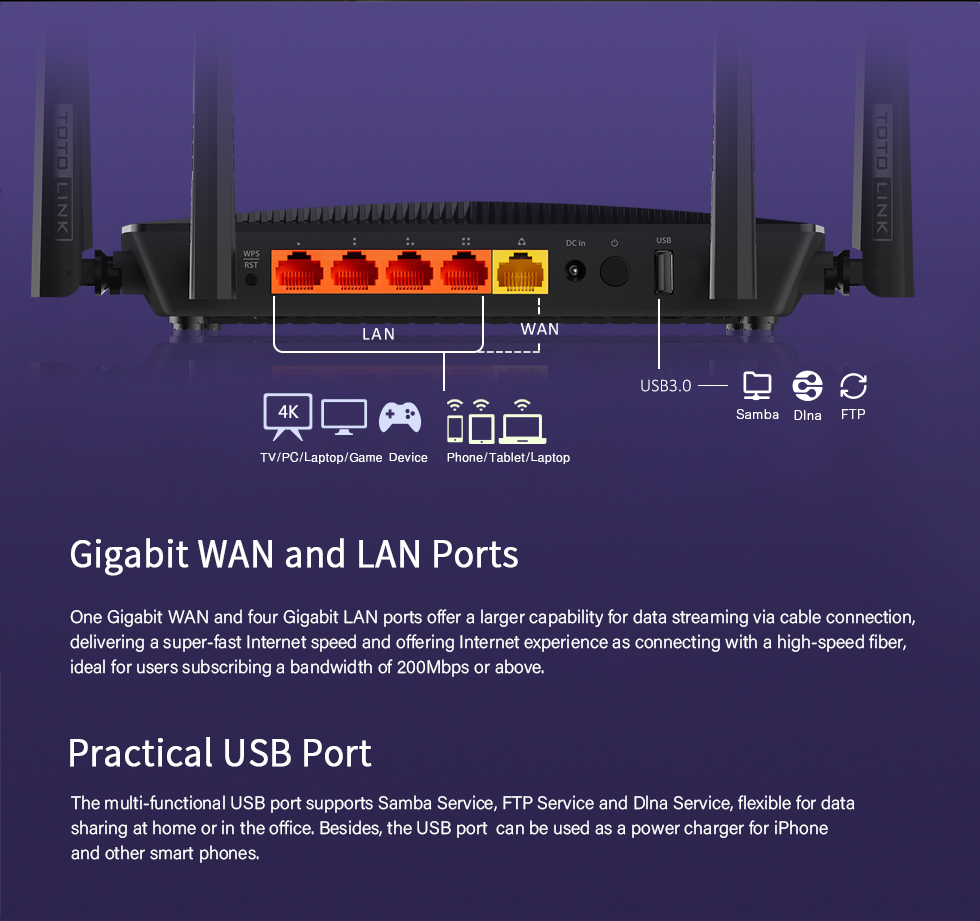

- Full gigabit ports offers a larger capability for data streaming via cable connection.

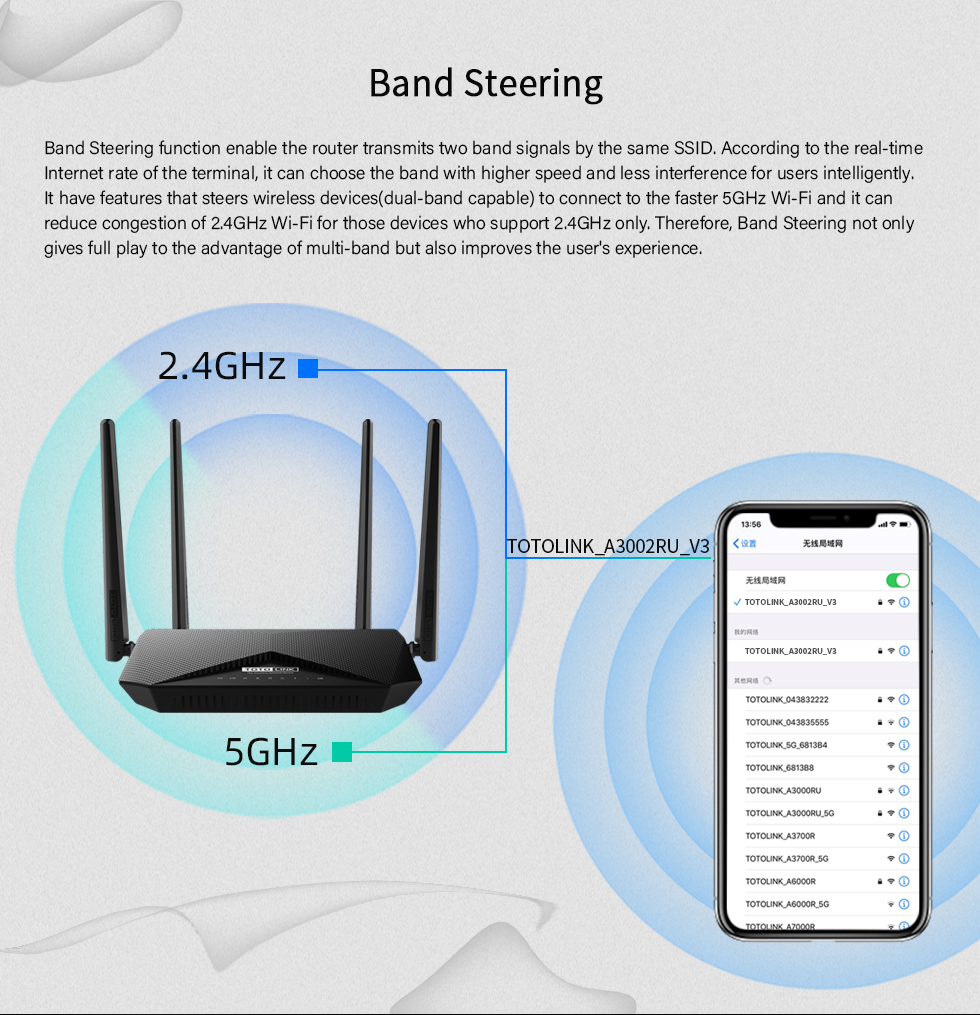

- Band Steering for full playing to the advantage of multi-band and improving the user's experience.

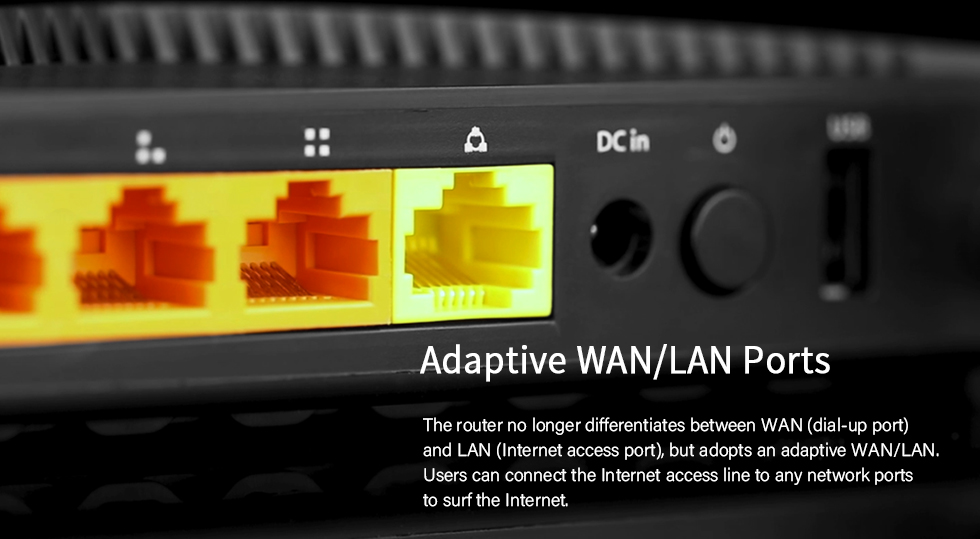

- Adaptive WAN/LAN Ports for no need to differentiate between WAN and LAN port.
- Supports DHCP, Static IP, PPPoE, PPTP and L2TP connection mode.
- Provides 64/128-bit WPA/WPA2 Mixed encryption.
- QoS function allows to change the bandwidth for different terminals via IP address.
- Supports IP address filtering, port filtering, MAC filtering, URL filtering and port forwarding.
- Universal Repeater and WDS function for easy Wi-Fi extension.
- Multiple SSIDs allows to create different SSIDs for different groups, better for Internet access management.
- Smart UI design is easy for the users to finish the basic configuration with their cellphones.
Hardware | |
| Interface |

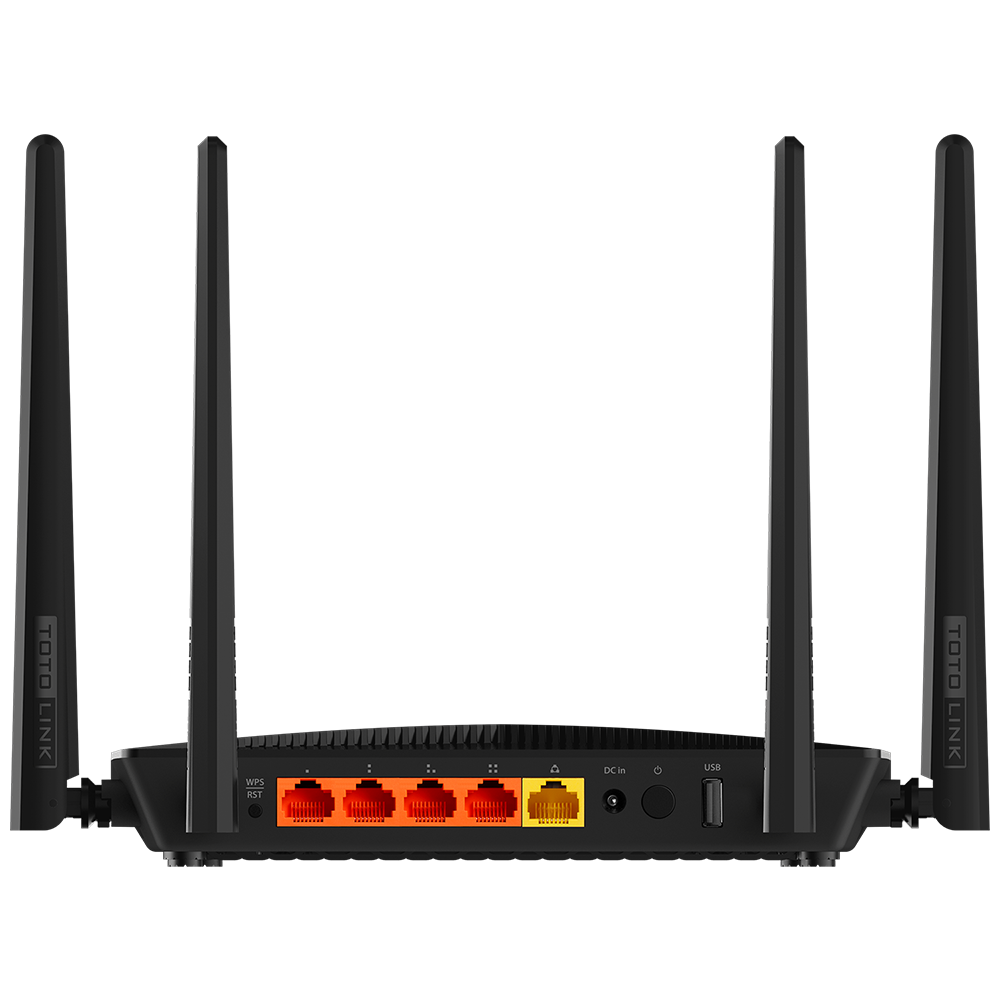

- 4 *1000Mbps LAN Adaptive Ports - 1 *1000Mbps WAN Adaptive Port - USB 2.0 Port |
| Power Supply | - 12V DC/1A |
| Button |
- 1 *RST/WPS Button, - 1* Power On/Off Button |
| LED Indicator |
- 1 * SYS - 1 * 2.4G - 1 * 5G - 1 * WAN - 4 * LAN - 1 * USB |
| Antenna |

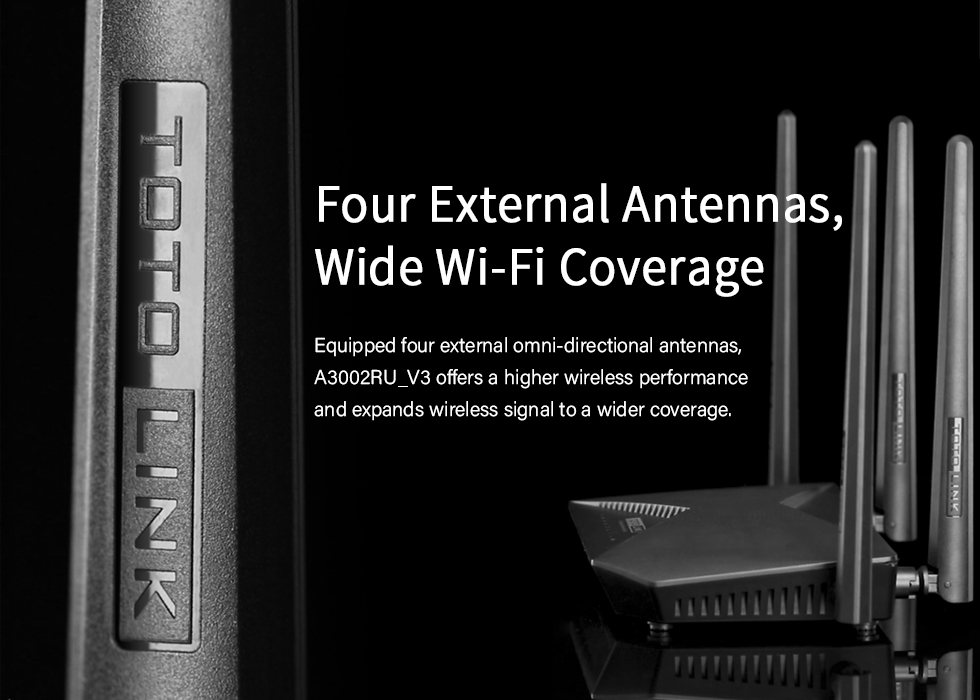

- 2 * 2.4GHz fixed antennas(5dBi) - 2 * 5GHz fixed antennas(5dBi) |
| Dimensions (L x W x H) | 210 x 120 x 40mm (not including antennas) |
Wireless | |||||
| Standards |
- IEEE 802.11ac, - IEEE 802.11n, - IEEE 802.11g, - IEEE 802.11b, - IEEE 802.11a |
||||
| RF Frequency | - 2.4GHz/5GHz |
||||
| Data Rate |
- 2.4GHz: Up to 300Mbps - 5GHz: Up to 867Mbps |
||||
| EIRP |
- 2.4GHz < 20dBm - 5GHz < 20dBm |
||||
| Wireless Security | -64/128-bit WEP, WPA and WPA2 |
||||
| Reception Sensiticity |
- 2.4G:11b 11M：-81dBm@8% PER 11g 54M：-68dBm@10% PER 11n HT20 MCS7：-65dBm@10% PER HT40 MCS7：-62dBm@10% PER - 5G: 11a 54M：-68dBm@10% PER 11n HT20 MCS7：-65dBm@10% PER HT40 MCS7：-62dBm@10% PER 11ac VHT80 MCS9：-51dBm@10% PER |
||||
Software | |
Operation Mode |
- Gateway Mode - Repeater Mode - AP Mode - WISP Mode |
|
WAN Type |
- Static IP, - DHCP, - PPPoE/Russia PPPoE, - PPTP/Russia PPTP, - L2TP/Russia L2TP |
| Home |
- Easy setup - Basic setup - Advanced setup - QR Code - LED - Logout - Reboot |
| Network |
- WAN Setting - LAN Setting - IPTV Setting - DHCP&ARP Tables - Static Route - Routing Table - IPv6 Network - DDNS |
Wireless |
- Basic Settings - Advanced Settings - Access Control - Wireless Schedule - Guest Network(Multiple SSID) - Band Steering |
| Parental controls |
- Internet time control based on MAC - URL Restrictions |
| QoS |
- Up/Down speed control on WAN, - Bandwidth control based on IP address |
|
Firewall |
- MAC Filtering - IP/Port Filtering - URL Filtering |
|
USB functional |
- DLNA - Samba - FTP |
System |
- Upgrade Firmware - Save/Reload Settings - Time Zone Settings - TR-069 Config - Password Settings - Reboot Schedule - System Log and so on |
Others | |||||
| Package Contents |
- A3002RU_V3 Wireless Router *1 - Power Adapter *1 - Ethernet Cable *1 - Quick Installation Guide *1 |
||||
| Environment | - Operating Temperature: 0℃~50 ℃ (32 ℉~122℉) - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) - Operating Humidity: 10%~90% non-condensing - Storage Humidity: 5%~90% non-condensing |
||||
