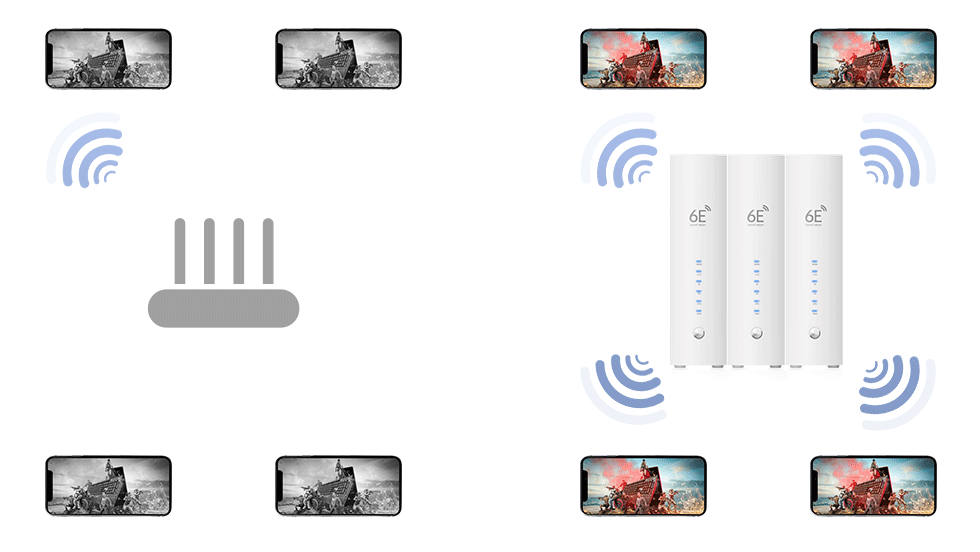

OFDMA More Device, Less Congestion
X78-6E white can easily handle dozens of devices streaming and gaming at the same time—OFDMA, greatly increases capacity by 4 times to enable simultaneous transmission to more devices. OFDMA separates a single spectrum into multiple units and enables different devices to share one transmission stream, increasing efficiency and reducing latency.
2500M ultra-fast network port
Equipped with a 2500M ultra-fast network port, it can easily handle bandwidths above Gigabit. It can also be used with home storage to build a high-speed home data center with faster transmission rates.
MU-MIMO
With MIMO, data would be divided into small packets, transmitted in multiple ways and finally assembled in the receiving antenna. Moreover , transmission can be easier and more flexible. The total data capacity also increases while decreasing the transmission pressure.
| Single-user MIMO | Multi-user MIMO |
- Complies with 802.11ax/ac/a/b/g/n standards.
- Dedicated New 6GHz Wi-Fi Band
- Delivers up to 574Mbps on 2.4G band / 4804Mbps on 5G band / 2402Mbps on 6G band.

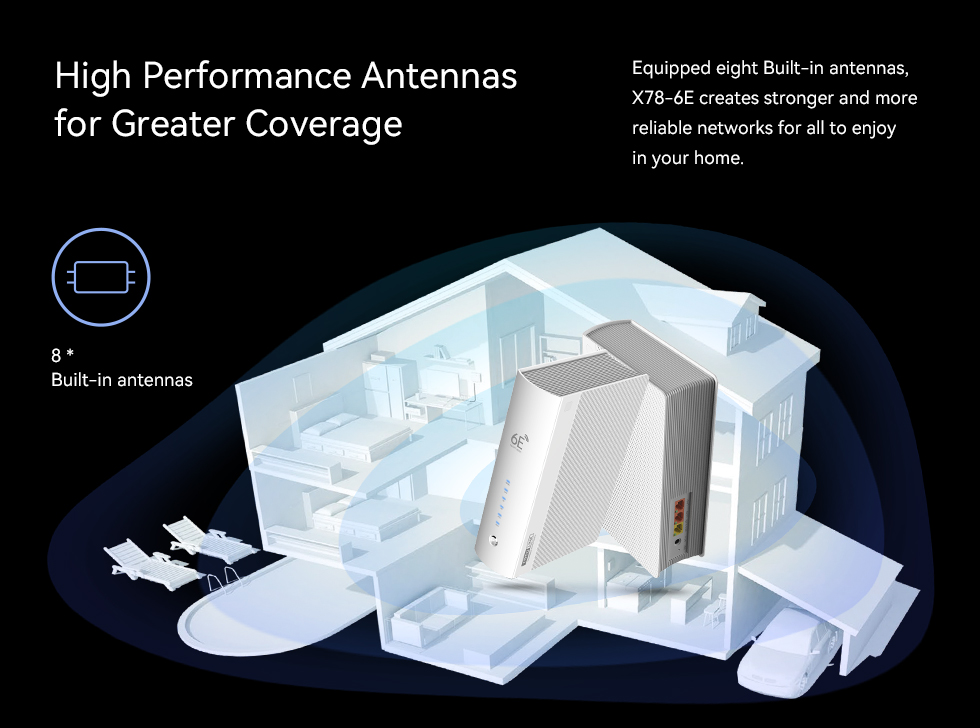

-Eight built-in antennas can enhance the stability of throughput.

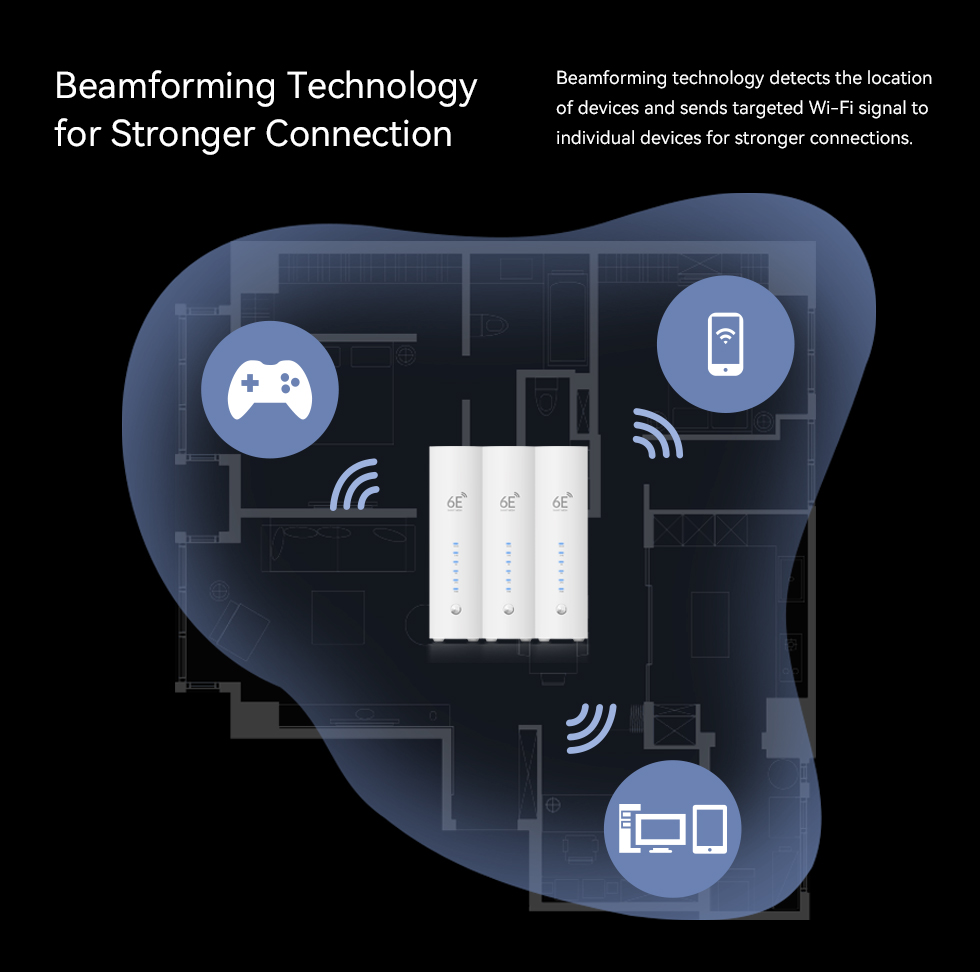

- Beamforming technology for stronger connection.
- OFDMA to improve capacity and efficiency of your network, so more devices can connect without slowing down your Wi-Fi.
- TWT (Target Wake Time) technology reduces your devices' power consumption to extend their battery life.
- Supports easy and quick setup by smart phones.
-Support 2.5Gbps Ethernet interface.
- Supports 64-bit WEP, WPA/WPA2/WPA3 and WPA-PSK/WPA2-PSK encryption.
- Support VPN server, Universal Repeater, Guest network, Smart QoS, Wi-Fi Scheduler.
- Parental Control on the router lets you easily manage content and time online on any connected device.
- Supports Multi User MIMO (WAVE2)
- Supports Easy Mesh
Hardware | |
|---|---|

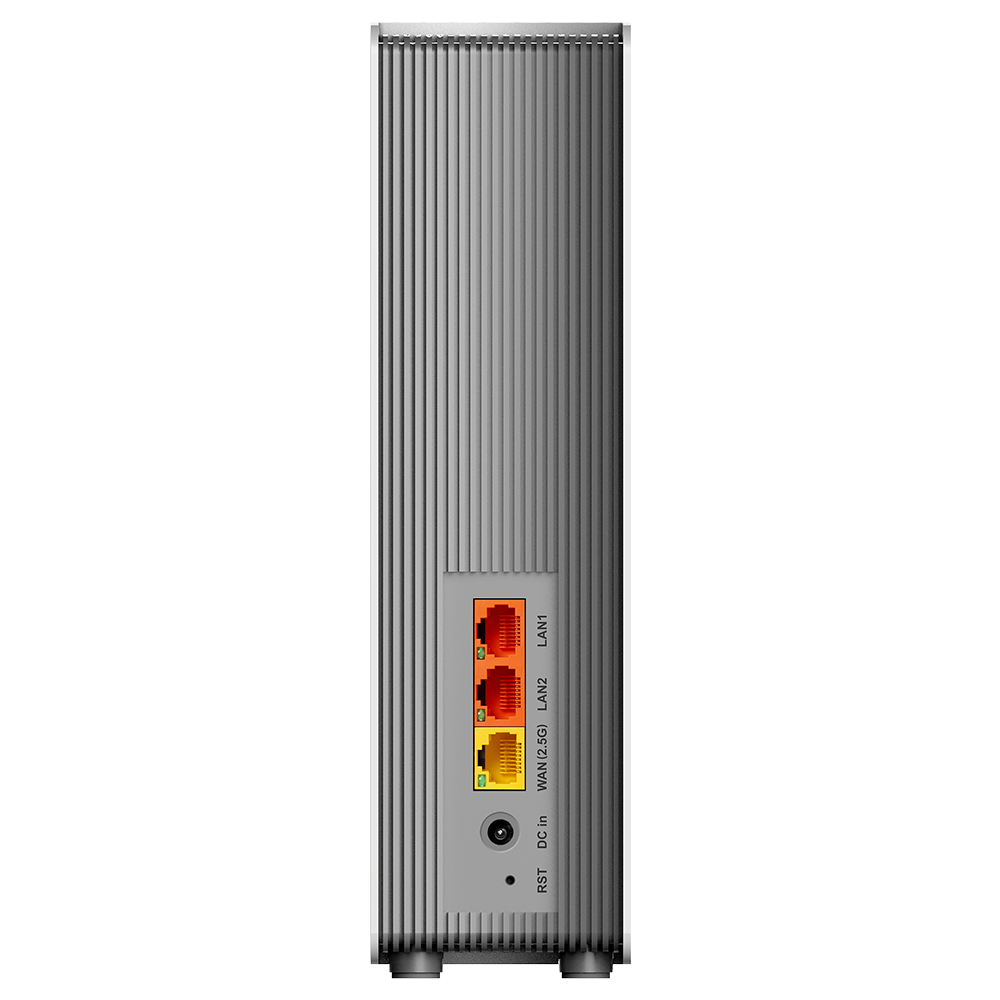

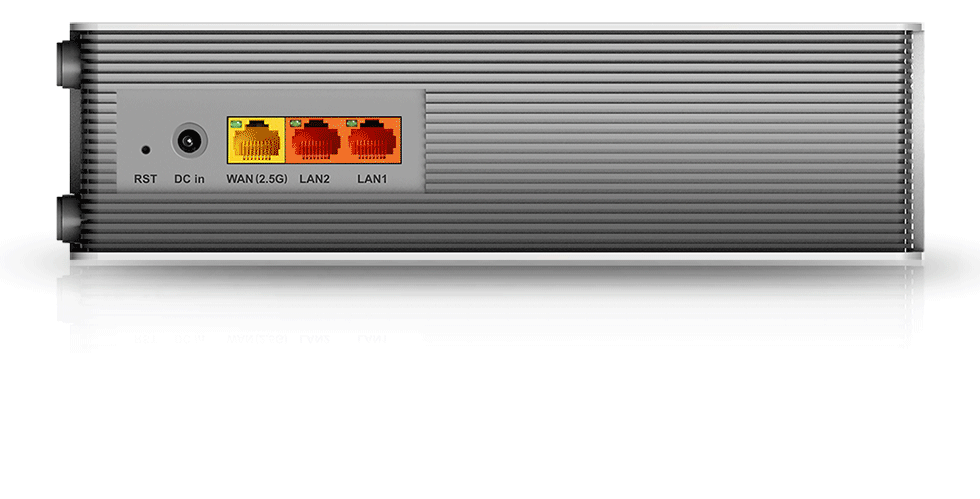

| Ethernet Port |
- 2*10/100/1000Mbps LAN Ports - 1*10/100/1000/2500Mbps WAN Port |
Power Supply |
- 12V DC/1A |
Antenna |
- 2 * Built-in 2.4G band antennas - 4 * Built-in 5G band antennas - 2 * Built-in 6G band antennas |
Button |
- DC/IN*1、MESH*1、RST*1 |

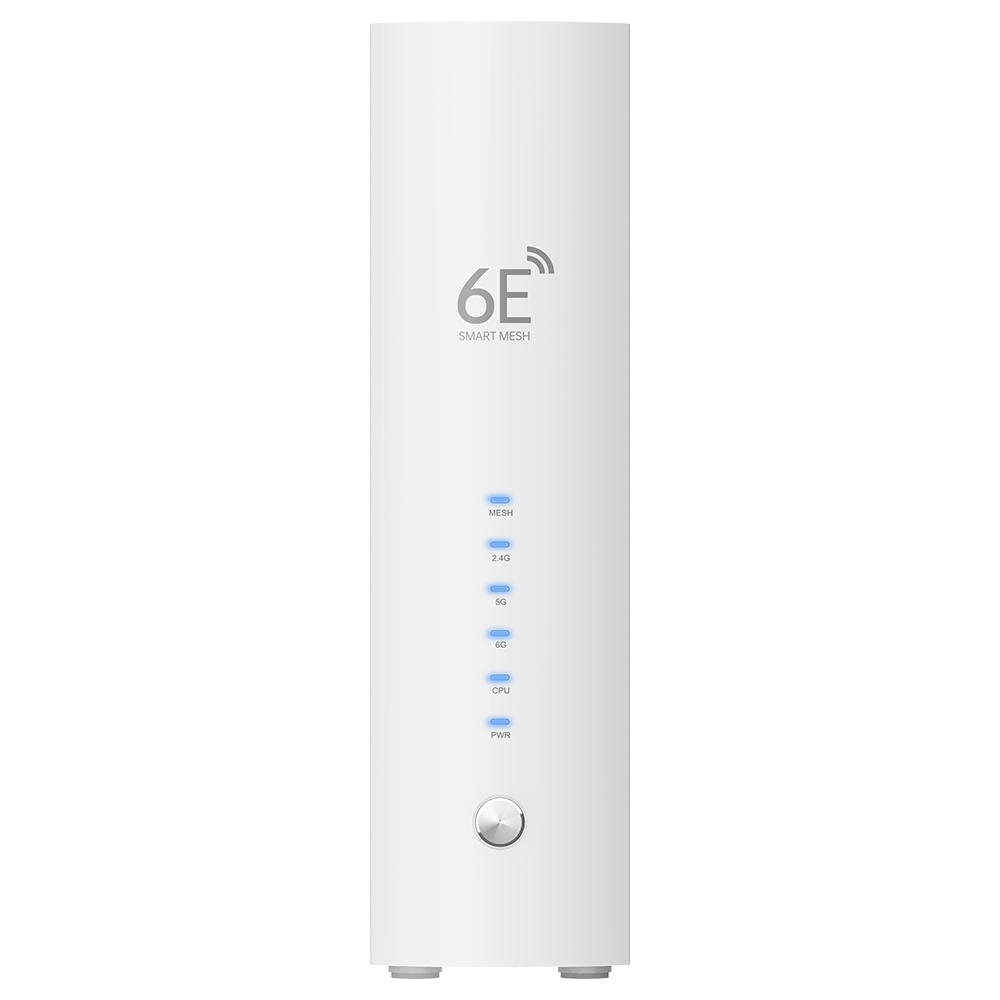

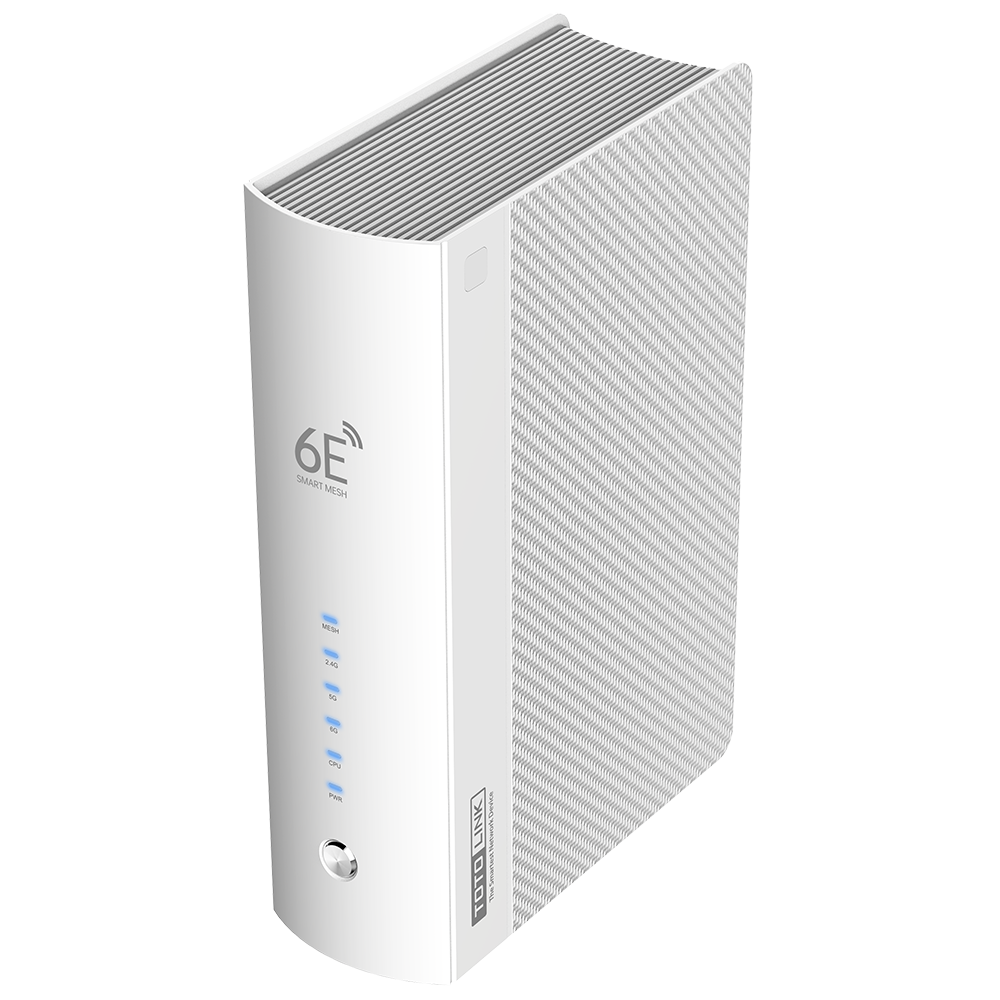

LED Indicators |
- 1* CPU，1* 6G/WIFI，5G/WIFI*1、2.4G/WIFI*1、MESH*1 |
Dimensions (L x W x H) |
- 235*160*65mm |
Wireless | |
|---|---|
| Standards |
- IEEE802.11n/g/b/a/ac/ax - IEEE802.3、IEEE802.3u、IEEE802.3ab、IEEE802.3bz |
| RF Frequency | - 2.4GHz/5GHz/6GHz |
| Data Rate |
- 2.4G 2*2：574Mbps - 5G 4*4：4804Mbps ((dedicated band for back hauling) - 6G 2*2：2402Mbps |
EIRP |
- 2.4GHz < 20dBm
- 5GHz < 23dBm |
Wireless Security |
- 64/128-bit WEP, WPA, WPA2,WPA3 and WPA-PSK/WPA2-PSK |
| Reception Sensitivity | - 2.4G RX： 11B_11M：-85 dBm，11G_54M：-72 dBm，HT20_MCS7：-68 dBm，HT40_MCS7：-65 dBm, HE-SU40 MCS11：-53dBm； - 5G RX： 11A_54M：-68 dBm，HT20_MCS7：-65 dBm，HT40_MCS7：-62 dBm，VHT80_MCS9：-51 dBm，HE-SU40 MCS11：-47dbm，HE-SU80 MCS11：-46dbm，HE-SU160 MCS11：-43dBm； - 6G RX： 11A_54M：-68 dBm，HE-SU20 MCS11：-49 dBm，HE-SU40 MCS11：-47 dBm，HE-SU80 MCS11：-46 dBm，HE-SU160 MCS11：-43 dBm； |
| Others | |
|---|---|
|
Package Contents
|

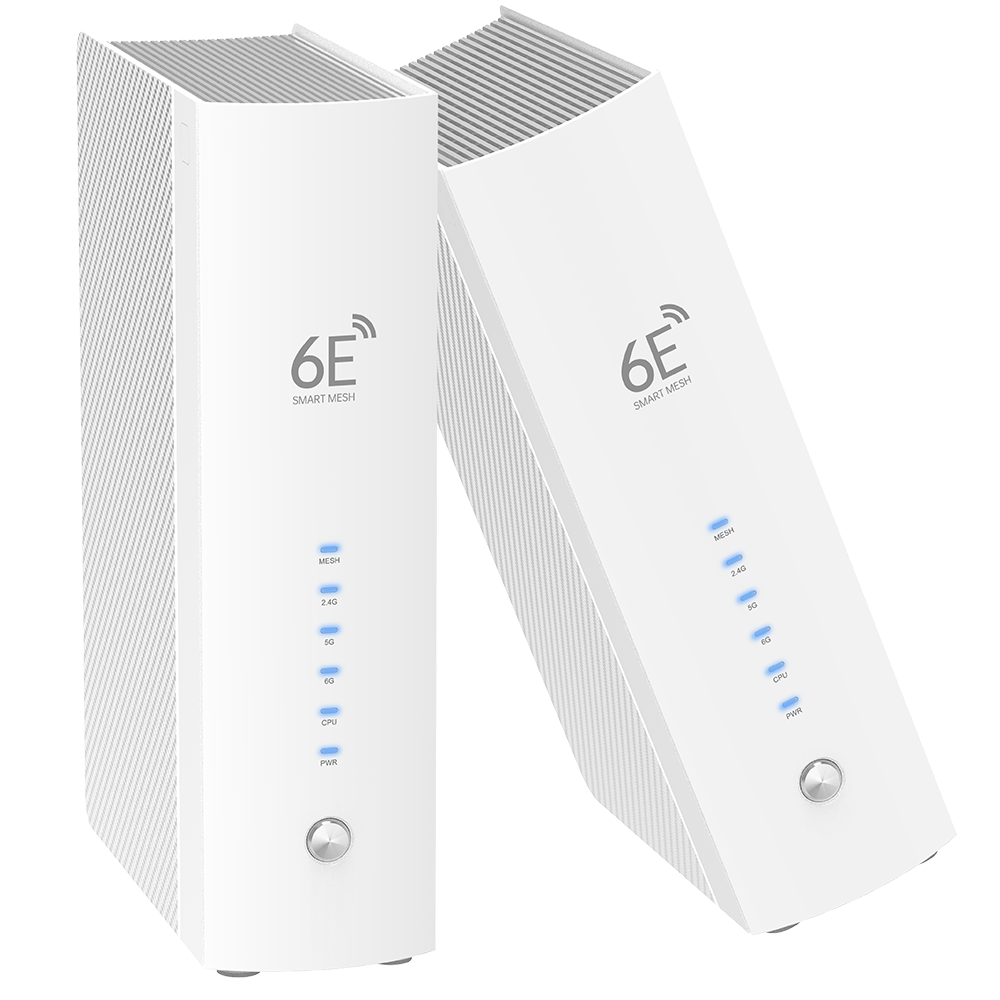

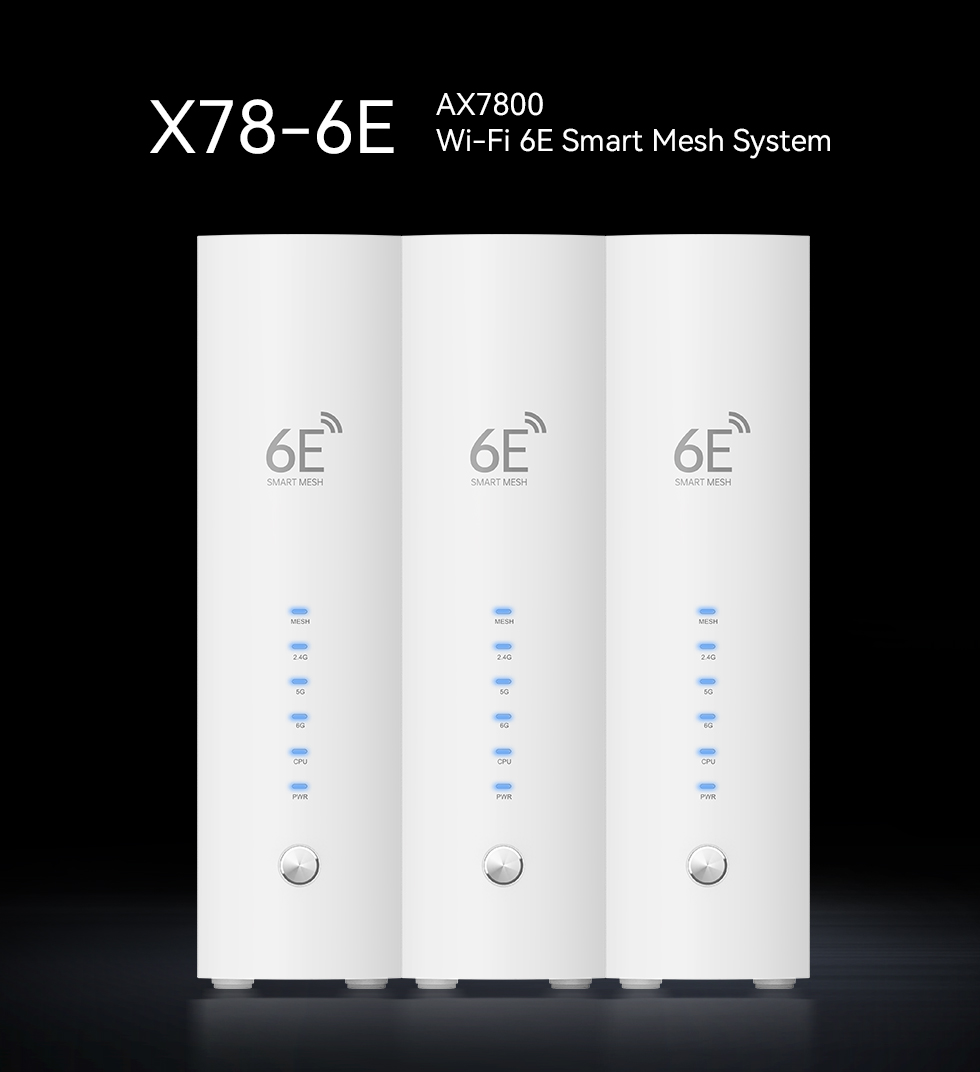

- AX7800 Wi-Fi 6E Smart Mesh System *1 - Power Adapter *1 - Ethernet Cable *1 |
|
Environment
|
- Operating Temperature: 0℃~40℃ (32℉ ~104℉) - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) - Operating Humidity: 10%~90% non-condensing - Storage Humidity: 5%~90% non-condensing |
