WiFi 6E: A Freer and Faster Future
WiFi 6E introduces the brand new 6 GHz band without any overlap or interference from other bands and older devices. This means a congestion-free frequency that offers more bandwidth, faster speed, and lower latency.

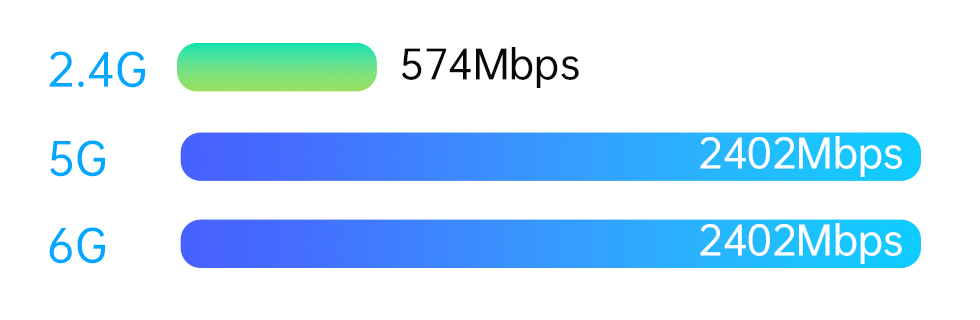

5400Mbps Ultra-Fast Wi-Fi Speed
X5400PE white delivers Wi-Fi speeds of up to 2402Mbps on 6GHz, 2402Mbps on 5GHz and 574Mbps on the 2.4GHz, and for a total of 5400Mbps. Every application feels more fluid with drastically improved Wi-Fi speeds. Perfect for 4K streaming, immersive AR/VR gaming, and blazing-fast downloads.
160MHz high bandwidth
Compared with the 80MHz frequencyband, the bandwidth is doubled andthe speed is doubled, which meets the high-speed connection requirementsof multi-device line devices.

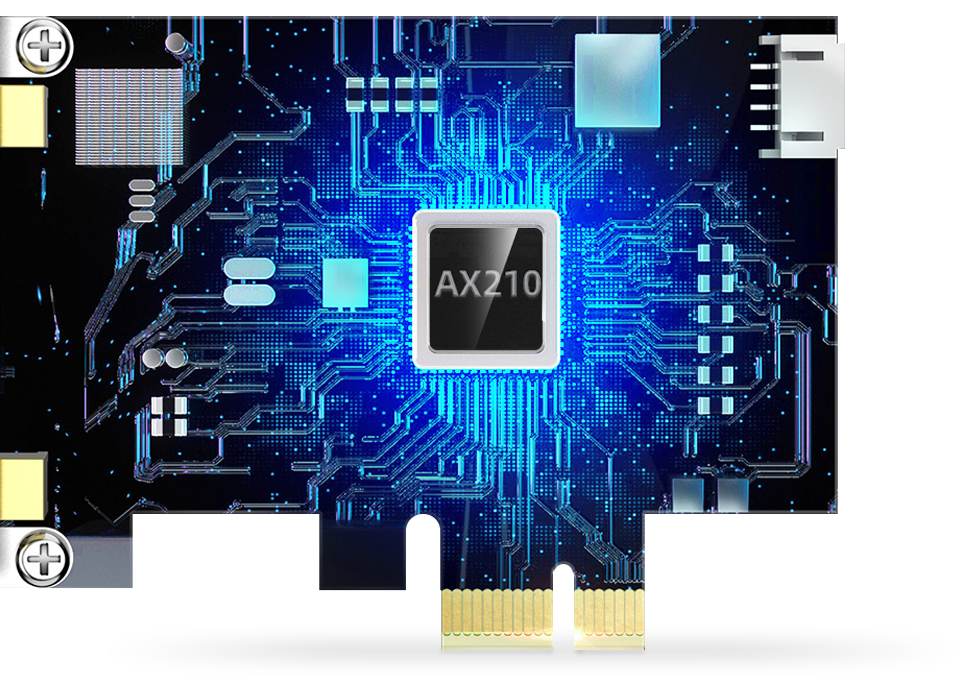

Intel® AX210 chipset
Reliable Connections—Intel® AX210 chipset brings faster and clearer Wi-Fi to fully unlock the potential of your Wi-Fi 6 router.

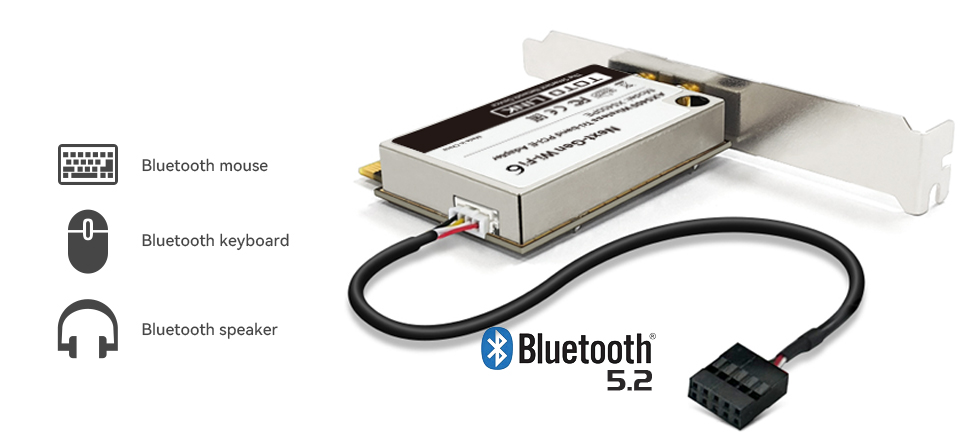

Bluetooth 5.2 and downward capability BT 5.0/4.2/4.0
X5400PE supports Bluetooth 5.2 and downward capability BT 5.0/4.2/4.0 standard. After installation, you can connect to Bluetooth devices by following the setups below (e.g. Bluetooth mouse, Bluetooth keyboard, Bluetooth speaker etc)

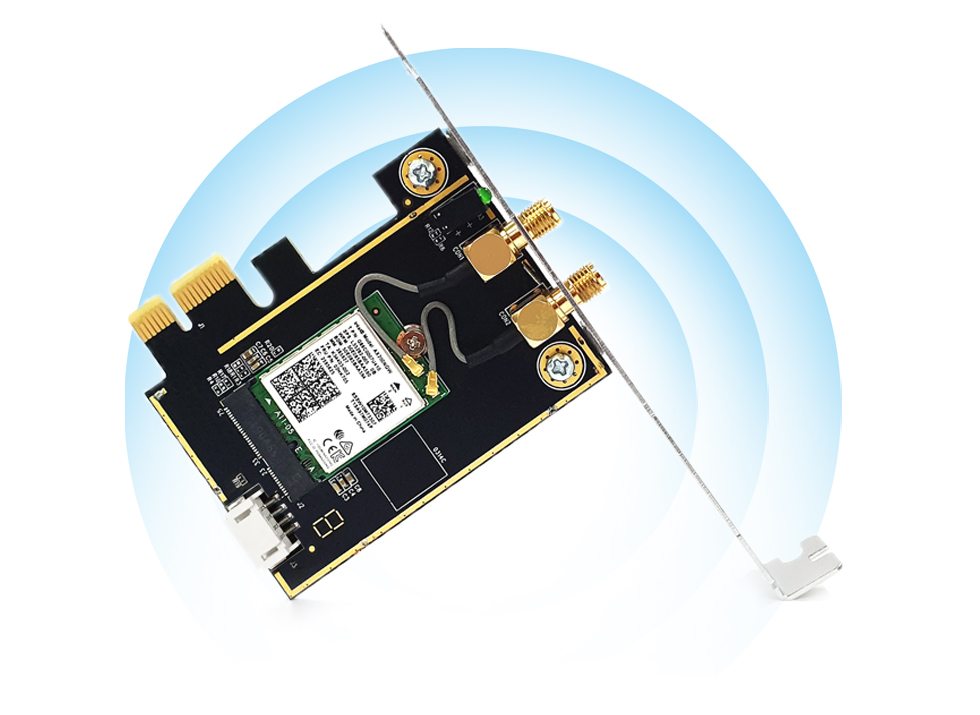

Next Generation 11AX Standard
Next generation 11AX standard offers UL/DL OFDMA modulation and demodulation. UL MU-MIMO and high-speed PCI-e interface can bring low latency, high efficiency Wi-Fi data transmission.

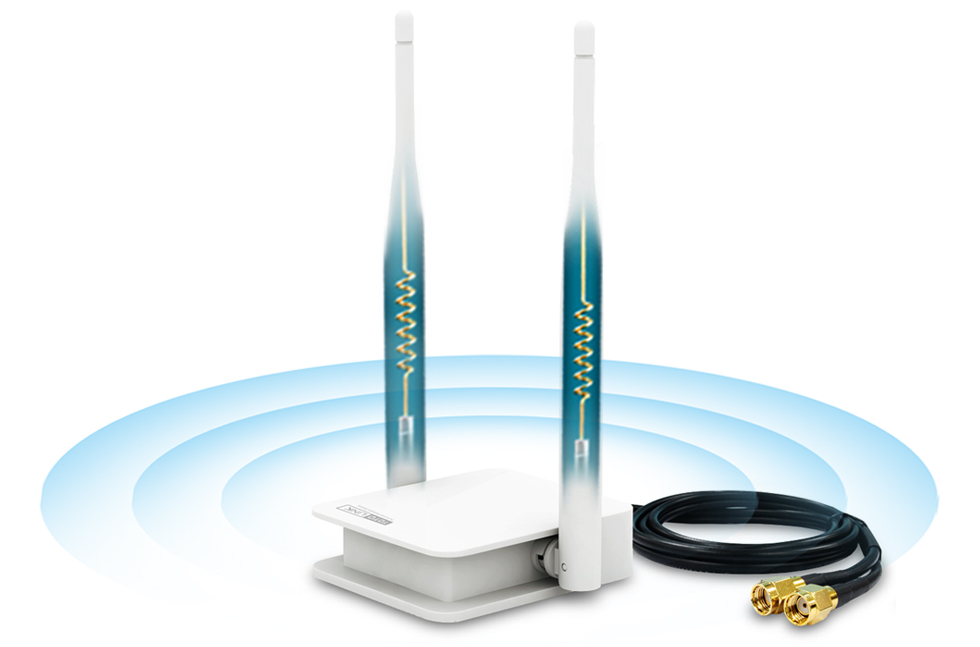

External Omni-directional Antenna, Wide Wi-Fi Coverage
Equipped with two external omni-directional antennas, X5400PE offers a higher wireless performance and expands wireless signal to a wider coverage.
Supports Win 10/11
Supports Windows 10, 11 (64 bit) operating systems.
- Comply with IEEE 802.11 ax/ ac/a/b/g/n standards.
- Up to total 5400Mbps wireless speed on simultaneous 2.4GHz(574Mbps) , 5GHz(2402Mbps) and 6GHz(2402Mbps)
- Reliable Connections—Intel® AX210 chipset.
- Support Bluetooth 5.2, including 2× faster speed and 4× broader coverage compared with Bluetooth 4.2.
- Two external high gain antennas improve the sensitivity of signal transmission and reception.
- Highest Multi-client performance with DL/UL MU-MIMO allows to choose the optimal Wi-Fi.
- 1024-QAM high data rate Modulation delivers powerful, continuous Wi-Fi to fully unlock the potential of Wi-Fi 6 router.

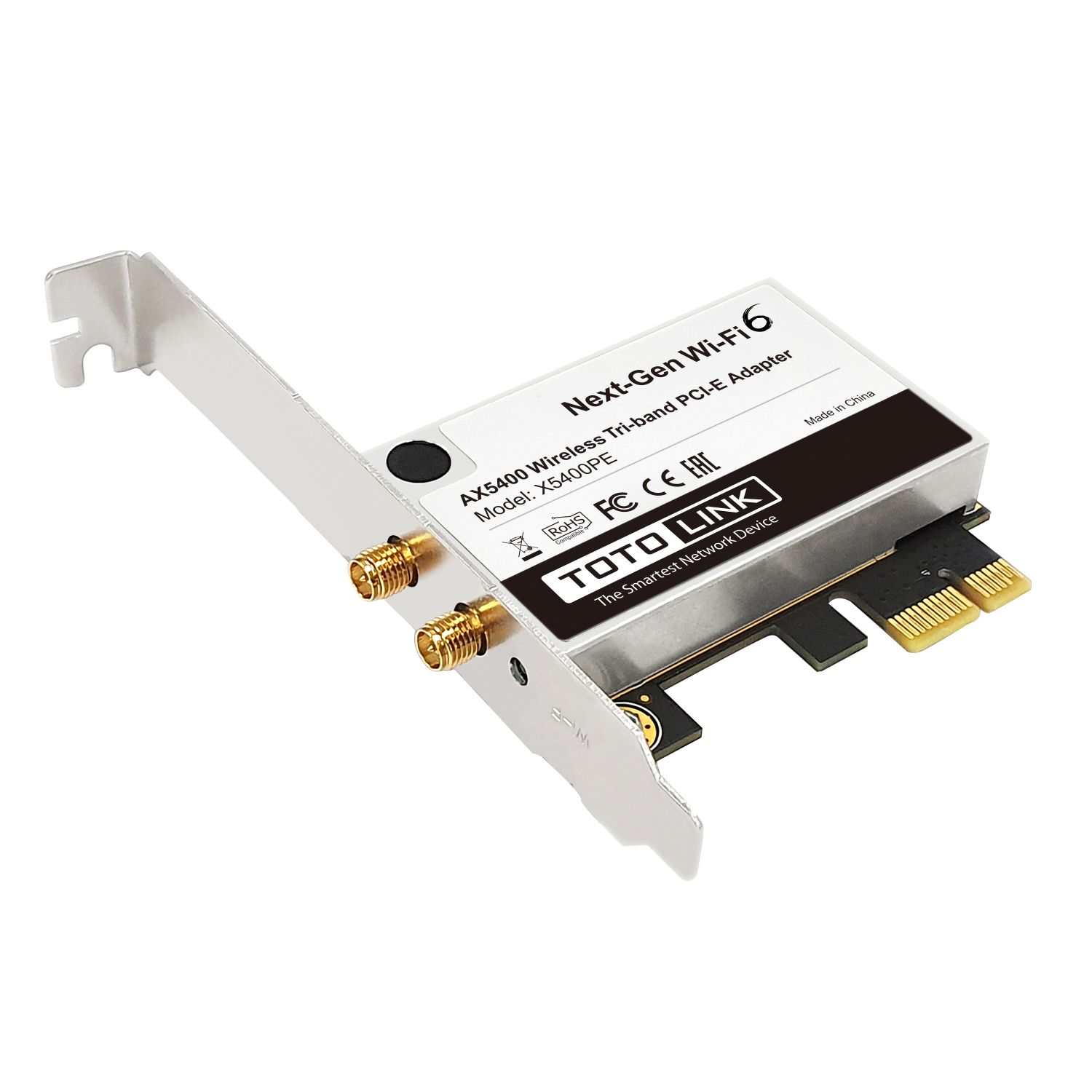

- High Speed PCI-e port provides stable Wi-Fi transmission.
- Support 64/128-bit 64/128-bit WEP, WPA-PSK / WPA2-PSK, WPA / WPA2, WPA3 encryption.
- Support Windows 10(64-bit) operating system.
| Hardware | |
|---|---|
Chipset |
- Intel AX210 Chipset |
Interface |
- PCI-E port - Bluetooth Header |
LED Indicators |
- 1*WIFI Green |
Antenna |
- 2* 5dBi desktop antennas |
| Wireless | |
|---|---|
| Standards |
- IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a - Bluetooth 5.2/5.0/4.2/4.0 |
RF Frequency |
- 2.4GHz/5GHz/6GHz |
Bluetooth |
- Bluetooth 5.2 and downward capability BT 5.0/4.2/4.0 |
| Data Rate |
- 6 GHz: Up to 2402 Mbps - 5 GHz: Up to 2402 Mbps - 2.4 GHz: Up to 574 Mbps |
Wireless Security |
- 64/128-bit 64/128-bit WEP, WPA-PSK / WPA2-PSK, WPA / WPA2, WPA3 |
Modulation Technology |
- DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM |
| Others | |
|---|---|
|
Package Contents |

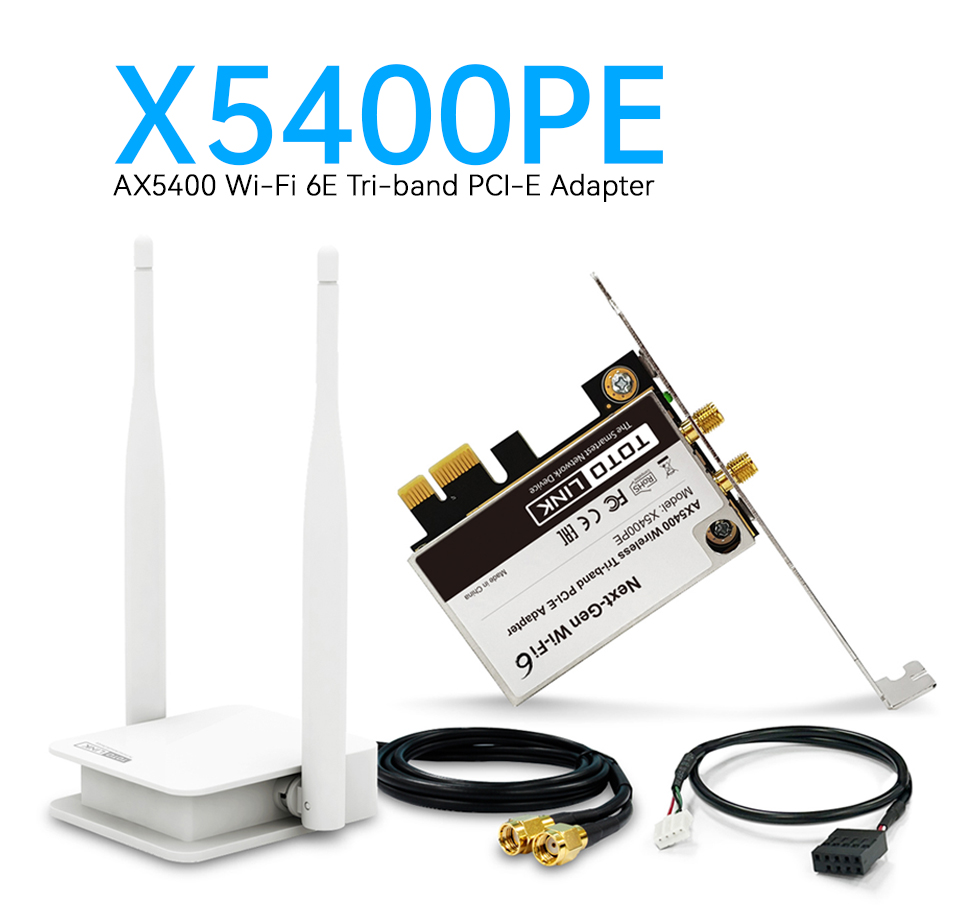

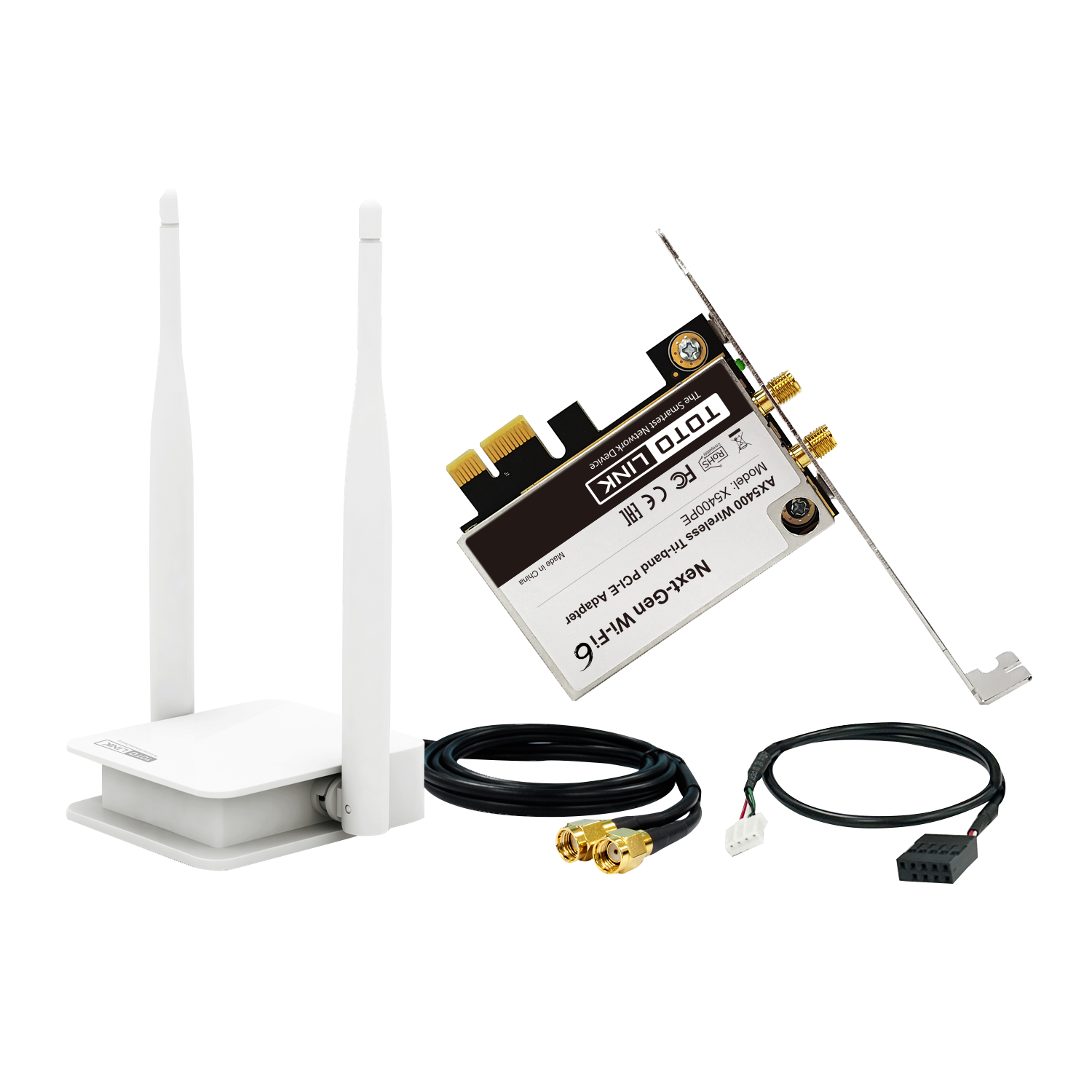

- X5400PE Wireless Adapter *1 - Desktop antenna *2 - Resource CD *1 - Low Profile Bracket *1 - Bluetooth Header Cable*1 - Quick Installation Guide *1 |
|
System Requirement |
- Supports Windows 10/11 (64bits) |
Environment |
- Operating Temperature: 0℃~40 ℃ (32 ℉~104℉) - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) - Operating Humidity: 10%~90% non-condensing - Storage Humidity: 5%~90% non-condensing |
