- Complies with 802.11 be/ax/ac/a/b/g/n standards.
- Delivers up to 688Mbps on 2.4G band / 2882Mbps on 5G band
- 4* 5dBi external antennas enhance throughput stability.
- Beamforming technology for stronger connection.

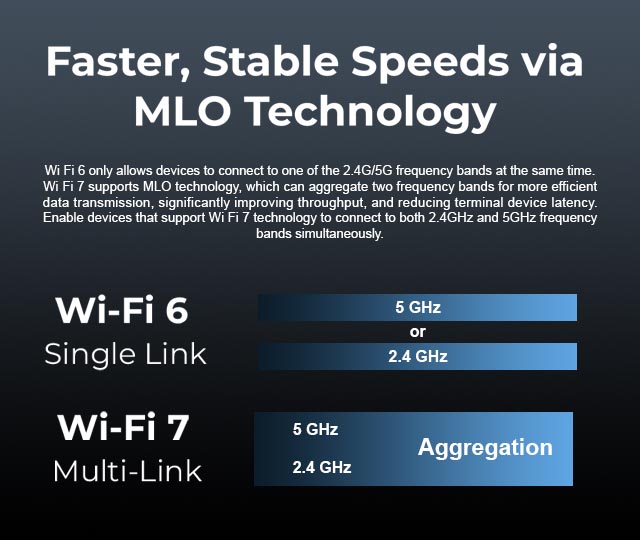

- Support MLO technology to significantly reduce latency and improve throughput- Supports easy and quick setup by smart phones.
- Supports 4K QAM technology, increasing peak rate by 20%
- Supports WPA/WPA2/WPA3 and WPA-PSK/WPA2-PSK encryption.
- Support OFDMA plus MRU technology, effectively improving data transmission efficiency and reducing latency
- Supports Easy Mesh
- Support VPN server, Universal Repeater, Guest network, Smart QoS, Wi-Fi Scheduler.
- Parental Control on the router lets you easily manage content and time online on any connected device.

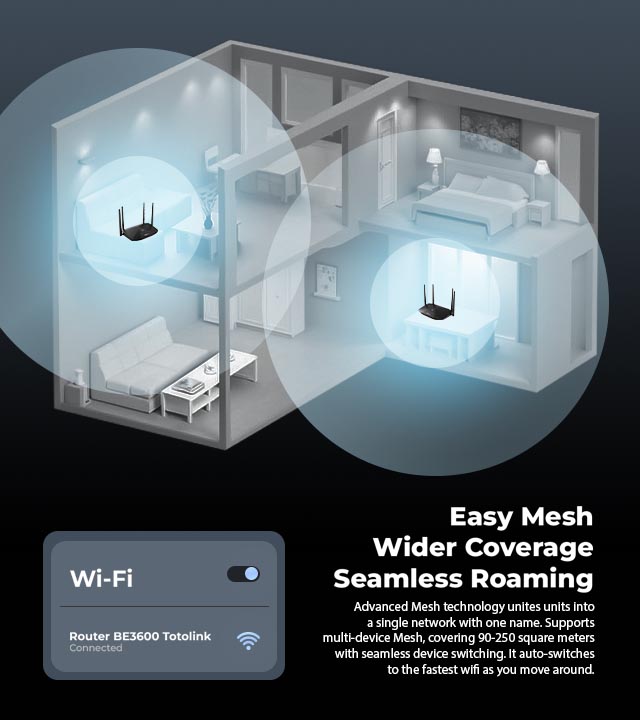

Easy Mesh function for easy Wi-Fi extension and seamless roaming.
Easy setup and management with phone UI and TOTOLINK Router APP.
Hardware | |
|---|---|

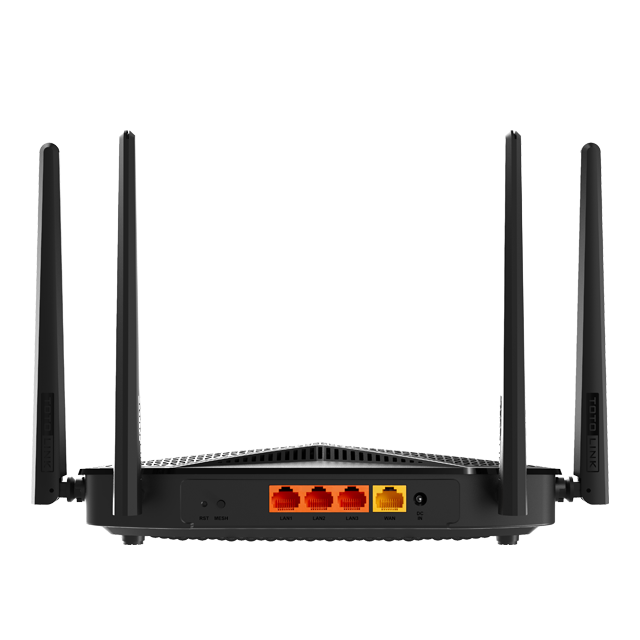

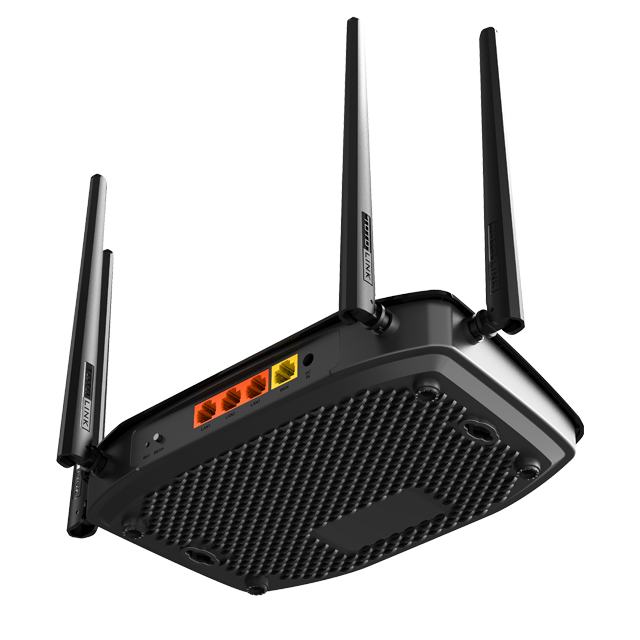

| Ethernet Port |
-1*10/100/100/1000Mbps WAN (Auto MDI/MDIX) -3* 10/100/1000Mbps LAN (Auto MDI/MDIX) |
Power Supply |
-DC12V 1A |
Antenna |
-1 *5 dBi external 2.4G band antenna -2 *5 dBi external 5G band antenna -1 *5 dBi external 2.4G/5G dual-band antenna |
Button |
-DC/IN*1、MESH*1、RST*1 |
LED Indicators |
- SYS*1、2.4G/WIFI*1、5G/WIFI*1、WAN*1、LAN*3、MESH*1 |
Dimensions (L x W x H) |
- 241.0 x 152.3 x 48.4mm |
Wireless | |
|---|---|
| Standards | -IEEE802.11n/g/b/a/ac/ax/be -IEEE802.3、IEEE802.3u、IEEE802.3ab |
| RF Frequency | -2.4GHz/5GHz |
| Data Rate |
-2.4G ：688Mbps -5G ：2882Mbps |
EIRP |
- 2.4GHz < 20dBm - 5GHz < 23dBm |
Wireless Security |
-WPA, WPA2,WPA3 and WPA-PSK/WPA2-PSK |
| Reception Sensitivity | -2.4G： 11b 11M：-85 dBm 11g 54M：-72 dBm 11n ： HT20 MCS7：-68dBm HT40 MCS7：-65dBm HE40 MCS11:-49dBm EHT40 MCS13:-43 dBm -5G：11a 54M：-72dBm 11n HT20 MCS7：-68dBm HT40 MCS7：-65dBm 11ac VHT80 MCS9：-55dBm 11ax HE-SU40MCS11:-49dBm HE-SU80 MCS11：-46dBm HE-SU160 MCS11：-43dBm 11be EHT40_MCS13: -43dBm EHT80_MCS13: -40dBm EHT160_MCS13: -37dBm |
| Others | |
|---|---|
|
Package Contents
|
- BE3600R Wireless Dual-band Wi-Fi 7 Router *1 - Power Adapter *1 - Ethernet Cable *1 |
|
Environment
|
- Operating Temperature: 0℃~40 ℃ (32 ℉~104℉) - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) - Operating Humidity: 10%~90% non-condensing - Storage Humidity: 5%~90% non-condensing |
