Built-in high configuration 2100mAh high performance lithium battery,
Smart power-saving technology effectively reduces power consumption by 30% and reduces power loss
Create a reliable personal Wi-Fi hotspot on your mobile by simply plugging in a 4G SIM card
Instantly share 4G LTE connectivity and support connected devices 9+1 or more
With 4G portable WIFI, tablet, mobile phone, laptop, game console, smart furniture, etc. can easily enjoy 4G network
LTE high-speed Internet access, the Internet is stable and not dropped.
The maximum download speed of the LTE network is 150Mbps, and the upload speed is 50Mbps.

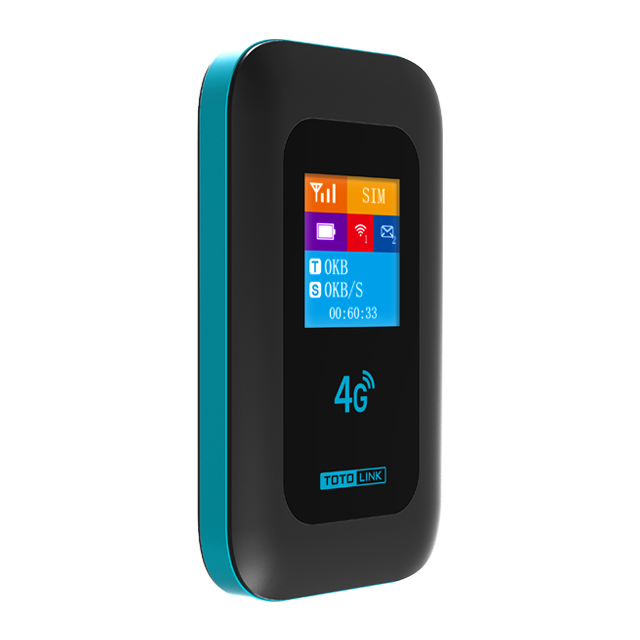

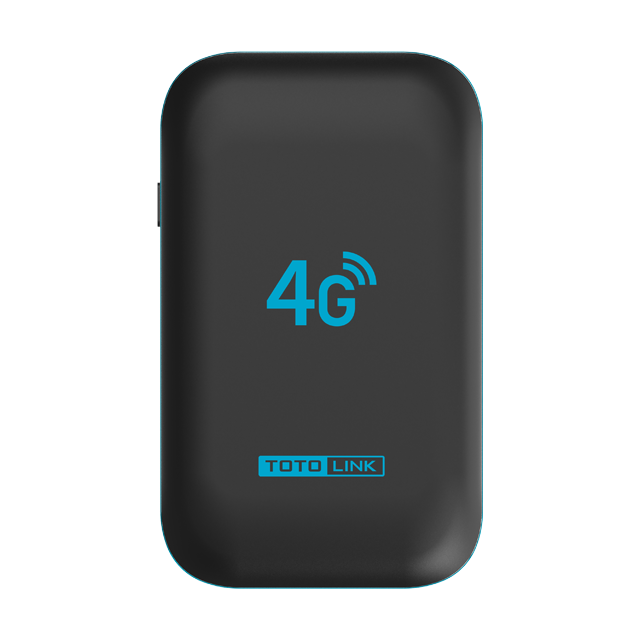

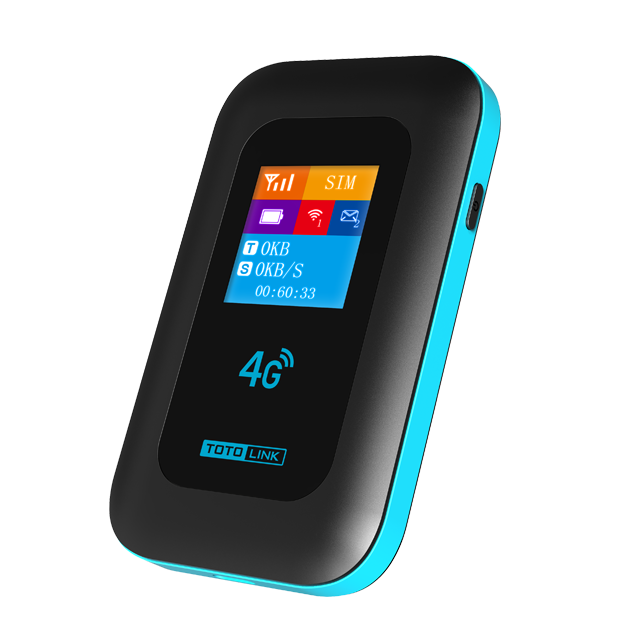

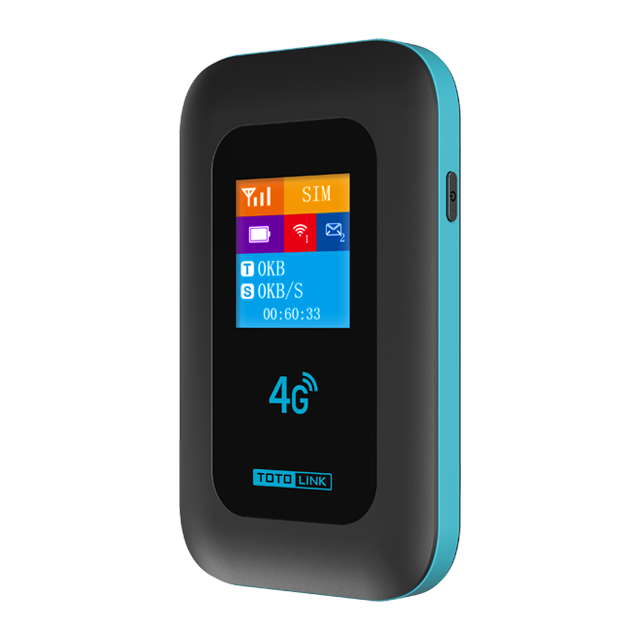

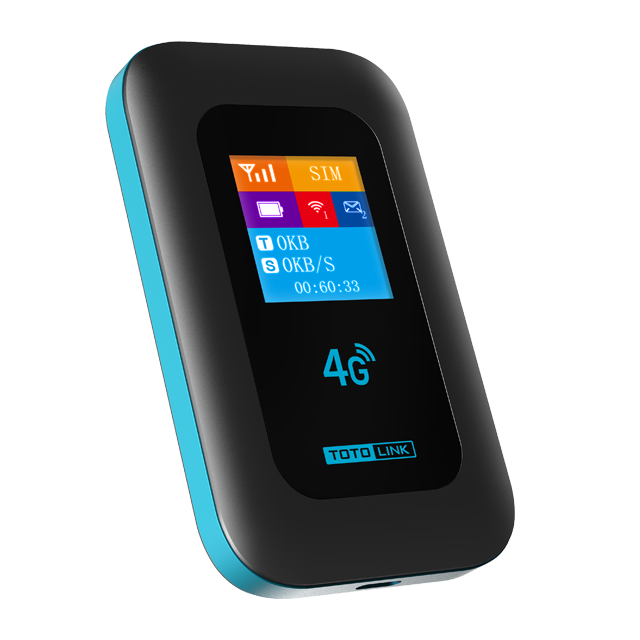

The M3L features a compact, elegant design very suitable for travel
Support FOTA upgrade
Support IPV4&IPV6 protocols
Support APN,VPN settings
Built-in, 4G Main/Sub and Wi-Fi

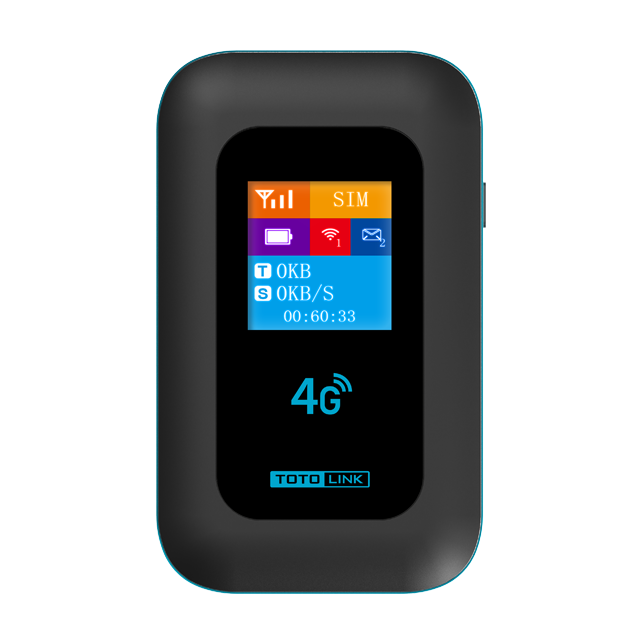

Support 1.44inch color LCD
|
Basic information | |
Factor |
Mobile WIFI Hotspot |
Dimension |
98.4*59.1*14.7mm |
Weight |
about 100g (with Battery) |
|
Air interface | |
Technical Standard |
Compatible with WCDMA, FDD-LTE, TDD-LTE,IEEE 802.11 b/g/n |
Network frequency |
Default: LTE FDD 1/3/7/8/20/28AB LTE TDD 38/40/41 WCDMA 1/8 |
WIFI |
WiFi6 2.4G, IEEE 802.11 /b/g/n/ax |
|
Hardware | |
Receive Diversity |
Support Receive Diversity |
MIMO |
Support LTE MIMO 2x2 |
Memory |
256Mb RAM + 128Mb ROM |
USB charging |
above 5V/1A |
USIM/SIM |
Nano SIM Card slot1×eSIM optional (5×6mm)vSIM optional |
Battery |
Li-ion Battery 2100mAh |
Charging time |
<3.5 hours |
| Working time | around 6~7 hours (depend on network) |
| Standby time | >48 hours |
| LCD display | Yes, 1.44inch color LCD |
USB |
Type C, Charging & Internet |
| Antenna | Built-in, 4G Main/Sub and Wi-Fi |
| Buttons | POWER, Reset |
| ESD | ESD Protection circuit; Contact±4KV, Air±8KV |
