- Complies with 802.11 be/ax/ac/a/b/g/n standards.
- Dedicated New 6GHz Wi-Fi Band
- Delivers up to 688Mbps on 2.4G band / 4323Mbps on 5G band / 8646Mbps on 6G band.
-Eight built-in antennas can enhance the stability of throughput.- Beamforming technology for stronger connection.
- Beamforming technology for stronger connection.

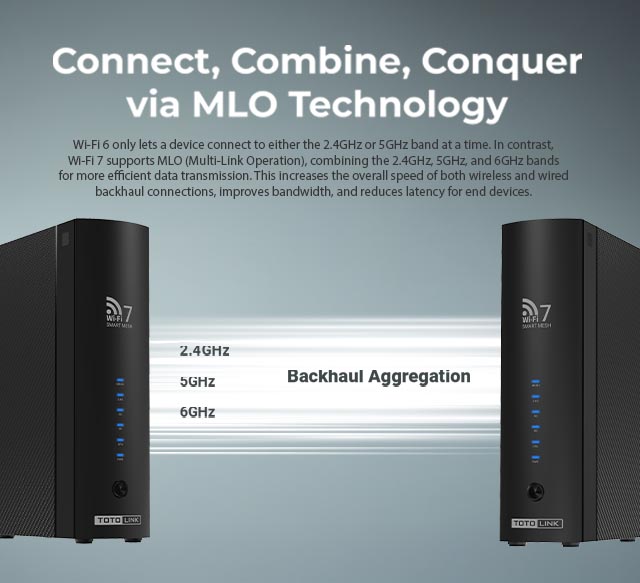

- Support MLO technology to significantly reduce latency and improve throughput- Supports easy and quick setup by smart phones.
- Supports 4K QAM technology, increasing peak rate by 20%
- Supports WPA/WPA2/WPA3 and WPA-PSK/WPA2-PSK encryption.
- Support OFDMA plus MRU technology, effectively improving data transmission efficiency and reducing latency
- Support 320MHz bandwidth on 6Ghz
- Support VPN server, Universal Repeater, Guest network, Smart QoS, Wi-Fi Scheduler.
- Parental Control on the router lets you easily manage content and time online on any connected device.
- Support 2.5Gbps Ethernet interface
- Supports Easy Mesh
|
Hardware | |

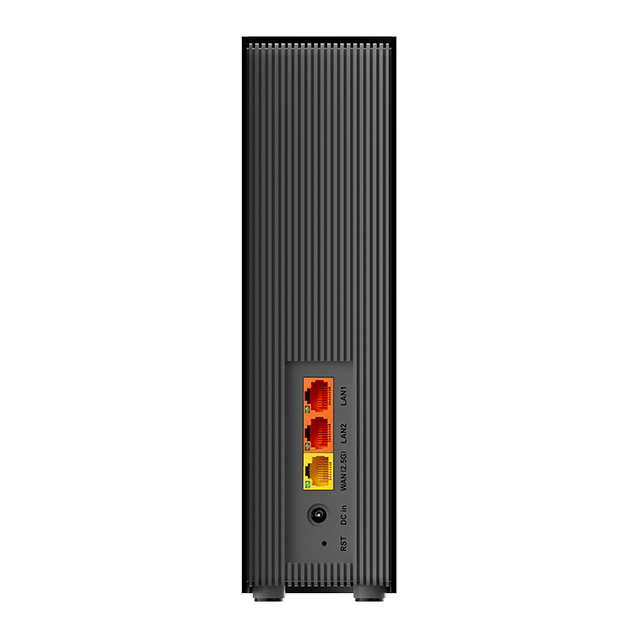

| Ethernet Port |
- 2*10/100/1000Mbps LAN Ports - 1*10/100/1000/2500Mbps WAN Port |
| Power Supply | - 12V DC/2A |
Antenna |
- 2 * Built-in 2.4G band antennas - 3 * Built-in 5G band antennas - 3 * Built-in 6G band antennas |
| Button | - DC/IN*1、MESH*1、RST*1 |

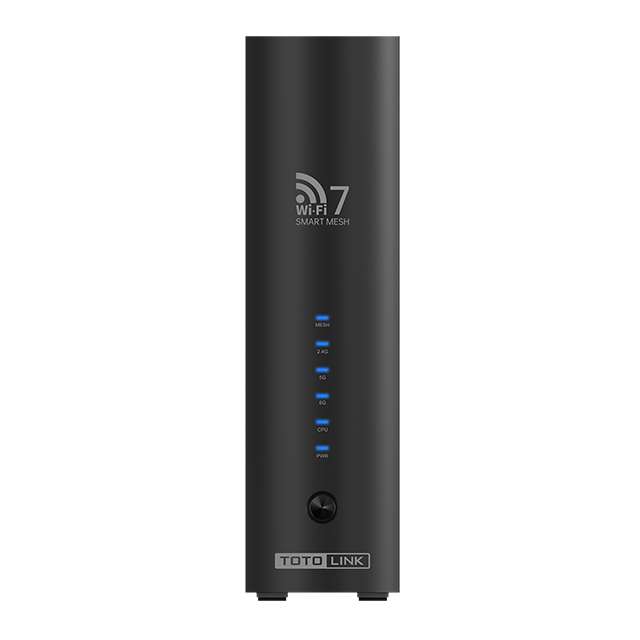

LED |
1*PWR、1* CPU，1* 6G/WIFI，5G/WIFI*1、2.4G/WIFI*1、MESH*1 |
| Dimensions (L x W x H) | - 235*160*65mm |
Wireless | |||||
| Standards |
- IEEE802.11n/g/b/a/ac/ax/be - IEEE802.3、IEEE802.3u、IEEE802.3ab，IEEE 802.3bz |
||||
| RF Frequency | - 2.4GHz/5GHz/6GHz |
||||
| Data Rate |
- 2.4G ：688Mbps - 5G ：4323Mbps - 6G ：8646Mbps |
||||
| EIRP |
- 2.4GHz < 20dBm - 5GHz < 23dBm - 6GHz < 23dBm |
||||
| Wireless Security | -WPA, WPA2,WPA3 and WPA-PSK/WPA2-PSK |
||||
Others | |||||
| Package Contents |

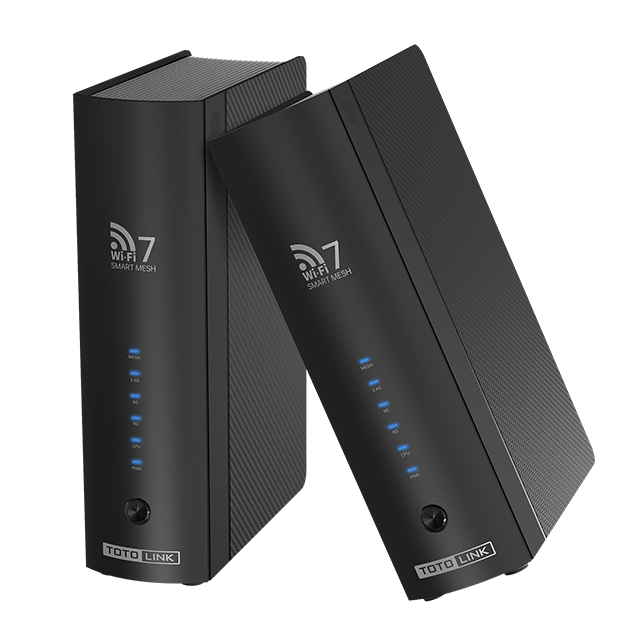

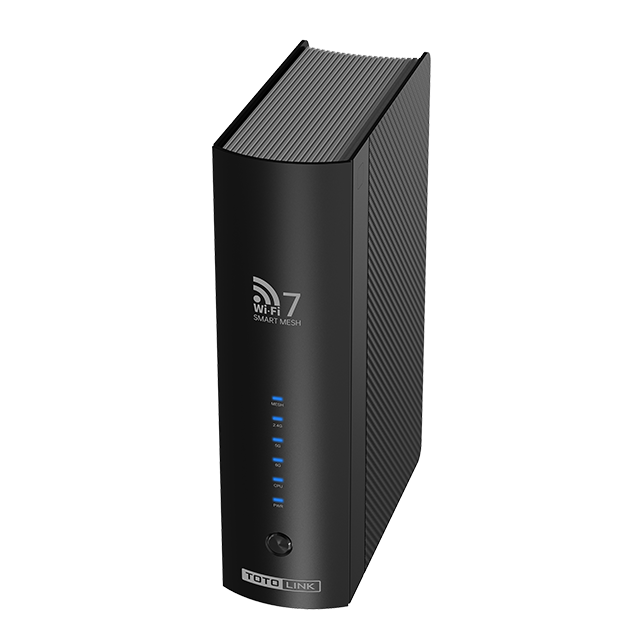

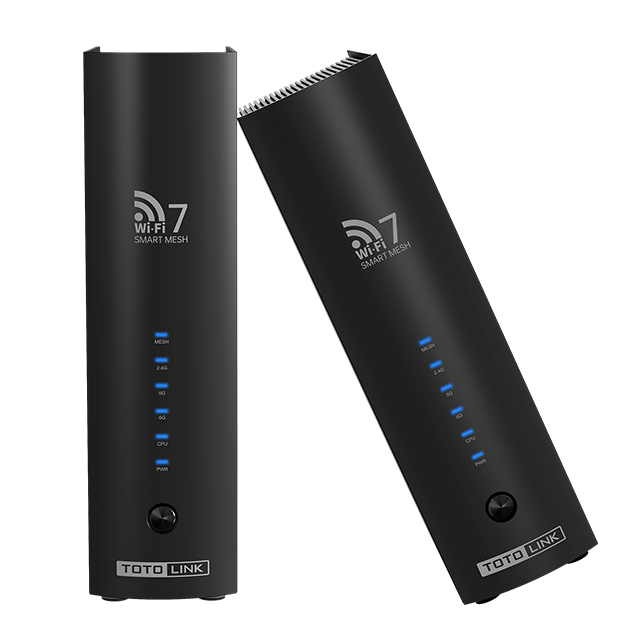

- BE14 Wireless Tri-band Wi-Fi 7 Router *1 - Power Adapter *1 - Ethernet Cable *1 |
||||
| Environment |
- Operating Temperature: 0℃~40 ℃ (32 ℉~104℉) - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) - Operating Humidity: 10%~90% non-condensing - Storage Humidity: 5%~90% non-condensing |
||||
