S808

8-Port 10/100Mbps Desktop Switch


- 8 10/100Mbps auto-negotiated RJ45 ports.

- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode.

- Mini plastic design supports desktop placement or wall mount.

- 1K entry MAC address table and automatic address learning.

- Auto-MDI/MDIX eliminates the need for crossover cables.

- Store-and-Forward switching scheme.

- Performs non-blocking full wired speed.


General

Standards

- IEEE 802.3

- IEEE 802.3u

- IEEE 802.3x

Interface

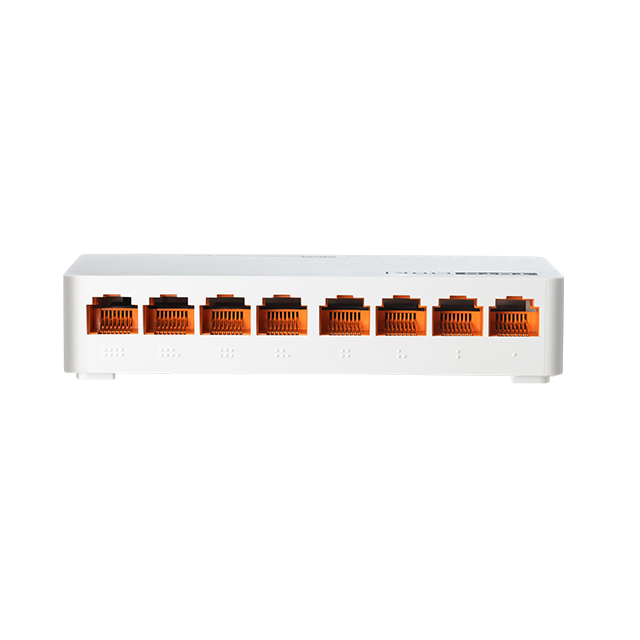

- 8*10/100Mbps auto-negotiation RJ-45 Ports (Auto MDI/MDIX)

Power Supply

- 5V DC/ 0.6A

Dimensions(L x W x H)

- 4.9 x 2.4 x 1.1in. (125 x 62 x 27mm)

LED Indicators

- 1* Power

- 8*LANs

MAC Address Learning

- Auto-learning

- Auto-Aging

MAC Address Table

- 1K
Network Media - 10BASE-T: UTP Cat 3 or above cable

- 100BASE-TX: UTP Cat 5, 5e or above cable

Backup Bandwidth

- 1.6Gbps

Transmission Method

- Store-and-forward
Others
Package Contents

- S808 Desktop Switch *1

- Power Adapter

- Quick Installation Guide *1

Environment

- Operating Temperature: 0℃~50 ℃ (32 ℉~122℉)

- Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)

- Operating Humidity: 5%~95% non-condensing

- Storage Humidity: 5%~95% non-condensing
