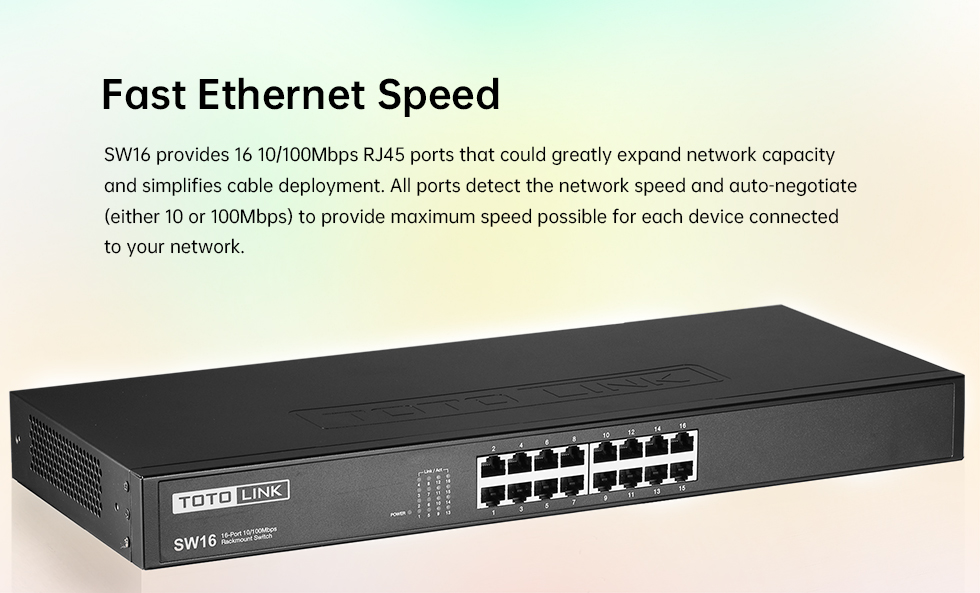

- 16 10/100Mbps auto-negotiated RJ45 ports.
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode.
- 8K entry MAC address table and automatic address learning.
- Auto-MDI/MDIX eliminates the need for crossover cables.
- Store-and-Forward switching scheme.
- Performs non-blocking full wired speed.

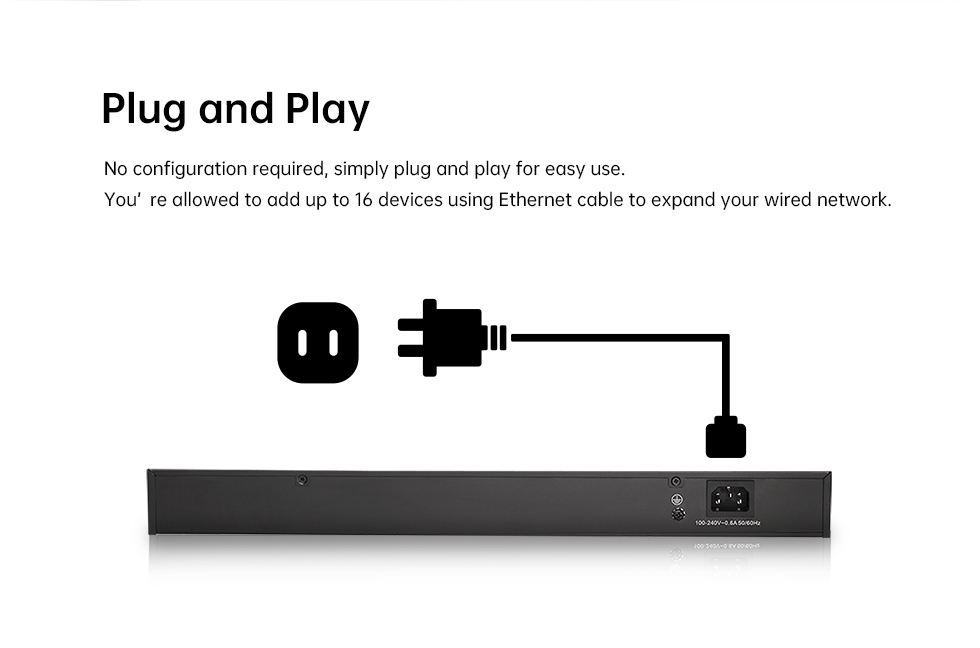

- Plug and Play.

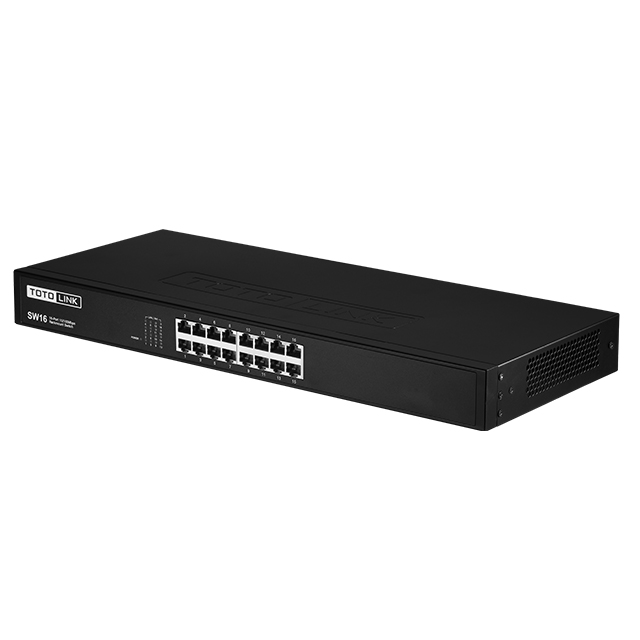

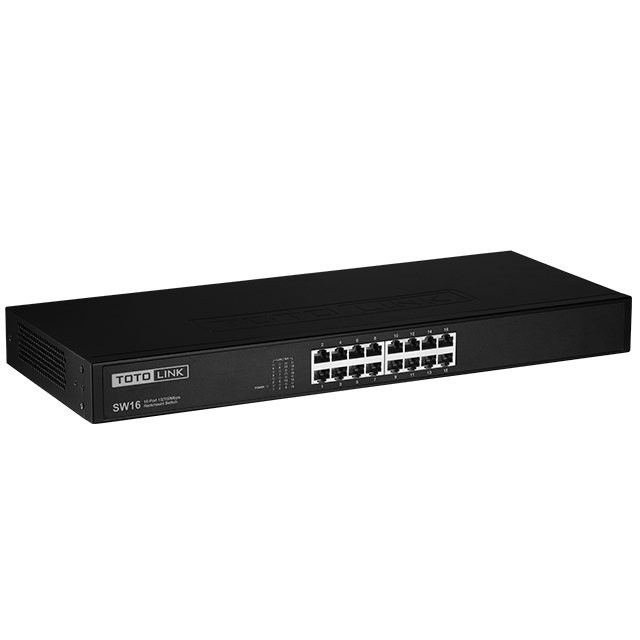

- Standard 19-inch rackmount steel case.
General | |
|---|---|
| Standards |
- IEEE 802.3 - IEEE 802.3u - IEEE 802.3x |
| Interface | - 16*10/100Mbps auto-negotiation RJ-45 Ports (Auto MDI/MDIX) |
| Power Supply | - AC 100-240V 50/60Hz |
Dimensions(L x W x H) |
- 17.3 x 7.1 x 1.7in. (440 x 180 x 44mm) |
| LED Indicators |
- 1*Power, - Link/Act (1~16) |
MAC Address Learning |
- Auto-learning, - auto-aging |
MAC Address Table |
- 8K |
| Network Media |
- 10BASE-T: UTP Cat 3 or above cable - 100BASE-TX: UTP Cat 5, 5e or above cable |
| Backup Bandwidth | - 3.2Gbps |
Transmission Method |
- Store-and-forward |
| Package Contents |
- SW16 Rackmount Switch *1 - Quick Installation Guide *1 - Power Cable *1 - Rackmount Kit *1 |
| Environment |
- Operating Temperature: 0℃~40 ℃ (32 ℉~104℉) - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) - Operating Humidity: 10%~90% non-condensing - Storage Humidity: 10%~90% non-condensing |
