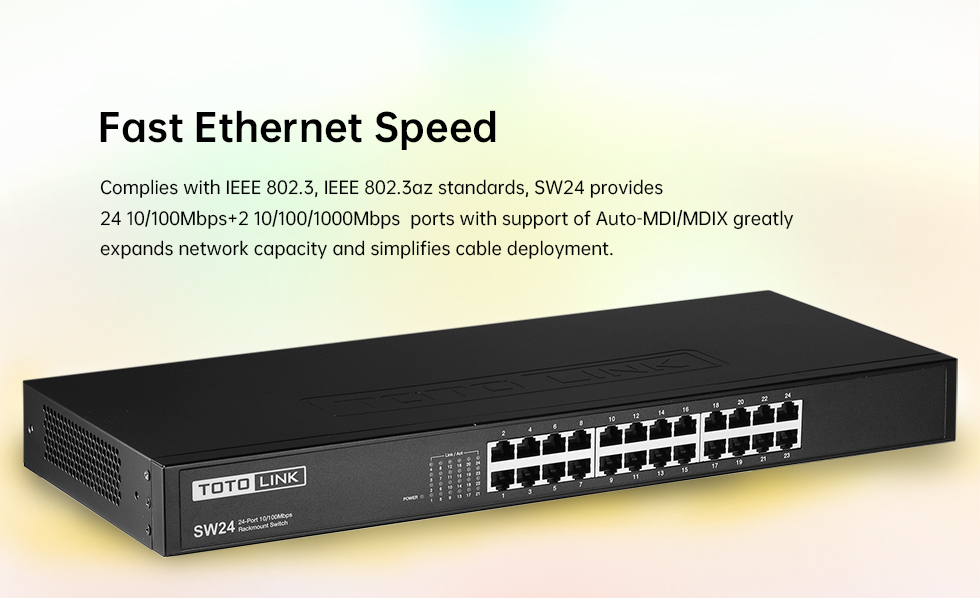

- 24 10/100Mbps auto-negotiated RJ45 ports.
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode.
- 8K entry MAC address table and automatic address learning.
- Auto-MDI/MDIX eliminates the need for crossover cables.
- Store- and-Forward Switching scheme.
- Performs non-blocking full wired speed.
- Standard 19-inch rack-mountable steel case.
General | |
|---|---|
| Standards |
- IEEE 802.3, - IEEE 802.3u, - IEEE 802.3x |
| Interface | - 24*10/100Mbps auto-negotiation RJ-45 Ports (Auto MDI/MDIX) |
| Power Supply | - AC 100-240V 50/60Hz |
Dimensions |
- 17.3 x 7.1 x 1.7in. (440 x 180 x 44mm) |
| LED | - 1*Power, 24*LANs |
MAC Address Learning |
- Auto-learning, auto-aging |
MAC Address Table |
- 8K |
Network Media |
- 10BASE-T: UTP Cat 3 or above cable - 100BASE-TX: UTP Cat 5, 5e or above cable |
Backup Bandwidth |
- 4.8Gbps |
Transfer Method |
- Store-and-Forward |
Environment |
- Operating Temperature: 0℃~40℃ (32℉~104℉) - Storage Temperature: -40~70℃ (-40℉~158℉) - Operating Humidity: 10%~90% non-condensing - Storage Humidity: 5%~90% non-condensing |
Package Contents |
- SW24 Rackmount Switch *1 - Quick Installation Guide *1 - Power Cable *1 - Rackmount Kit *1 |
