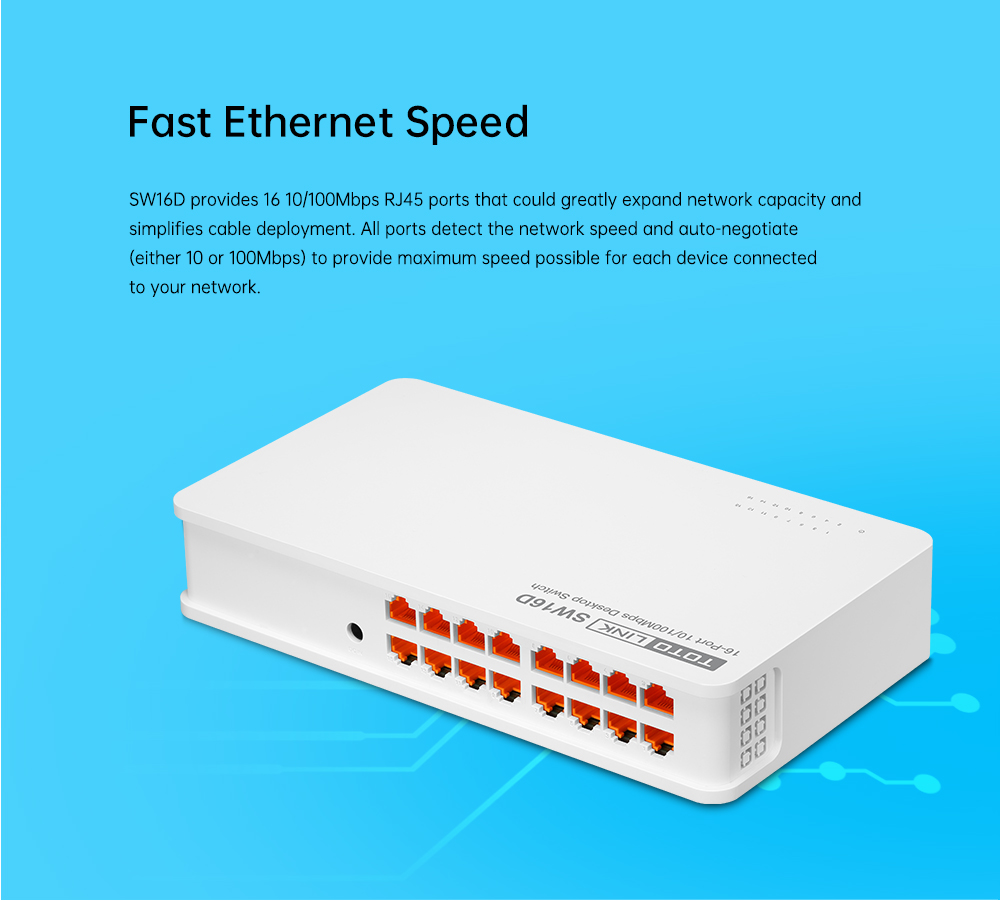

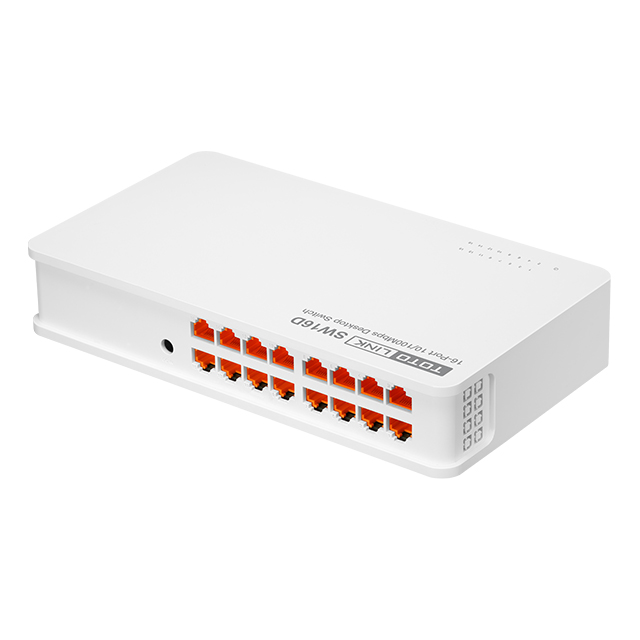

- 16 10/100Mbps auto-negotiated RJ45 ports.
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode.
- 8K entry MAC address table and automatic address learning.

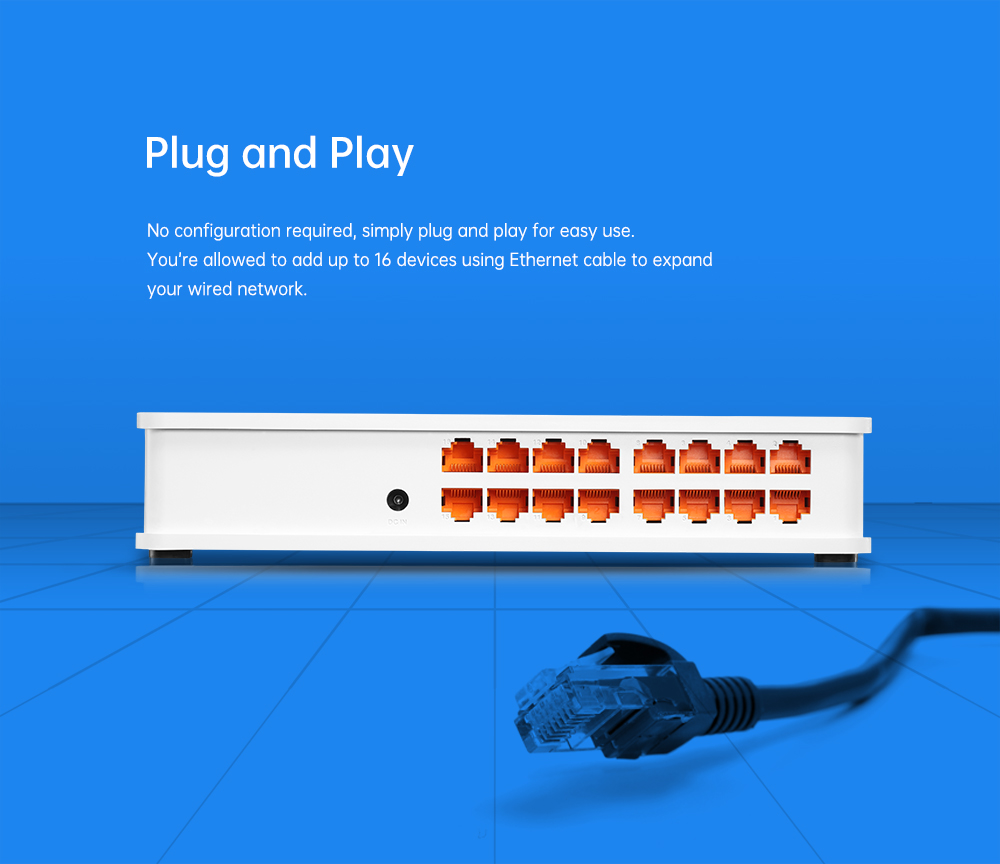

- Auto-MDI/MDIX eliminates the need for crossover cables.
- Store- and-Forward Switching scheme.
- Performs non-blocking full wired speed.

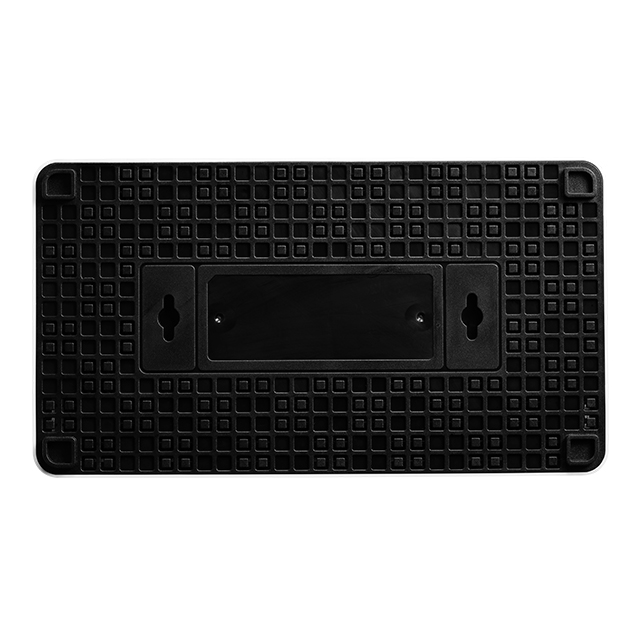

- Desktop and wall-mounting design.
General | |
|---|---|
| Standards |
- IEEE 802.3 - IEEE 802.3u - IEEE 802.3x |

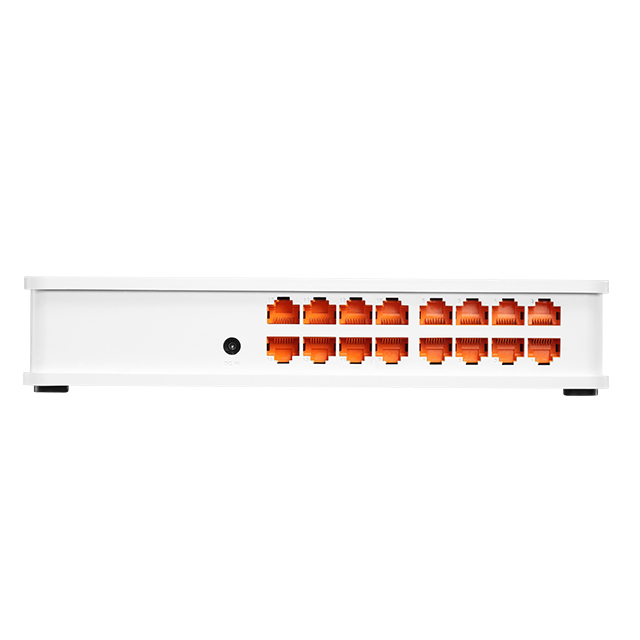

| Interface | - 16*10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) |
| Power Supply | - 9V DC/800mA |

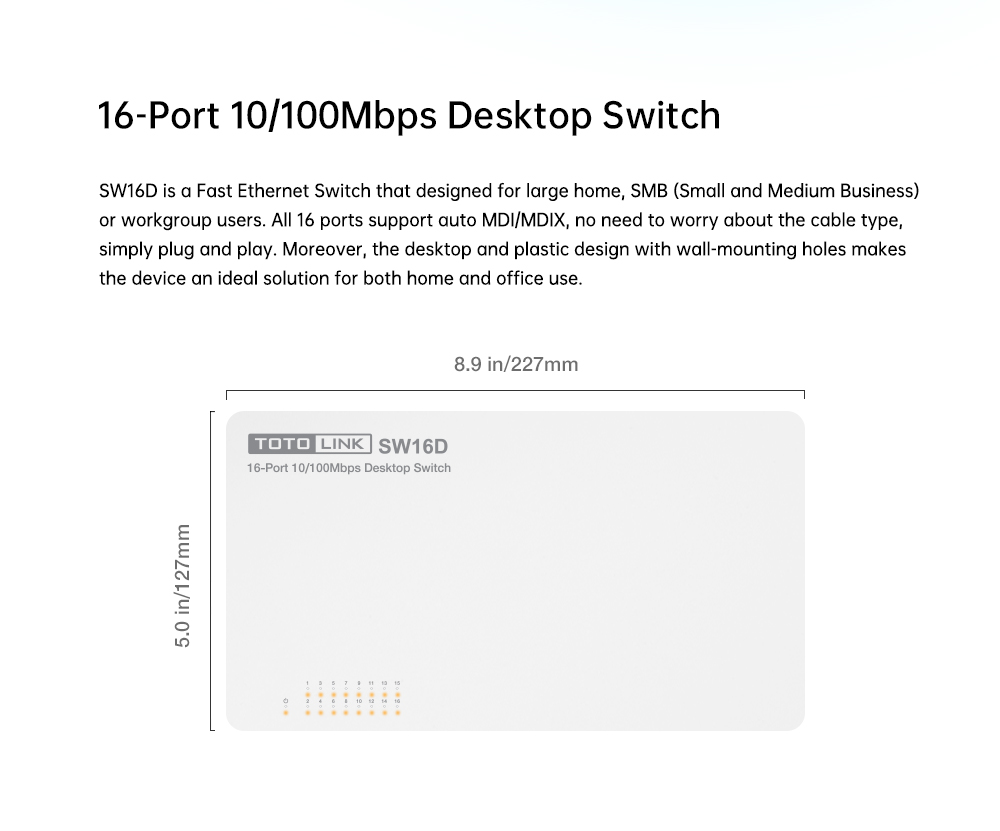

Dimensions(L x W x H) |
- 8.9 x 5.0 x 1.8in. (227 x 127 x 45mm) |
| LED Indicators |
- 1*Power, - Link/Act (1~16) |
MAC Address Learning |
- Auto-learning - Auto-aging |
MAC Address Table |
- 8K |
| Switching Capacity | - 4.8Gbps |
| Network Media | - 10BASE-T: UTP Cat 3, 4, 5 cable - 100BASE-TX: UTP Cat 5, 5e or above cable |
| Frame Filtering | - 10Mbps: 14,880pps - 100Mbps: 148,800pps |
Transfer Method |
- Store-and-Forward |
| Environment |
- Operating Temperature: 0℃~40 ℃ (32 ℉~104℉) - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) - Operating Humidity: 10%~90% non-condensing - Storage Humidity: 5%~95% non-condensing |
| Package Contents |
- SW16D Desktop Switch - Power Adapter - Quick Installation Guide |
