- 16 10/100/1000Mbps auto-negotiated RJ45 ports.
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode.
- 32Gbps Switching Capacity.
- Auto-MDI/MDIX eliminates the need for crossover cables.
- Store and forward Switching scheme.

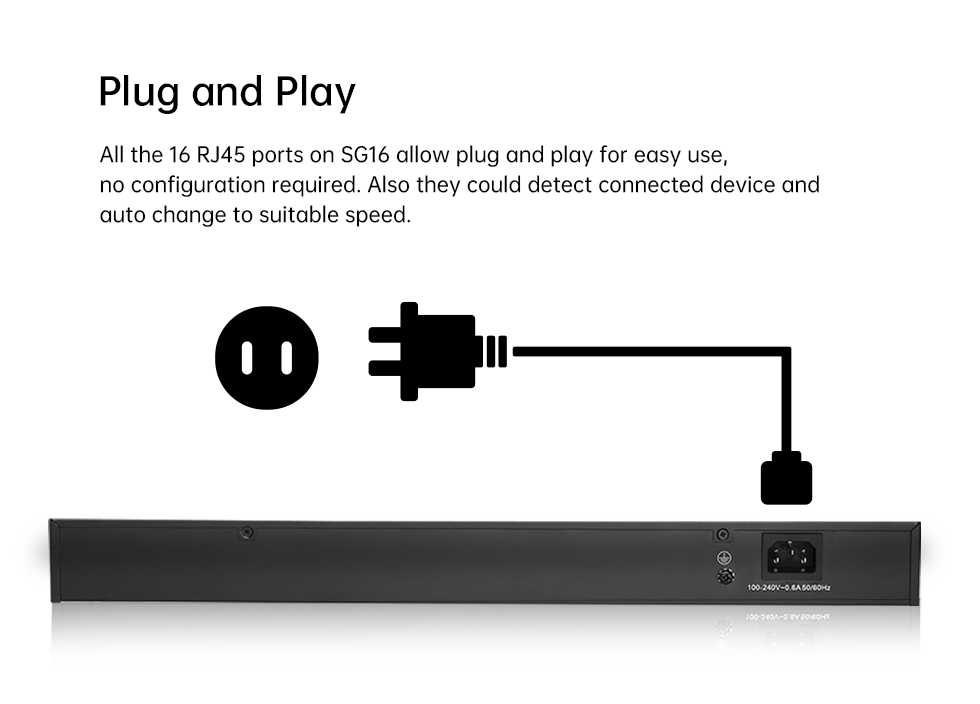

- Plug and Play.
- Standard 19-inch rackmount steel cas
General | |
|---|---|
| Standards | - IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
| Interface | - 16*10/100/1000Mbps auto-negotiation RJ-45 Ports (Auto MDI/MDIX) |
| Power Supply | - 100V~240VAC, 50/60Hz |
Dimensions(L x W x H) |
- 440mm x 160mm x 44.6mm |
LED Indicators |
- 1*Power, - Link/Act (1~16) |
MAC Address Learning |
- Auto-learning, auto-aging |
MAC Address Table |
- 8K |
Network Media |
- 10BASE-T: UTP Cat 3, 4, 5 cable (100m, max) - 100BASE-TX/1000BASE-T: UTP Cat 5, 5e or above cable |
Backup Bandwidth |
- 32Gbps |
Transmission Method |
- Store-and-forward |
| Package Contents | - SG16 Rackmount Switch *1 - Quick Installation Guide - Power Cable *1 - Rackmount Kit *1 |
Environment |
- Operating Temperature: 0℃~50℃ (32℉~122℉) - Storage Temperature: -40~70℃ (-40℉~158℉) - Operating Humidity: 5%~95% non-condensing - Storage Humidity: 5%~95% non-condensing |
