How to use URL Service via Router?


     It is suitable for: A2004NS,A5004NS,A6004NS


Application introduction:TOTOLINK Routers with one USB port supports URL Service to make file sharing easier.


STEP-1:

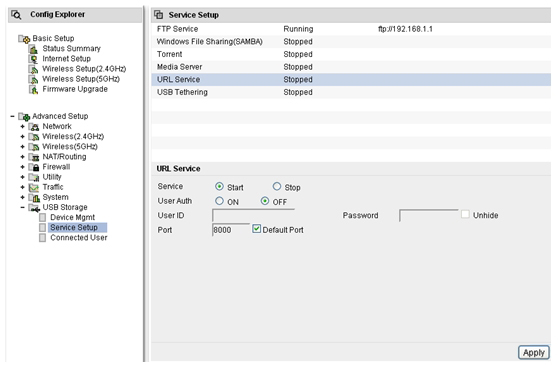

Log into the Web page, choose Advanced Setup ->USB Storage ->Service Setup. Click URL Service.


STEP-2:

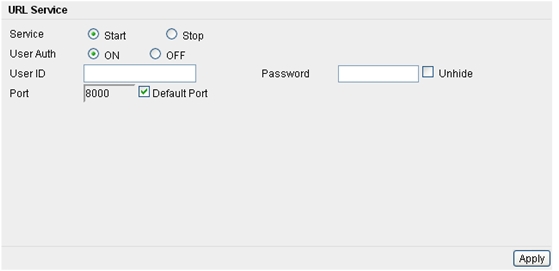

The URL Service page will show up below and please choose Start to enable the service.


User Auth: enable or disable login authentication.

User ID & Password: If you enabled login authentication, please provide the User ID & Password for verifying.

Port: enter the port number to use, the default is 8000.


STEP-3:

Then connect to the router by cable or WiFi.

STEP-4:

Type in the website (URL to connect) to the address bar of the web browser.


STEP-5:

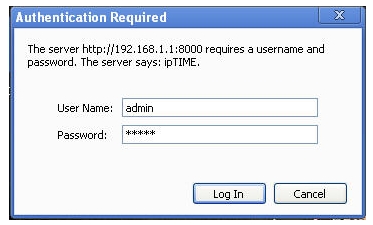

Enter the User name and password that you have set before, and then click Log In.


STEP-6:

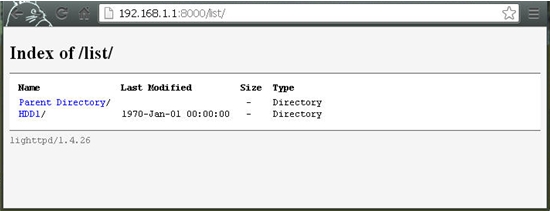

The list interface will appear and double click the file name of your USB device (e.g.HDD1).


STEP-7:

Now you can visit and download the data in the USB storage.
