A3 Change the WIFI password setting


     It is suitable for: A3


Application : Solution about how to change the wireless name and password on the TOTOLINK products


STEP-1:

Connect your computer to the router by cable, enter http://192.168.0.1


Note:The default access address varies depending on the actual situation. Please find it on the bottom label of the product.


STEP-2:

User Name and Password are required, by default both are admin in lowercase letter. Meanwhile you should fill in the vertification code. Then Click Login.


STEP-3:

Then click the Advance setup bottom


STEP-4:

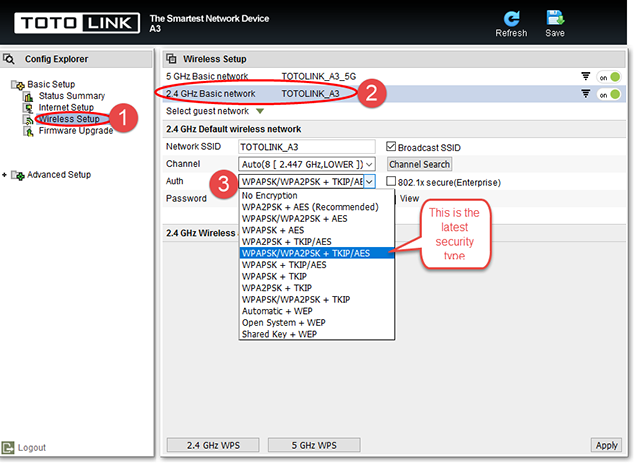

    Please go to Wireless page, and check which you have selected. then Click 2.4GHz Basic network.

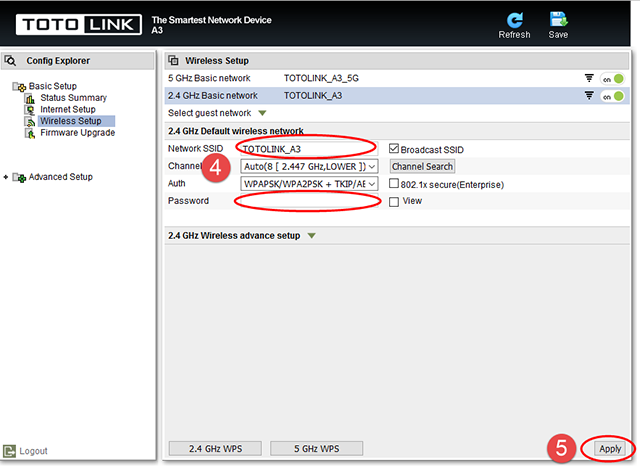

    Select WPAPSK/WPA2PSK+TKIP/AES, then Input your own Wireless Network Name and Password, then Click Apply.



STEP-5:

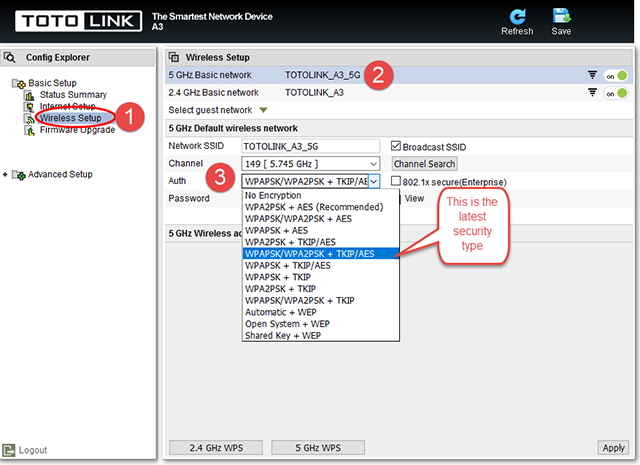

    Please go to Wireless page, and check which you have selected.then Click 5GHz Basic network.

Select WPAPSK/WPA2PSK+TKIP/AES, then Input your own Wireless Network Name and Password, then Click Apply.
