This document applies to A3
Diagram
Preparation
● Before configuration, make sure that both A Router and B Router are powered on.
● make sure you know the SSID and password for A router
● Connect your computer to the same network of router A and B.
● move the B router closer to the A router to find the B routing signals better for fast repeater.
● Set both Router A and B should to the same band 2.4G or 5G.
Set up steps

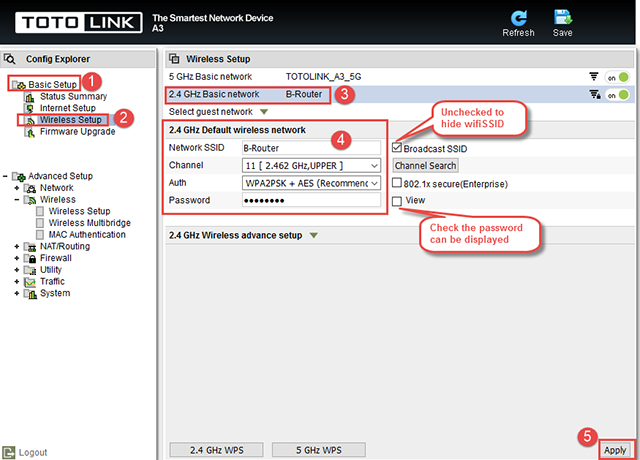

STEP-1 B-Router Wireless Setup
You need to enter the settings page of the router B, then follow the steps illustrated.
In the navigation bar, select Basic Setup->Wireless Setup-> Select 2.4GHz Basic network
Setting Network SSID, channel, Auth, password
Click the Apply button
Repeat the steps 3 through 5 to complete the 5GHz Wi-Fi configuration

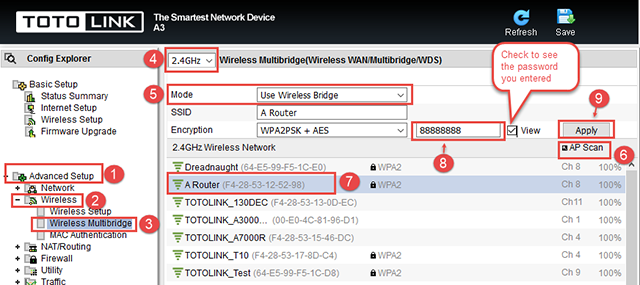

STEP-2 B-Router repeater setting
Enter the settings page of the router B, then follow the steps illustrated.
In the navigation bar, select Advanced Setup->Wireless->Wireless Multibridge
For Wireless Multibrige, select 2.4GHz. If you want to use 5GHz for Repeater, choose 5GHz.
In Mode list, select Use Wireless Bridge.
Click the Ap Scan button
Click AP you need repeater, check SSID
Enter the password for router A (You can check the box next to check the password you entered)
Click the Apply button, Wait for the configuration to finish.

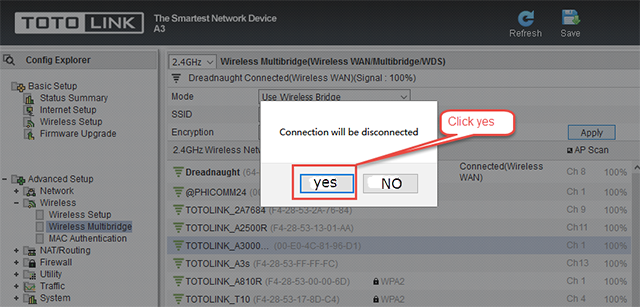

Note: If repeater success, but you need to replace the network for repeater, there will be
prompted the following figure, click yes
STEP-3 B Router position display
Move the Router B to a different location for a best Wi-Fi access.
