| It is suitable for: EX300 |
Application: Since some Mac users got a router without WPS button, and they need to extend WiFi by EX300, what they need to do is to setup the IP address on Mac OS first.
Mac Settings
1.Search for SSID ‘TOTOLINK EX300’, click connect.
2.After connected successfully, please launch ‘System Preferences’ from the Apple menu.
3.Click on the “Network” icon.
4.In the lower right, click on the ‘Advanced’ button.
5.Choose ‘TCP/IP’, in the pulldown menu next to “Configure IPv4” select “Manually”
6.Fill in the IP address: 192.168.1.100
subnet mask: 255.25.255.0
router: 192.168.1.254.
7.Click ‘OK’.
8.Click ‘Apply’.

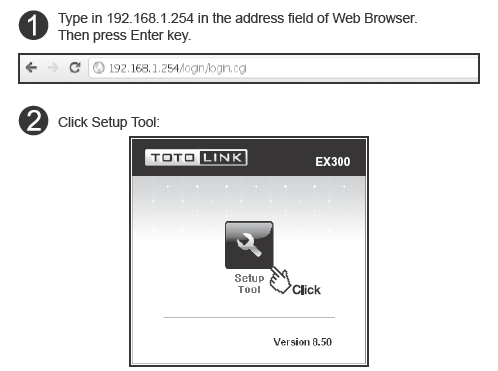

EX300 Web Log in
Open any browser
