How to configure PPPoE on ADSL Modem Router？

STEP-1:

Connect to the Modem Router by cable or wireless at first. Type in 192.168.1.1 in the address field of web browser and then press Enter key.

STEP-2:

Then below window will pop up that requires you to enter valid User Name and Password.

Enter admin for User Name and Password, both in lower case letters. Then click LOGIN button or press Enter key.

STEP-3:

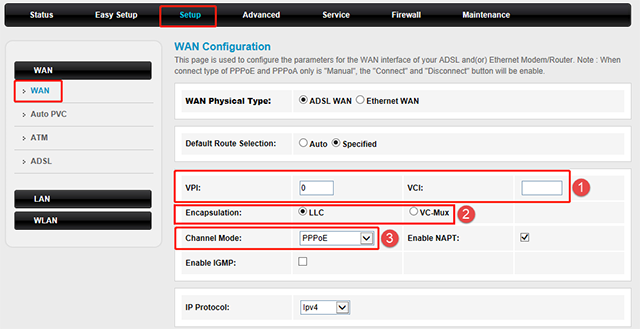

Now you have logged into the web interface of the Modem Router. Then click Setup->WAN,you can setup the PPPoE connection.

Note: VPI and VCI are provided by the ISP

STEP-4:

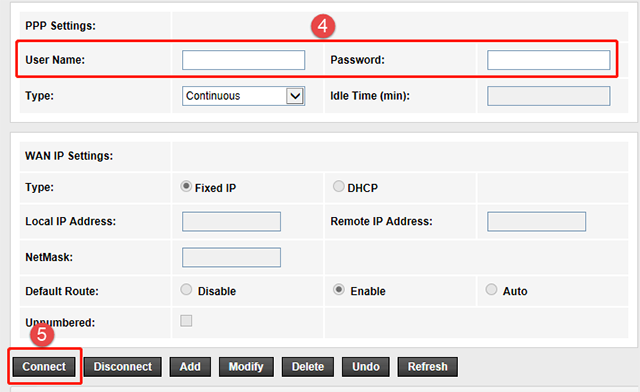

After chose the PPPoA/PPPoE type, you should enter the account and password provided by you ISP in the corresponding field.
