How to configure Basic Setting of ADSL Modem Router


     It is suitable for: ND150, ND300


STEP-1:

Connect your computer to the router by cable, enter http://192.168.1.1.

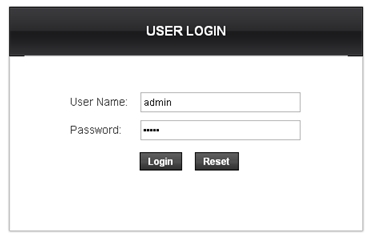

STEP-2:

User Name and Password are required, by default both are admin in lowercase letter. Click Login.

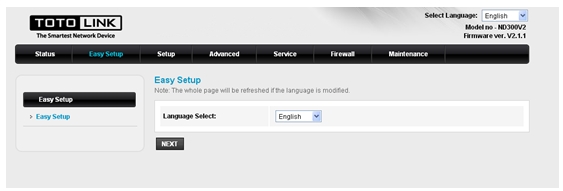

STEP-3:

First, the Easy Setup page will turn up for basic and quick settings, choose one language, click NEXT.

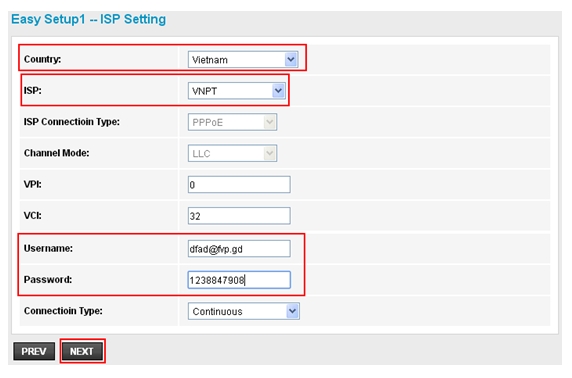

STEP-4:

Choose your country and the ISP you cooperates, enter User Name, Password provided by your ISP, click NEXT.

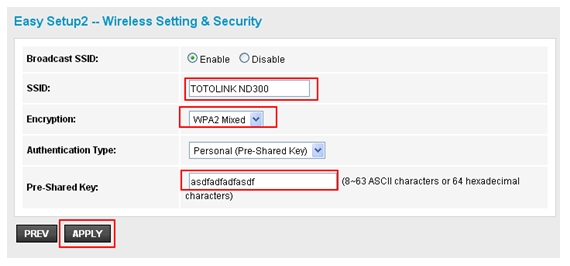

STEP-5:

By default, the SSID is TOTOLINK ND300, you can change it as you like. Then select WPA2 Mixed (Recommended) for Encryption. Enter password, click APPLY to make all settings work.
