This FAQ is suitable for: All TOTOLINK dual band Router |
Application: IEEE 802.11ac is a wireless computer networking standard in the 802.11 family, developed in the IEEE Standards Association process, providing high-throughput wireless local area networks (WLANs) on the 5 GHz band.
Comparison of Wireless-AC and Wireless-N technologies:
1. Throughput

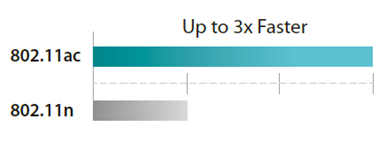

The 802.11n Wi-Fi connections max out at around 150Mbps with one antenna, 300Mbps with two and 450Mbps with three antennas. 802.11ac connections will be roughly three times faster - so that's 450Mbps, 900Mbps and 1.3Gbps respectively.
2. Channel Bandwidth
Mandatory 80 MHz channel bandwidth for stations, 160 MHz available optionally
40 MHz maximum in 802.11n
3. Modulation
256-QAM, rate 3/4 and 5/6, added as optional modes in 802.11ac
64-QAM, rate 5/6 maximum in 802.11n
4. MIMO spatial streams
Up to eight spatial streams in 802.11ac (vs. four in 802.11n)
