How to setup N200RE V3 Multi-SSID


     It is suitable for: N100RE, N150RT, N200RE, N210RE, N300RT, N302R Plus


Application: Multi-SSID allows users to create multiple WiFi networks with different priority. It is good for access control and data privacy.


Suitable for N200RE-V3.

STEP-1:

Connect your computer to the router by cable or wireless, then login the router by entering http://192.168.0.1 into the address bar of your browser.


Note:The default access address varies depending on the actual situation. Please find it on the bottom label of the product.


STEP-2:

User Name and Password are required, by default both are admin in lowercase letter. Click LOGIN.


STEP-3:

First, the Easy Setup page will turn up for basic and quick settings, click Advanced Setup.



STEP-4:

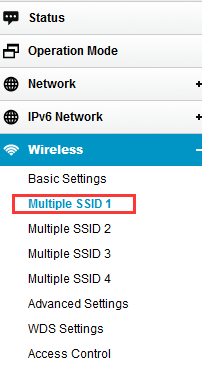

Click Wireless Setting->Multiple SSID1 on the left navigation bar.


STEP-5:

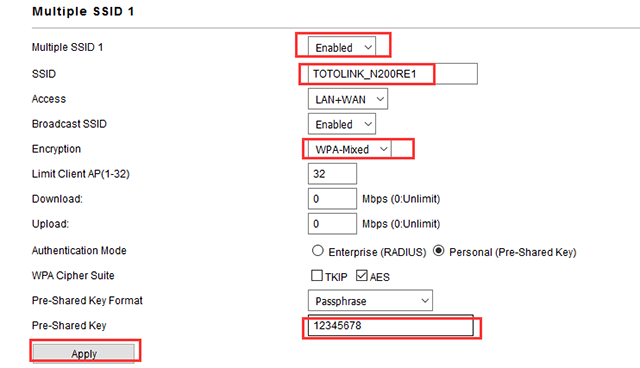

Choose Enable to add more SSID. Then enter SSID, choose Encryption method, define password, click Apply.
