It is suitable for: N100RE, N150RH, N150RT, N151RT, N200RE, N210RE, N300RT, N301RT , N300RH, N302R Plus, A702R, A850, A3002RU. |
Application:This router has a built-in real time clock which can update itself manually or automatically by means of Network Time Protocol (NTP). As a result, you can schedule the router to dialup to the Internet at a specified time, so that users can connect to the Internet only during certain hours.
STEP-1:
Please login to the web-configuration Interface of the router.
STEP-2: Check Time Zone Setting
Before using schedule function you have to set your time correctly.

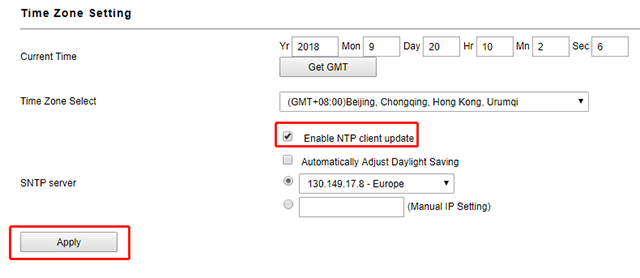

2-1. Click System->Time Zone Setting in the sidebar.
2-2. Enable NTP client update and choose the SNTP server, click Save Changes button for saving changes.
STEP-3: Wireless Schedule Setup

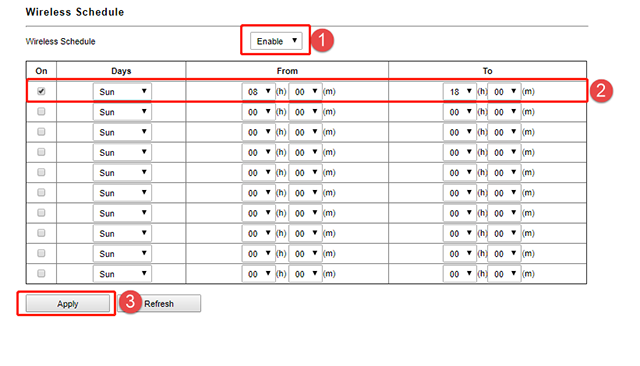

3-1. Click Wireless->Wireless Schedule
3-2. Enable the schedule at first, in this section, you can setup the specify time so the WiFi will be on during this period.
The picture is a example, and WiFi will be on from eight o’ clock to eighteen o’clock on Sunday.
