It is suitable for: N100RE, N150RH, N150RT, N151RT, N200RE, N210RE, N300RT, N301RT , N300RH, N302R Plus, A702R, A850, A3002RU |
Application:Solution about how to configure IP Address and Port Filtering on TOTOLINK.
STEP-1:
Connect your computer to the router by cable or wireless, then login the router by entering http://192.168.0.1 into the address bar of your browser.
Note:The default access address varies depending on the actual situation. Please find it on the bottom label of the product.
STEP-2:
User Name and Password are required, by default both are admin in lowercase letter. Click LOGIN.
STEP-3:

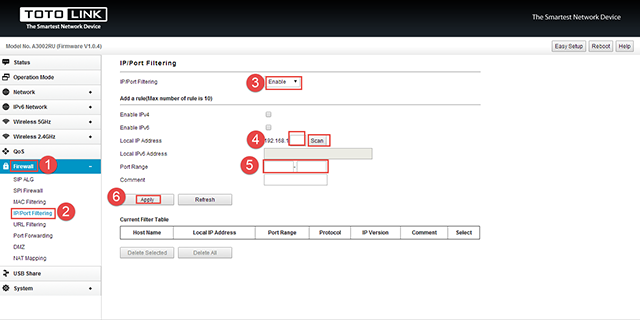

Please go to Firewall ->IP/Port filtering page, and check which you have selected.Select Enable, then Input IP Address and Port Range you want to restrain , then Click Apply.
STEP-4:

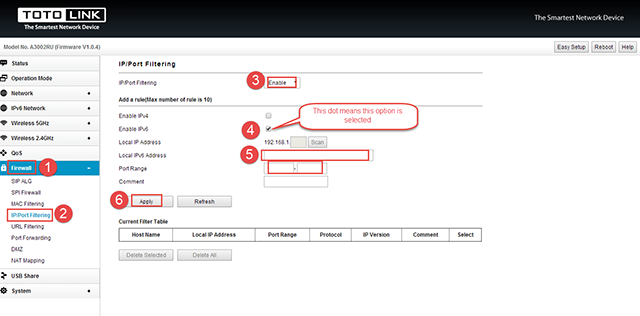

Please go to Firewall ->IP/Port filtering page, and check which you have selected.Select Enable, then Input IP Address and Port Range you want to restrain , then Click Apply.
