A3002RU MAC filter settings

Application:Solution about how to configure Wireless MAC Filtering on TOTOLINK router

STEP-1:

Connect your computer to the router by cable or wireless, then login the router by entering http://192.168.0.1 into the address bar of your browser.

Note:The default access address varies depending on the actual situation. Please find it on the bottom label of the product.

STEP-2:

User Name and Password are required, by default both are admin in lowercase letter. Click LOGIN.

STEP-3:

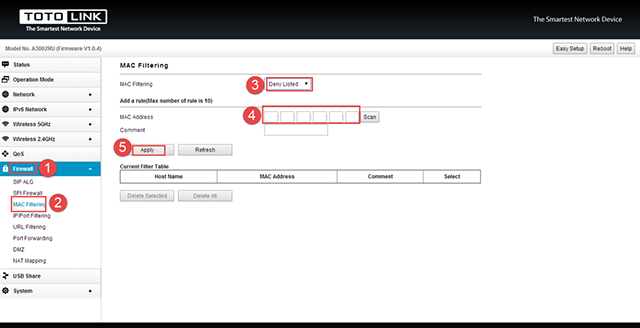

Please go to Firewall ->MAC filtering   page, and check which you have selected.

Select Deny list, then Input MAC Address you want to restrain , then Click Apply.

STEP-4:

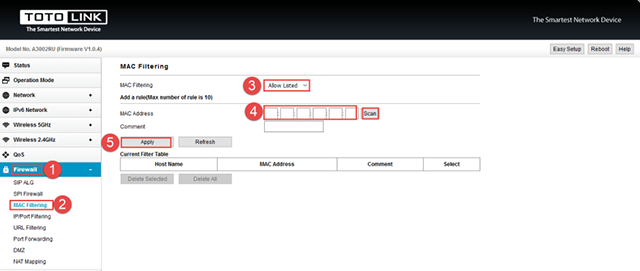

Please go to Firewall ->MAC filtering   page, and check which you have selected.

Select Allow list, then Input MAC Address you want to allow to surf the Internet and those you do not fill in will be restrained , then Click Apply.

Note: You need add items in this way one by one.
