A3002RU Multiple SSID settings

Application:Solution about how to configure multiple SSID for TOTOLINK products.

STEP-1:

Connect your computer to the router by cable or wireless, then login the router by entering http://192.168.0.1 into the address bar of your browser.

Note:The default access address varies depending on the actual situation. Please find it on the bottom label of the product.

STEP-2:

User Name and Password are required, by default both are admin in lowercase letter. Click LOGIN.

STEP-3:

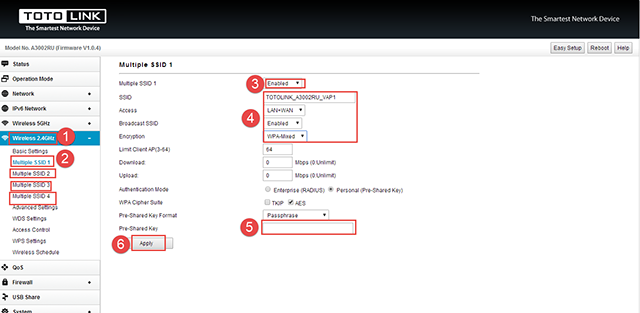

Please go to Wireless 2.4GHz ->Multiple SSID 1 page, and check which you have selected. Select Enable , then Input your own SSID and Pre-Shared Key, then Click Apply and repeat this operation to Multiple SSID 2，Multiple SSID 3 and Multiple SSID 4.

STEP-4:

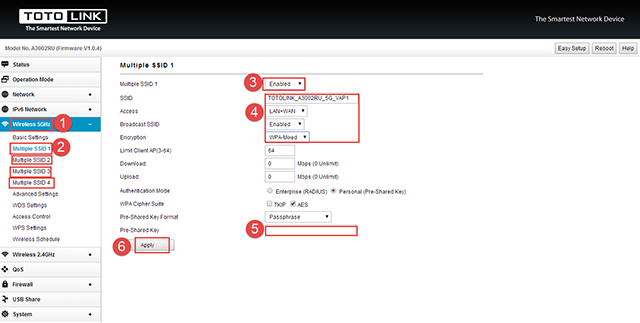

Please go to Wireless 5GHz ->Multiple SSID 1 page, and check which you have selected.

Select Enable , then Input your own SSID and Pre-Shared Key, then Click Apply

and repeat this operation to Multiple SSID 2，Multiple SSID 3 and Multiple SSID 4.
