It is suitable for: N100RE, N150RH, N150RT, N151RT, N200RE, N210RE, N300RT, N301RT , N300RH, N302R Plus, A702R, A850, A3002RU |
Application:Solution about how to upgrade Firewall on the TOTOLINK products.
STEP-1:
Connect your computer to the router by cable or wireless, then login the router by entering http://192.168.0.1 into the address bar of your browser.
Note:The default access address varies depending on the actual situation. Please find it on the bottom label of the product.
STEP-2:
User Name and Password are required, by default both are admin in lowercase letter. Click LOGIN.
STEP-3: Upgrade the software setting

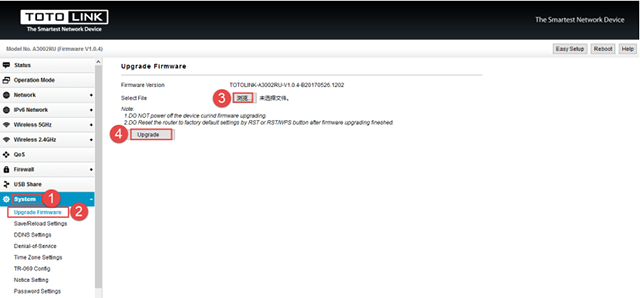

Please go to System ->Upgrade Firmware page, and check which you have selected.
Select Local Upgrade files, then Click Upgrade
Then select Save/Reload Settings and click reset .
Note:DO Reset the router to factory default settings by RST or RST/WPS button after firmware upgrading fineshed.
STEP-4: System reset
Please go to System->Save/Reload Settiings page, and check which you have selected.Then Click Reset

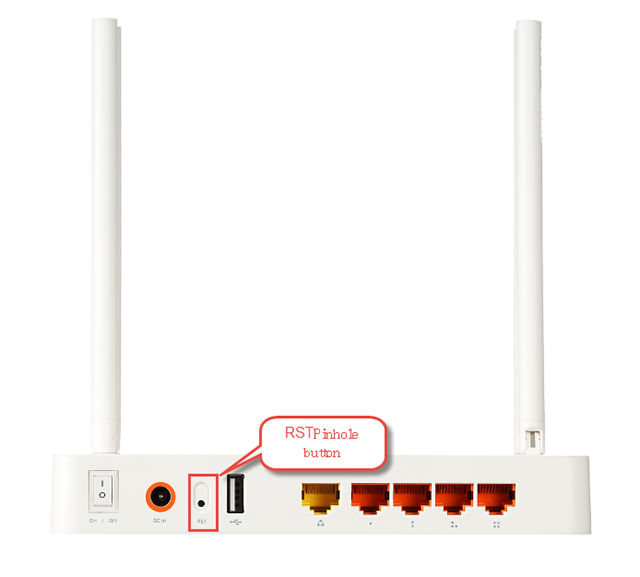

Or please find the RST bottom in the box and use needle to press down the bottom more than five seconds.
