It is suitable for: N600R, A800R, A810R, A3100R, T10, A950RG, A3000RU |
Application introduction: Solution about how to upgrade Firewall on the TOTOLINK products
STEP-1:
Connect your computer to the router by cable or wireless, then login the router by entering http://192.168.0.1 into the address bar of your browser.
Note:The default access address varies depending on the actual situation. Please find it on the bottom label of the product.
STEP-2:
User Name and Password are required, by default both are admin in lowercase letter. Click LOGIN.
STEP-3: Upgrade the software setting

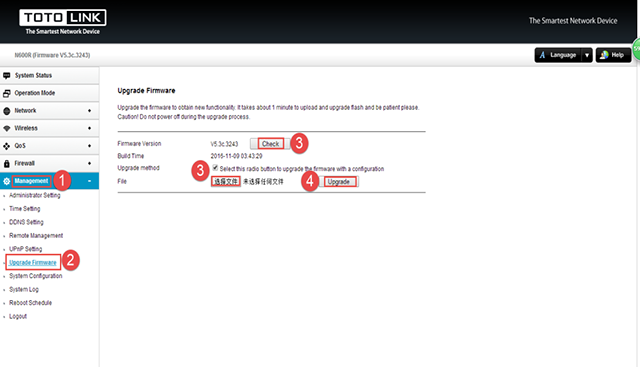

Please go to Management ->Upgrade Firmware page, and check which you have selected.
Select Check when you can surf the internet or you can click the Upgrade method and Select Local files ,then Click Upgrade.
Note:
1.DO NOT power off the device curind firmware upgrading.
2.DO Reset the router to factory default settings by RST or RST/WPS button after firmware upgrading fineshed.
STEP-4: System reset

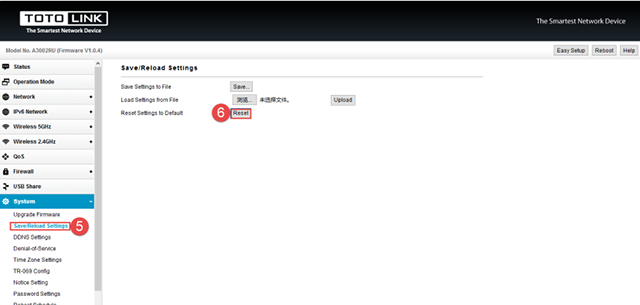

Please go to System->Save/Reload Settiings page, and check which you have selected.Then Click Reset
Or please find the RST bottom in the box and use needle to press down the bottom more than five seconds
