N600R WiFi schedule settings

     It is suitable for: N600R, A800R, A810R, A3100R, T10, A950RG, A3000RU


Application introduction: Solution about how to control the time of surfing the Internet by wi-fi for TOTOLINK products.This document takes N600R as an example.


STEP-1:

Connect your computer to the router by cable or wireless, then login the router by entering http://192.168.0.1 into the address bar of your browser.


Note:The default access address varies depending on the actual situation. Please find it on the bottom label of the product.


STEP-2:

User Name and Password are required, by default both are admin in lowercase letter. Click LOGIN.



STEP-3:

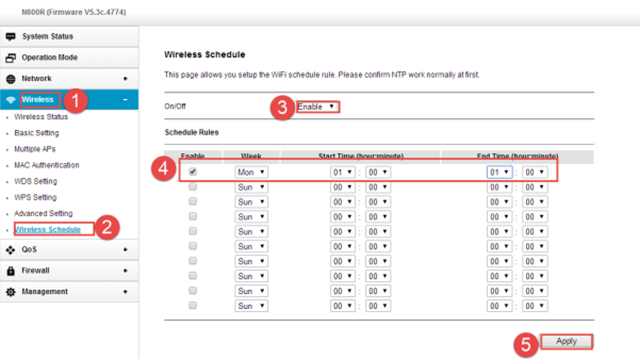

    Please go to Wireless ->Wireless Schedule, and check which you have selected.

    Select Enable and time you want to restrain in to surf the Internet, then Click Apply.
