It is suitable for: N600R |
Application introduction: Solution about how to set repeater mode on TOTOLINK products.
STEP-1:
Connect your computer to the router by cable or wireless, then login the router by entering http://192.168.0.1 into the address bar of your browser.
Note:The default access address varies depending on the actual situation. Please find it on the bottom label of the product.
STEP-2:
User Name and Password are required, by default both are admin in lowercase letter. Click LOGIN.
STEP-3:
You need to enter the settings page, then follow the steps illustrated.

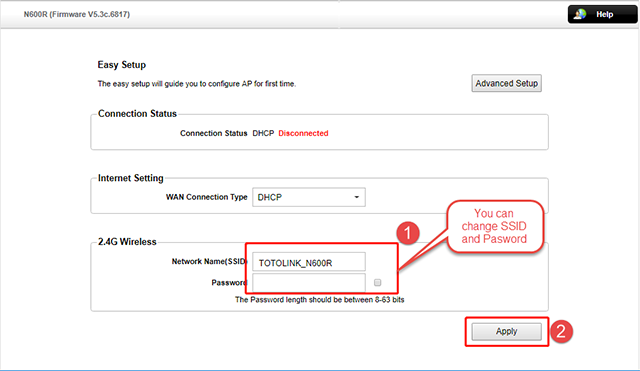

①Change SSID and Pasword ->②Click the Apply button
STEP-3:

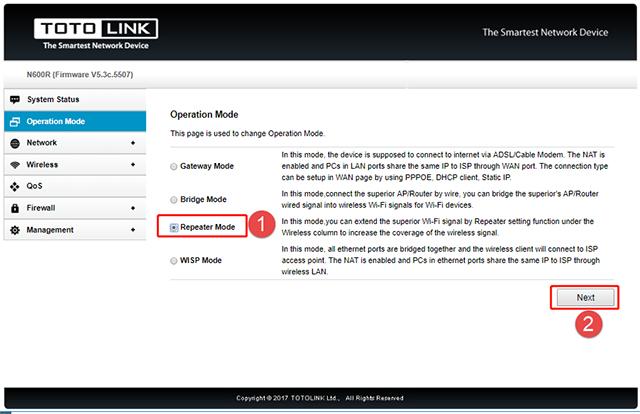

Please go to Operation Mode ->Repteater Mode，then Click Next.
STEP-4:
Please go to Wireless ->Repeater Setting page, and check which you have select.

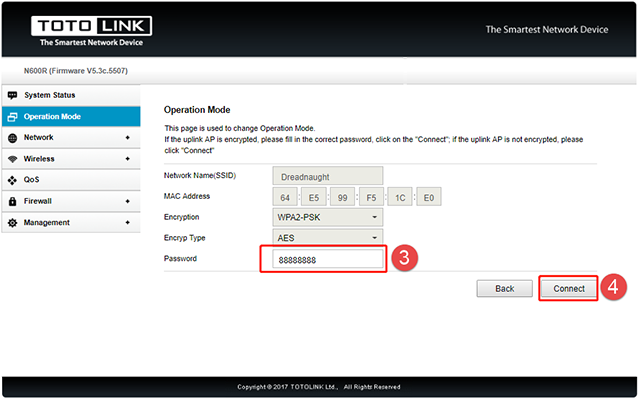

Select Scan and WIFI, then Input Key of the host router’s SSID, then Click Connect.
PS: After completing the above operation, please re-connect your SSID after 1 minute or so.if the Internet is available it means that the settings are successful. Otherwise, please re-set the settings again
