How to access A3000RU USB shared U disk video, pictures?
Application introduction
A3000RU support file sharing function, the mobile storage devices (such as U disk, mobile hard disk, etc.) connected to the router's USB interface, LAN terminal equipment can access the resources of mobile storage devices, easy file sharing.
It is suitable for: A3000RU
Diagram
Set up steps
STEP-1:
Stores the resource you want to share with others into the USB flash disk or hard drive before you plug it into the USB port of the router.
STEP-2:
2-1. Connect your computer to the router by cable or wireless, then login the router by entering http://192.168.0.1 into the address bar of your browser.
Note: The default access address varies depending on the actual situation. Please find it on the bottom label of the product.
2-2. User Name and Password are required, by default both are admin in lowercase letter. Click LOGIN.
STEP-3:

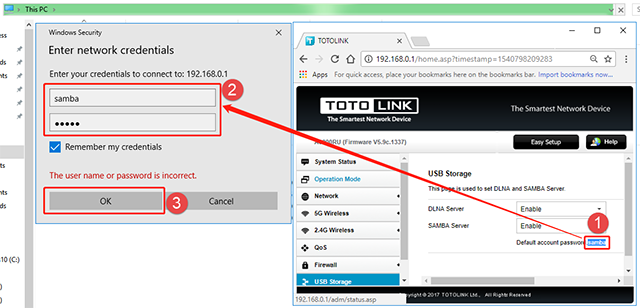

Enable the SAMBA Server. Default account password samba.
STEP-4: Access the Samba server from the client.
4-1. Open This PC and type \\192.168.0.1 in the input box. And press the Enter key
4-2. In this page will pop up a certification box, enter the default name and password that you have set before, and then click OK.

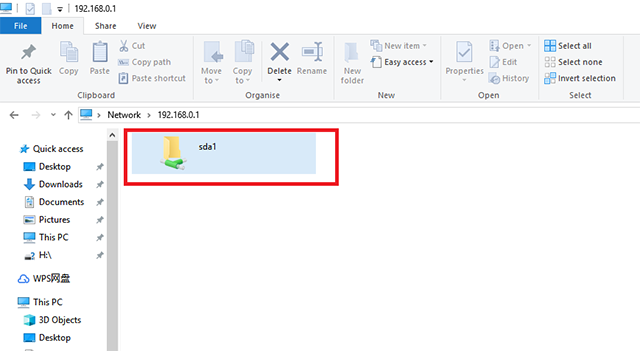

4-3. On this page, you will see the attached hard disk information. Click on this hard drive.
4-4. you can and good friends to share the resources inside the hard disk.
Notes:
If the Samba server can’t take effect immediately, please wait a few minutes.
Or restart the service by clicking stop/start button.
