A3002RU Samba server instal

How to access A3002RU USB shared U disk video, pictures?


     It is suitable for: A3002RU

Application introduction:

A3002RU support file sharing function, the mobile storage devices (such as U disk, mobile hard disk, etc.) connected to the router's USB interface, LAN terminal equipment can access the resources of mobile storage devices, easy file sharing.

Diagram


 Set up steps

STEP-1:

Stores the resource you want to share with others into the USB flash disk or hard drive before you plug it into the USB port of the router.


STEP-2:

2-1. Connect your computer to the router by cable or wireless, then login the router by entering http://192.168.0.1 into the address bar of your browser.


Note: The default access address varies depending on the actual situation. Please find it on the bottom label of the product.


2-2. User Name and Password are required, by default both are admin in lowercase letter. Click LOGIN.



STEP-3:

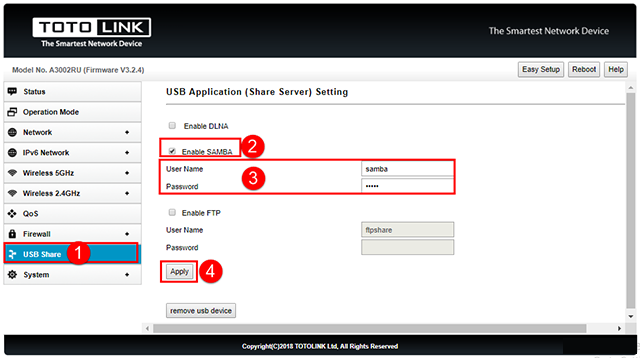

Enable the SAMBA Server. Set the SAMBA Server account password .


STEP-4: Access the Samba server from the client.

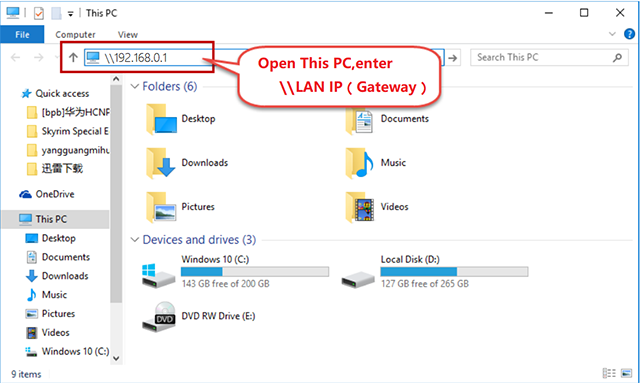

4-1. Open This PC and type \\192.168.0.1 in the input box. And press the Enter key.

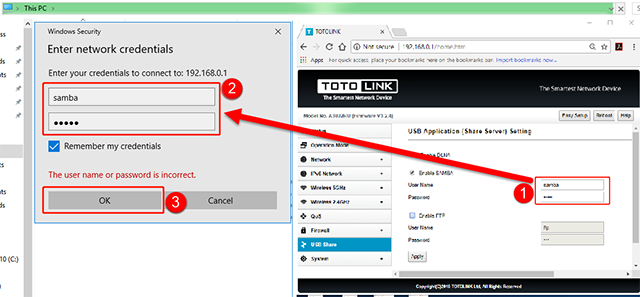

4-2. Enter the User name and password that you have set before, and then click OK.

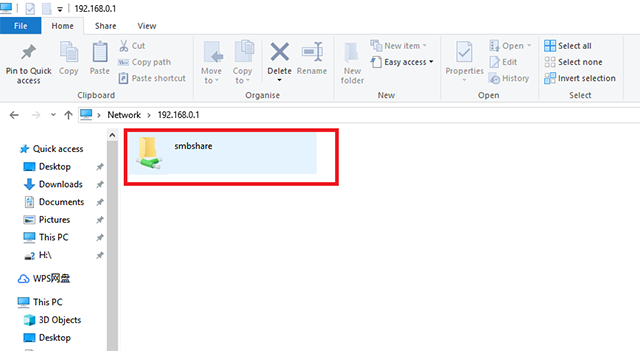

4-3. On this page, you will see the attached hard disk information. Click on this hard drive.


4-4. you can and good friends to share the resources inside the hard disk.

Notes:

If the Samba server can’t take effect immediately, please wait a few minutes. Or restart the service by clicking stop/start button.
