It is suitable for: T10 |

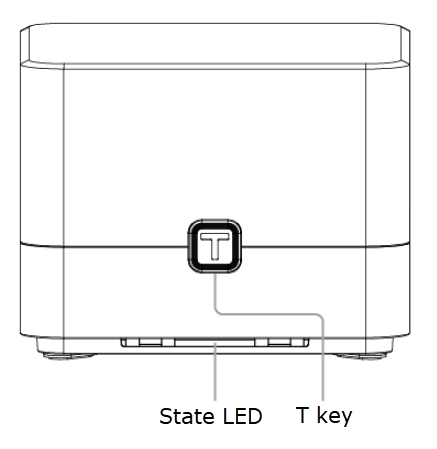

Diagram
Set up steps
STEP-1:
After the MESH network is set, if the setting is successful, the slave T10 will be in a state of steady green or orange light.

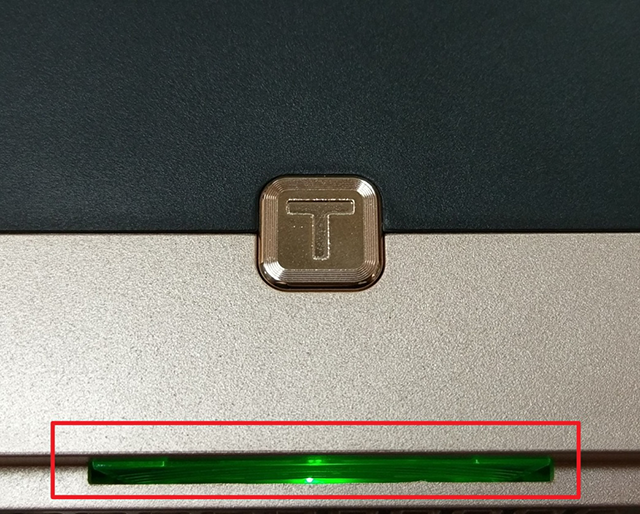

1-1. Green light indicates excellent signal quality
1-2. Orange light indicates that the signal quality is normal
Noet: In order to get a better experience, it is recommended to install the T10 to a position where the green light can be displayed.
STEP-2:
After the MESH network is set, if the setting fails, the slave T10 will be in a steady red state.

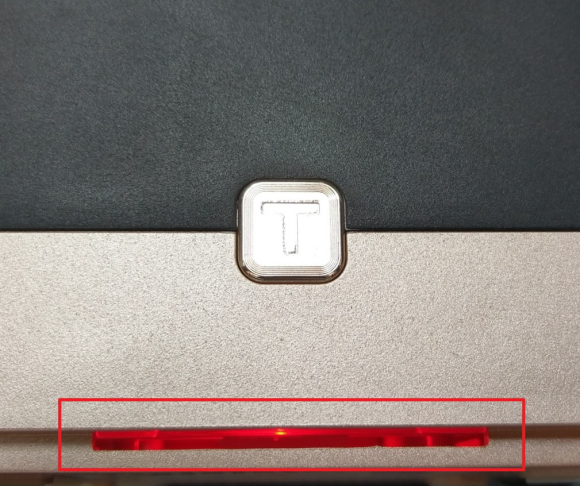

2-1. Red light indicates that MESH networking failed
Noet: It is recommended that you place the T10 next to the main T10 and try the MESH networking pairing again.
STEP-3:
The light shows the status description table：
